Wave Spring Mechanical Seal
01

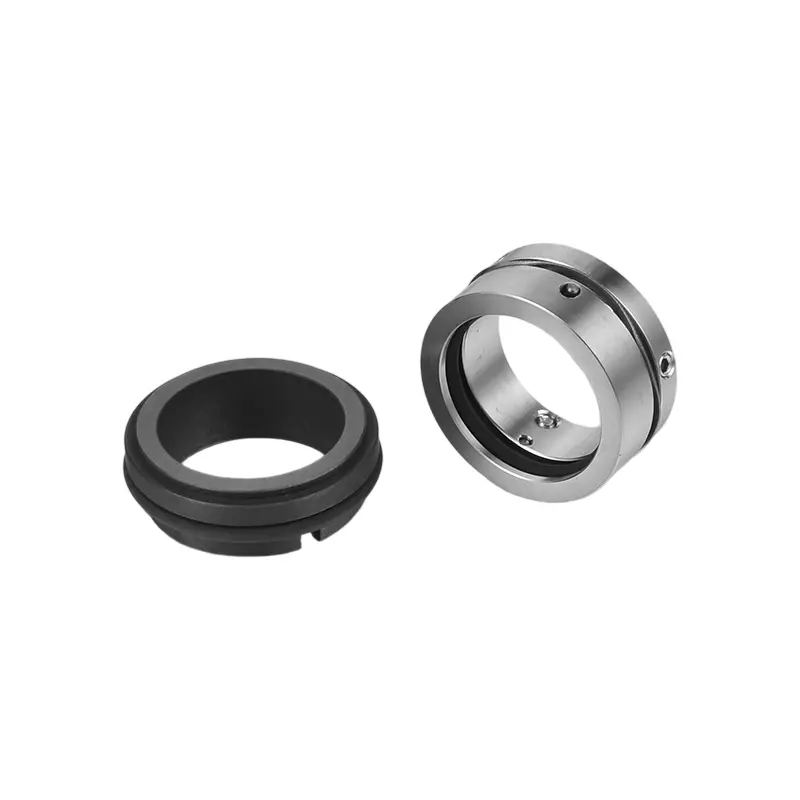

Wave Spring Seal Replace AES W02U for Omac B Series Rotary Lobe Pump
Product Description
+
This component is designed with an “O” ring mounted sealing surface with sinusoidal wave spring and very narrow cross section, and the drive of the shaft is fastened using set screws. The single wave spring design provides even closing forces around the sealing face circumference, which lead to improved pV capability, outstanding axial movement capabilities and higher sealing performance. Its monolithic steelhead design enables higher performance in abrasion resistance and high temperature applications.
It has short installation length and reduced radial clearance, which is highly suited to rotary lobe pumps and other slow shaft speed operations.
The matched stationary suits DIN24960/En12756 housings with anti-rotation provision.
It is compatible with the Mengin 8.8Kw motor and Omac B series lobe pump, such as B1, B100 and others.
It has short installation length and reduced radial clearance, which is highly suited to rotary lobe pumps and other slow shaft speed operations.
The matched stationary suits DIN24960/En12756 housings with anti-rotation provision.
It is compatible with the Mengin 8.8Kw motor and Omac B series lobe pump, such as B1, B100 and others.
Equivalent Products
+
• AESseal®: Type N-W02U
• Vulcan®: Type 1688L
• Sterling®: 280L
• Roten®: Uniten 7K
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
• Vulcan®: Type 1688L
• Sterling®: 280L
• Roten®: Uniten 7K
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
Material and Operating Range
+
Material:
• Rotary ring: SUS304/SUS316/SiC/TC
• Stationary ring: Carbon/SiC/TC
• O-ring: VITON/NBR/EPDM
• Spring and Metal Parts: SUS304/SUS316
* Customization for this part is supported, please contact us for changing parameters and materials.
Operating Range:
• Temperature: -40 ℃～200℃
• Pressure: ≤0.8MPa
• Speed: ≤18m/s
• Performance: Wear
Mediums:
• Oil
• Water
• Food
• Viscous contents

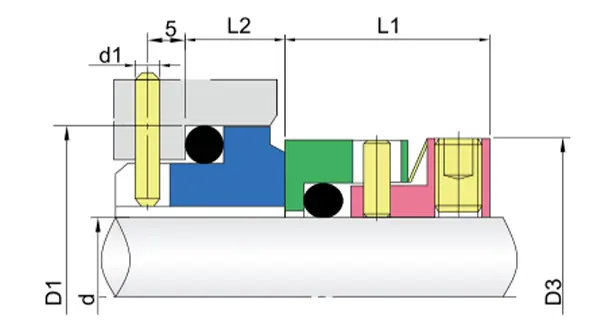

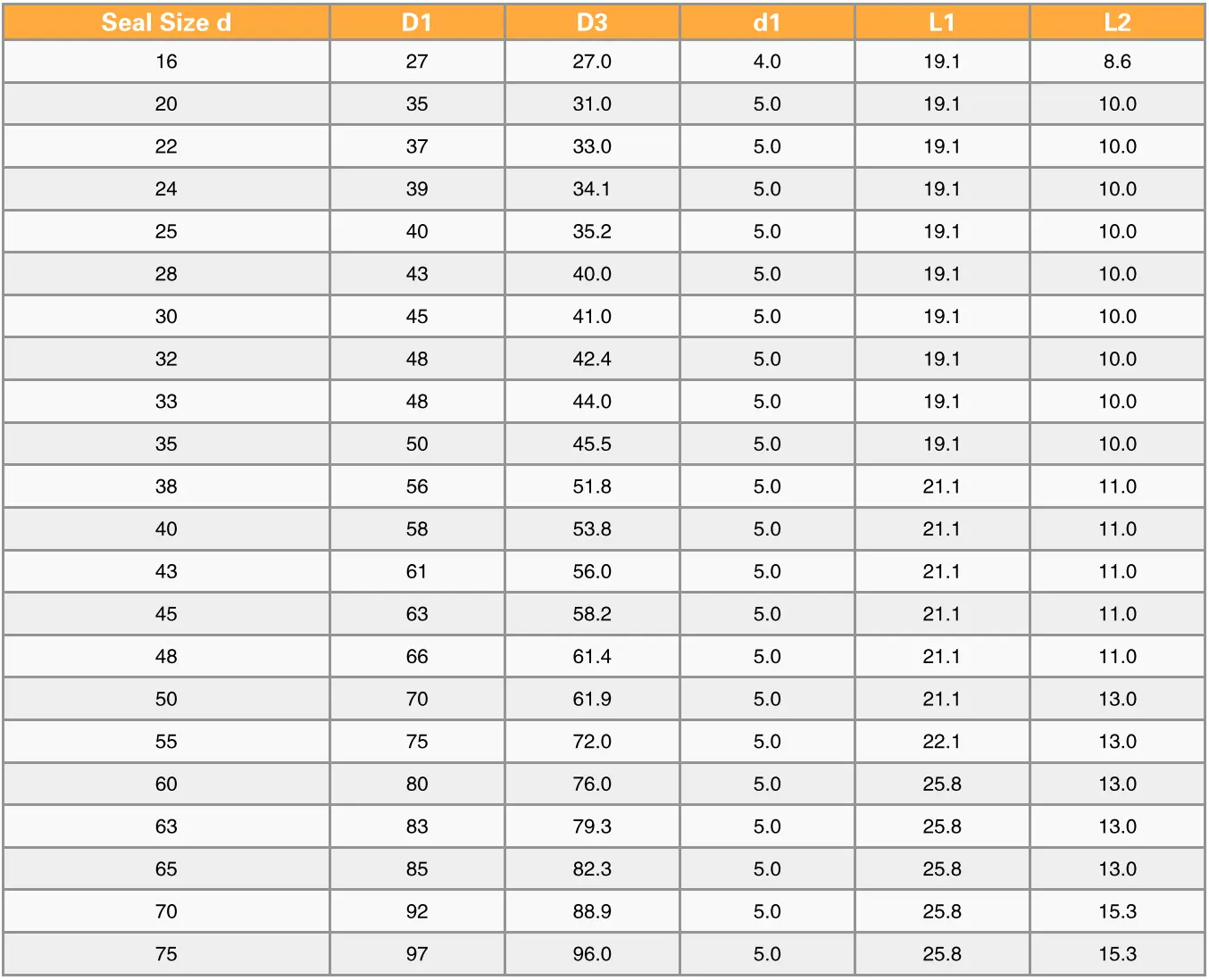

Installation Dimensions
+
description2
