Multi- Spring Mechanical Seal
01

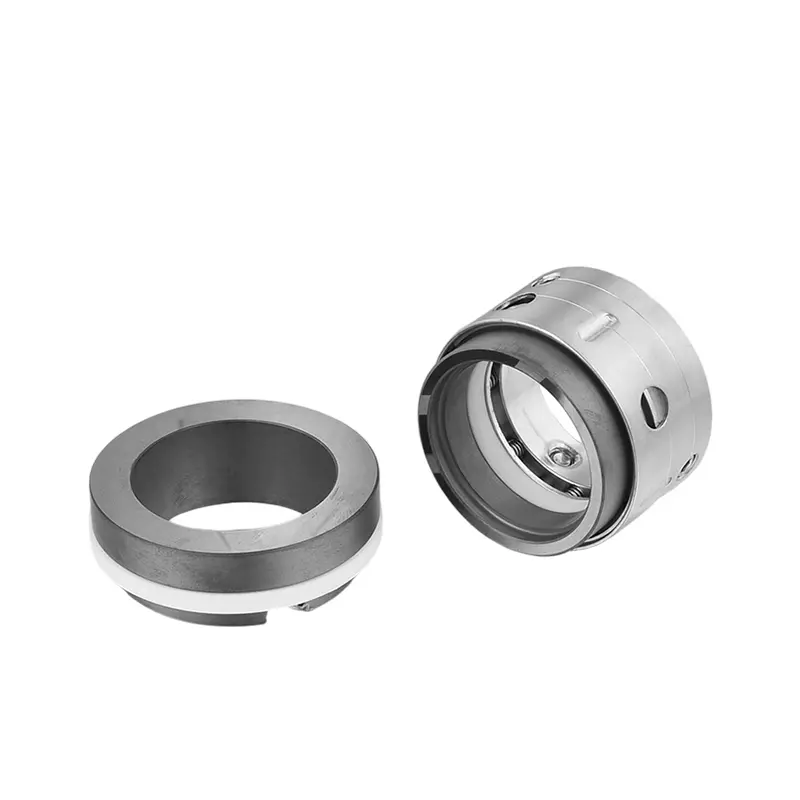

Unbalanced PTFE Wedge Seal Johncrane 59U Replacement
Product Description
+
This component is PTFE wedge-mounted, designed with multi-springs. It can rotate in both directions, and the drive of the shaft is fastened using set screws tightened with the hex key. The multi-springs and robust design provide even closing forces around the sealing face circumference, which lead to improved pV capability and higher sealing performance.
The narrow-designed radial profile is suitable for European DIN24960/En12756 metric seal chamber.
It is suited for pump or devices such as the Mitsubishi CVD-25L, Viking LVP19, Viking LVP23 and others.
The narrow-designed radial profile is suitable for European DIN24960/En12756 metric seal chamber.
It is suited for pump or devices such as the Mitsubishi CVD-25L, Viking LVP19, Viking LVP23 and others.
Equivalent Products
+
• AESseal®: M03
• Vulcan®: 1659
• JohnCrane®: 59U
• Sterling®: 259
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
• Vulcan®: 1659
• JohnCrane®: 59U
• Sterling®: 259
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
Material and Operating Range
+
Material:
• Rotary ring: Carbon/SiC/TC
• Stationary ring: 99%Ceramic/SiC/TC
• O-ring: VITON/NBR/EPDM
• Spring and Metal Parts: SUS304/SUS316
* Stationary Seat: GW BP
* Customization for this part is supported, please contact us for changing parameters and materials.
Operating Range:
• Temperature: -40 ℃～230℃
• Pressure: ≤1.5MPa
• Speed: ≤25m/s
• Performance: Wear
Mediums:
• Oil
• Water
• Sewage water
• Amorphism acid
• Alkali, salt, and other organic solvents.
• Pulp and paper

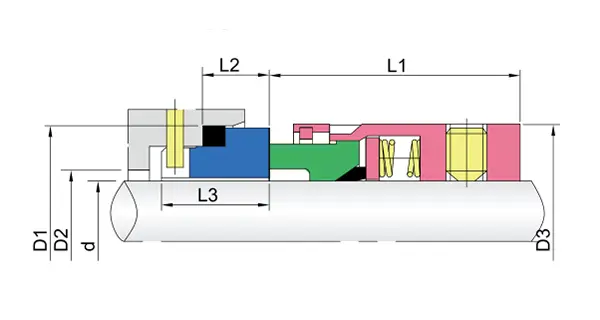

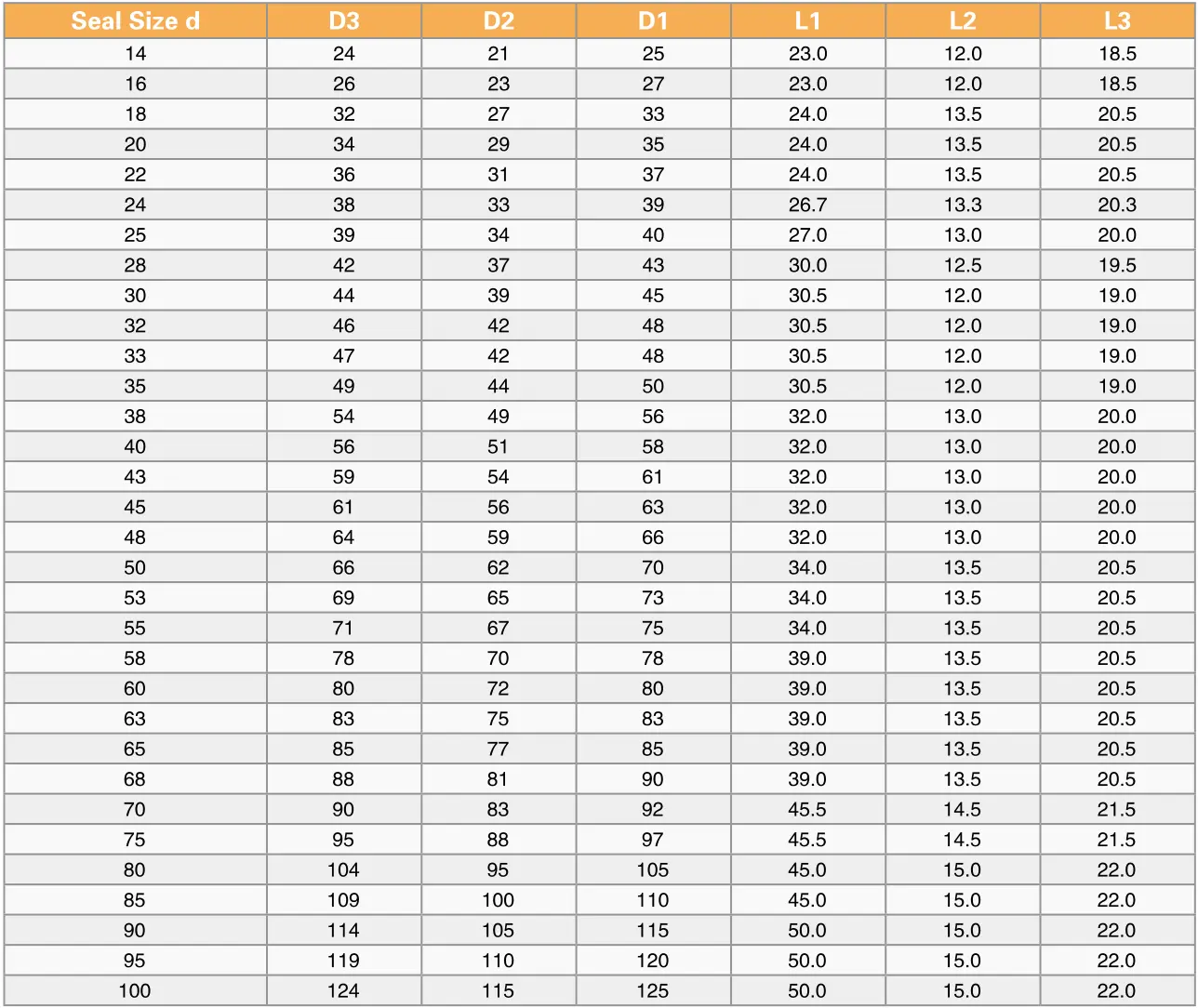

Installation Dimensions
+
description2
