Multi- Spring Mechanical Seal
01

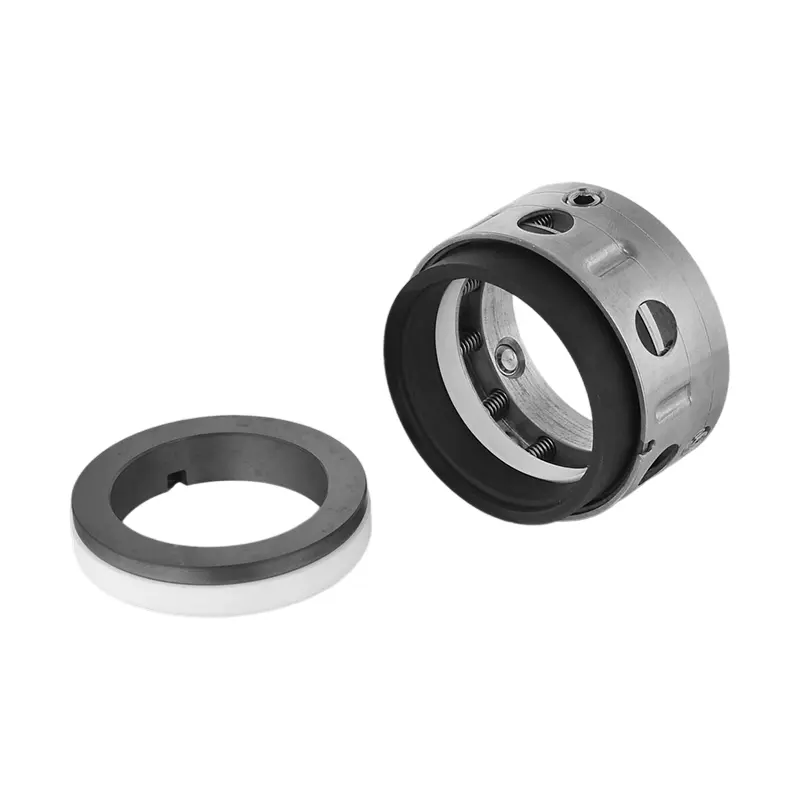

Type 9 Multi-Spring Process Pump Seal PTFE Wedge-Mounted
Product Description
+
This component is PTFE wedge-mounted, designed with multi-springs. It can rotate in both directions, and the drive of the shaft is fastened using set screws tightened with the hex key. The multi-springs and robust design provide even closing forces around the sealing face circumference, which lead to improved pV capability and higher sealing performance.
It is suited for pump or devices such as the Viking HJ 4195, Viking HL 4195, Viking KK-LL 4125 and 4724.
It is suited for pump or devices such as the Viking HJ 4195, Viking HL 4195, Viking KK-LL 4125 and 4724.
Equivalent Products
+
• AESseal®: M01
• JohnCrane®: Type 9 and 109
• Vulcan®: Type 1609
• Flexaseal®: Type 9
• Sterling®: Type 290
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
• JohnCrane®: Type 9 and 109
• Vulcan®: Type 1609
• Flexaseal®: Type 9
• Sterling®: Type 290
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
Material and Operating Range
+
Material:
• Rotary ring: Carbon/SiC/TC
• Stationary ring: 99%Ceramic/SiC/TC
• O-ring: VITON/NBR/EPDM
• Spring and Metal Parts: SUS304/SUS316
* Customization for this part is supported, please contact us for changing parameters and materials.
Operating Range:
• Temperature: -40 ℃～250℃
• Pressure: ≤2MPa
• Speed: ≤25m/s
• Performance: Wear
Mediums:
• Oil
• Water
• Amorphism acid,
• OAlkali, salt, and other chemical contents

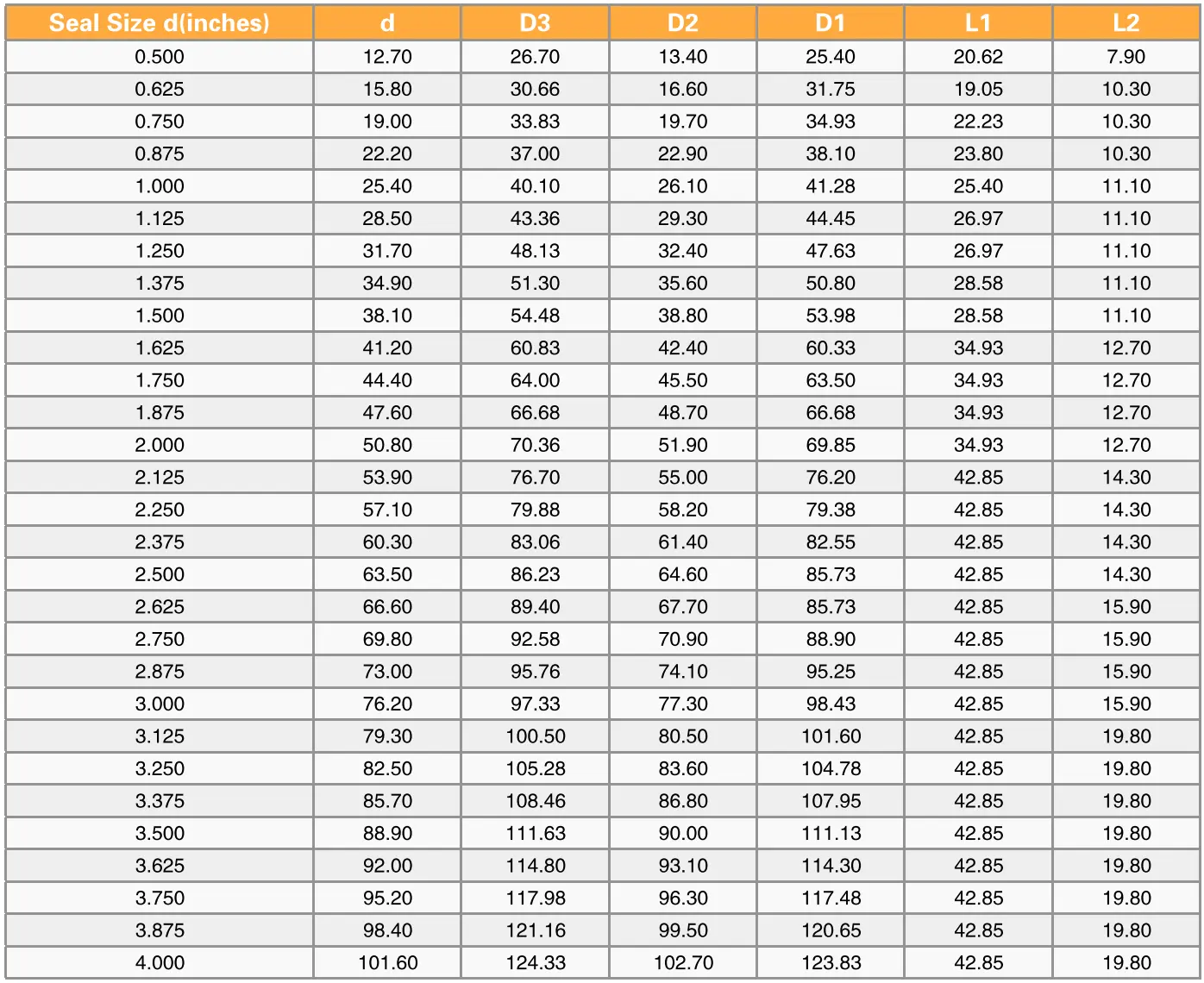

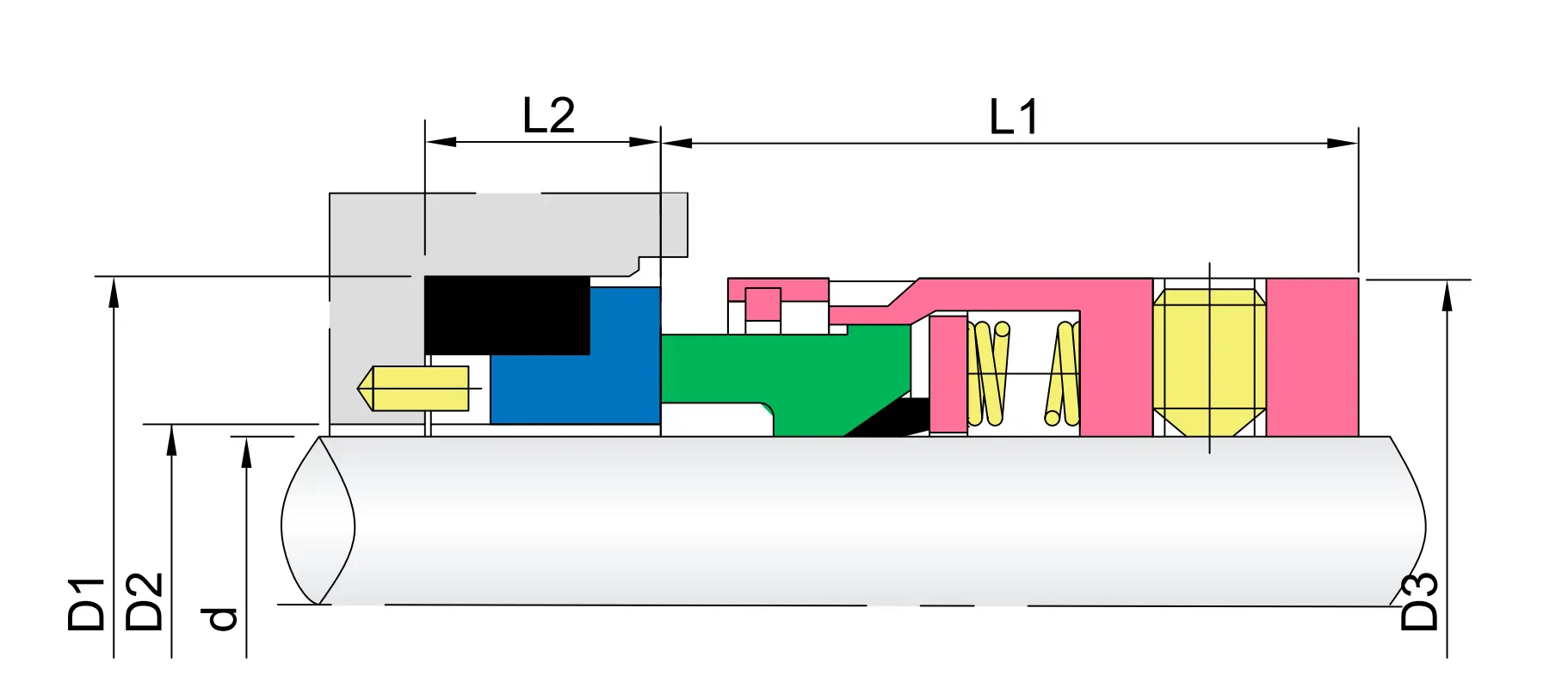

Installation Dimensions
+
description2
