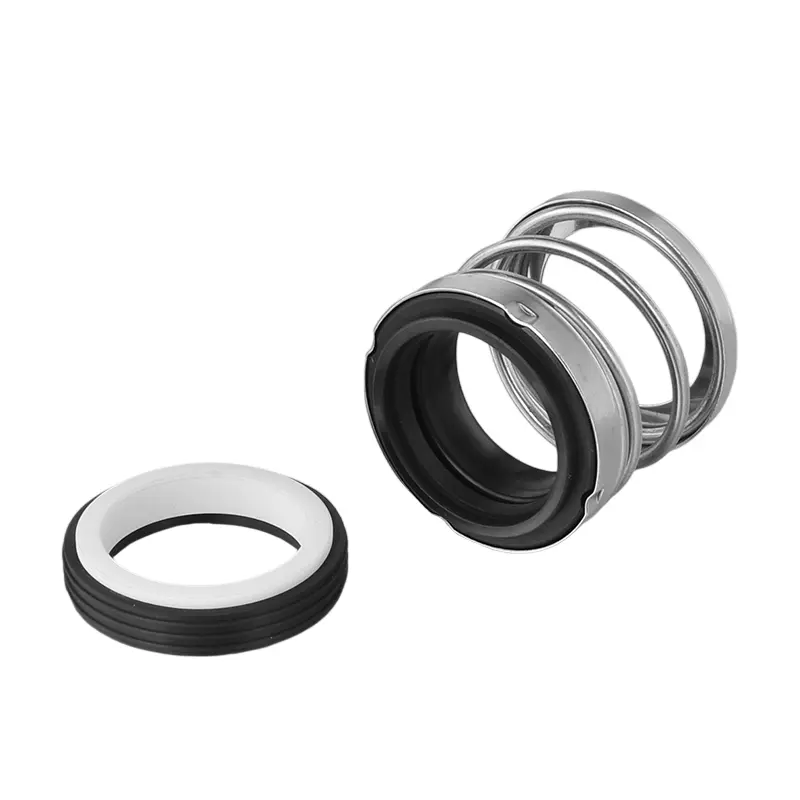

Elastomer Bellow Mechanical Seal
01
Type 24 Widely Utilized Mechanical Seal for Light to Medium Equipment
Product Description
+
This component is a resilient rubber diaphragm seal designed with self-adjusting seal head and mounted parallel spring. The drive of the shaft is achieved by a diaphragm bellows clamping the shaft tightly and providing positive drive to the seal head and sealing face. Its diaphragm seal design protects the shaft and sleeve from wear and scoring as the spring provides constant forces to the contact point, while the drive band and notches eliminate excessive stress on the bellows.
It is compatible with the ABS FR 150/100-38 CB2, ABS PIRANHA 15/2, Allweiler SLF 280 ER46 and others.
Its stationary fully suits DIN24960/En12756 L1K dimension (European metric seal chambers).
It is compatible with the ABS FR 150/100-38 CB2, ABS PIRANHA 15/2, Allweiler SLF 280 ER46 and others.
Its stationary fully suits DIN24960/En12756 L1K dimension (European metric seal chambers).
Equivalent Products
+
• AESseal®: Type N-P03
• Vulcan®: Type 24
• JohnCrane®: Type 521
• EagleBurgmann®: Type MG912
• Lidering®: Type 104/ LRB04A
• U.S. Seal®: Type VGMH
• M.T.U. ®: FP/D
• Roten®: 52/L4K
• Flowserve ®: Type 240
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
• Vulcan®: Type 24
• JohnCrane®: Type 521
• EagleBurgmann®: Type MG912
• Lidering®: Type 104/ LRB04A
• U.S. Seal®: Type VGMH
• M.T.U. ®: FP/D
• Roten®: 52/L4K
• Flowserve ®: Type 240
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
Material and Operating Range
+
Material:
• Rotary ring: Carbon/SiC/TC
• Stationary ring: 99% Ceramic /SiC/TC
• O-ring: VITON/NBR/EPDM
• Spring and Metal Parts: SUS304/SUS316
* The stationary seat is GWCT24
* Base plate can be removed if required
* Customization for this part is supported, please contact us for changing parameters and materials.
Operating Range:
• Temperature: -40 ℃～180℃
• Pressure: ≤1.0 MPa
• Speed: ≤15 m/s
• Performance: Less wear
Mediums:
• Oil
• Water
• Sewage water
• Pulp and paper
• Food
• Chemical contents

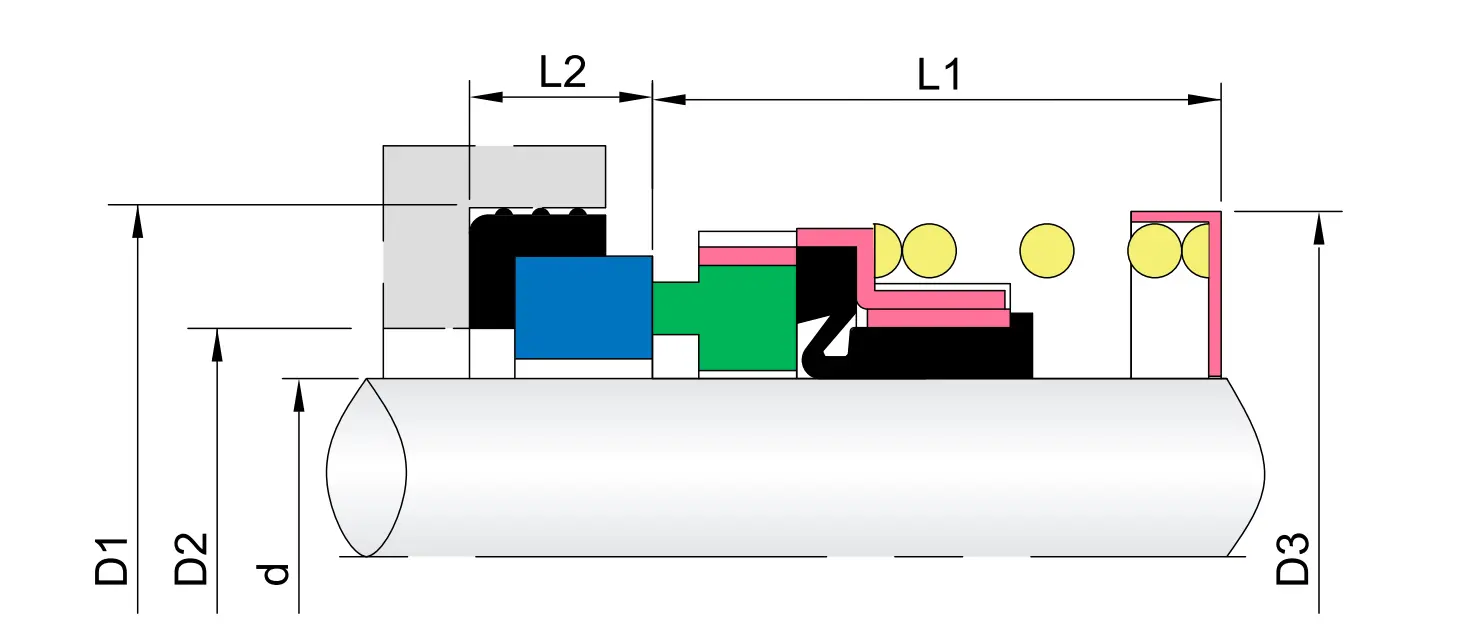

Installation Dimensions
+
description2
