Sinusoidal Wave Spring Seal for Alfa Laval Lobe Rotor Pump
Product Description
+

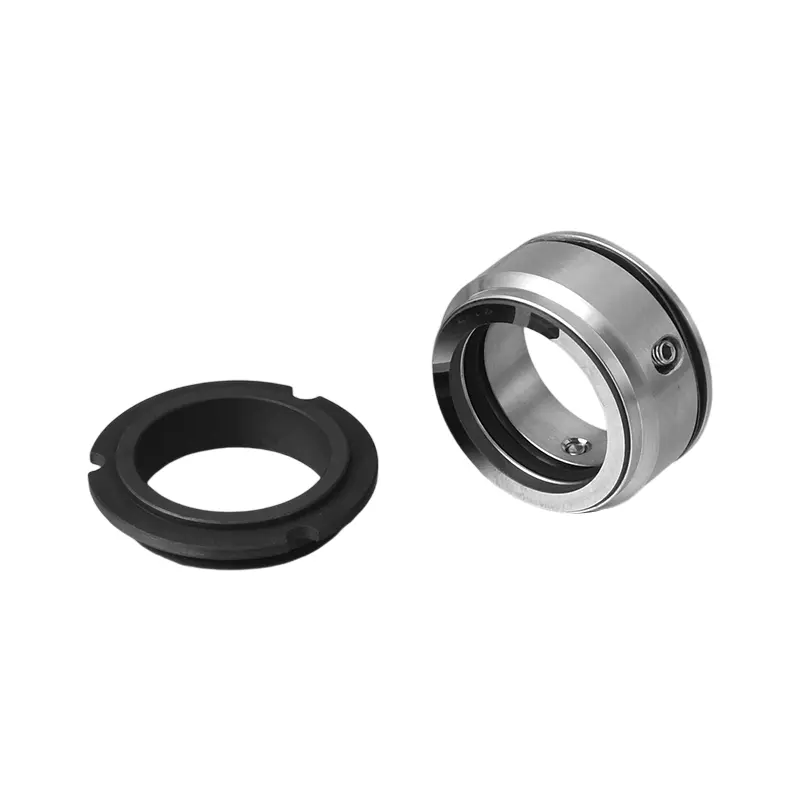

This component is designed with an “O” ring mounted sealing surface with sinusoidal wave spring. The drive of the shaft is fastened using set screws. The wave spring design provides even closing forces around the sealing face circumference, which lead to improved pV capability, outstanding axial movement capabilities and higher sealing performance. Its monolithic steelhead design enables higher performance in abrasion resistance and high temperature applications.
It has short installation length and reduced radial clearance, which is highly suited to rotary lobe pumps and other slow shaft speed operations.
It is compatible with the Alfa Laval® pump model includes the following pump ranges: "LKPL", "NMOG", "SR" and "SRU" range models when fitted with "R90" single seals. Each pump requires two identical seals, one for each shaft.
It has short installation length and reduced radial clearance, which is highly suited to rotary lobe pumps and other slow shaft speed operations.
It is compatible with the Alfa Laval® pump model includes the following pump ranges: "LKPL", "NMOG", "SR" and "SRU" range models when fitted with "R90" single seals. Each pump requires two identical seals, one for each shaft.
Equivalent Products
+
• AESseal®: Type N-W03SU
• Vulcan®: Type 1682
• Sterling®: 282
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
• Vulcan®: Type 1682
• Sterling®: 282
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
Material and Operating Range
+
Material:
• Rotary ring: SUS304/SUS316/SiC/TC
• Stationary ring: Carbon/SiC/TC
• O-ring: VITON/NBR/EPDM
• Spring and Metal Parts: SUS304/SUS316
* Customization for this part is supported, please contact us for changing parameters and materials.
Operating Range:
• Temperature: -40 ℃～200℃
• Pressure: ≤0.8MPa
• Speed: ≤18m/s
• Performance: Wear
Mediums:
• Oil
• Water
• Food
• Viscous contents

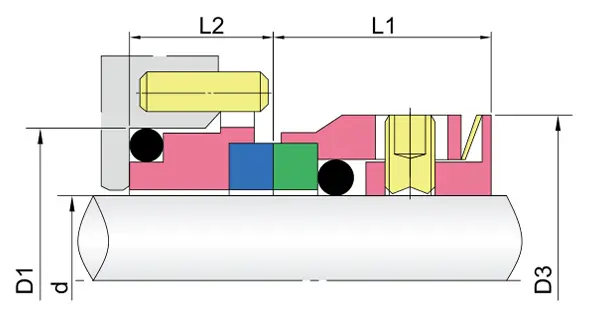

Installation Dimensions
+
| PUMP ref: | Seal Size | D1 | D3 | L1 | L2 |
| SR1 | 20 | 30.0 | 32.4 | 20.0 | 10.7 |
| SR2 | 30 | 41.3 | 44.0 | 21.4 | 10.9 |
| SR3 | 35 | 47.0 | 50.8 | 22.0 | 12.2 |
| SR4 | 45 | 58.3 | 62.4 | 22.9 | 11.6 |
| SR5 | 55 | 69.6 | 76.0 | 29.3 | 13.0 |
| SR6 | 75 | 92.2 | 99.2 | 31.1 | 14.5 |
