Single-Spring Mechanical Seals
01

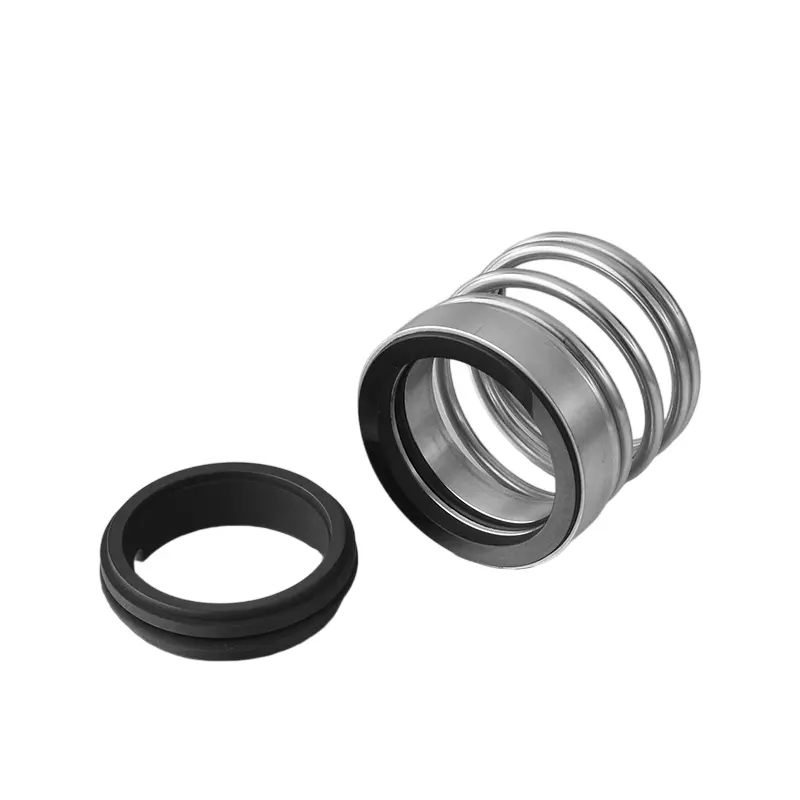

Single Spring Seal Parts Vulcan 95 for Allweiler Marine Pump
Product Description
+
This component is robust. It is designed with an “O” ring mounted sealing surface in a narrow cross-section stainless steel head. The sealing drive is provided parallel springs clamp tightly to a step or tab on the equipment shaft.
It is suited for pump such as Allweiler 3 USHN 280R-46 D6-W12, Allweiler SNS 440/R46, Allweiler SNS 660-46 and 46 others.
It is suited for pump such as Allweiler 3 USHN 280R-46 D6-W12, Allweiler SNS 440/R46, Allweiler SNS 660-46 and 46 others.
Equivalent Products
+
• AESseal®: N- P08U
• John Crane®: R00x
• Vulcan®: Type 95
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
• John Crane®: R00x
• Vulcan®: Type 95
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
Material and Operating Range
+
Material:
• Rotary ring: SiC/TC
• Stationary ring: Carbon/SiC/TC
• O-ring: VITON/NBR/EPDM
• Spring and Metal Parts: SUS304/SUS316
* Customization for this part is supported, please contact us for changing parameters and materials.
Operating Range:
• Temperature: -50 ℃～200℃
• Pressure: ≤1.0MPa
• Speed: ≤20m/s
• Performance: Wear
Mediums:
• Oil
• Water
• Seawater
• High solids medias

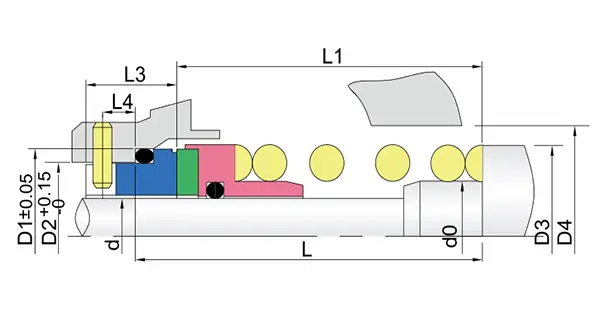

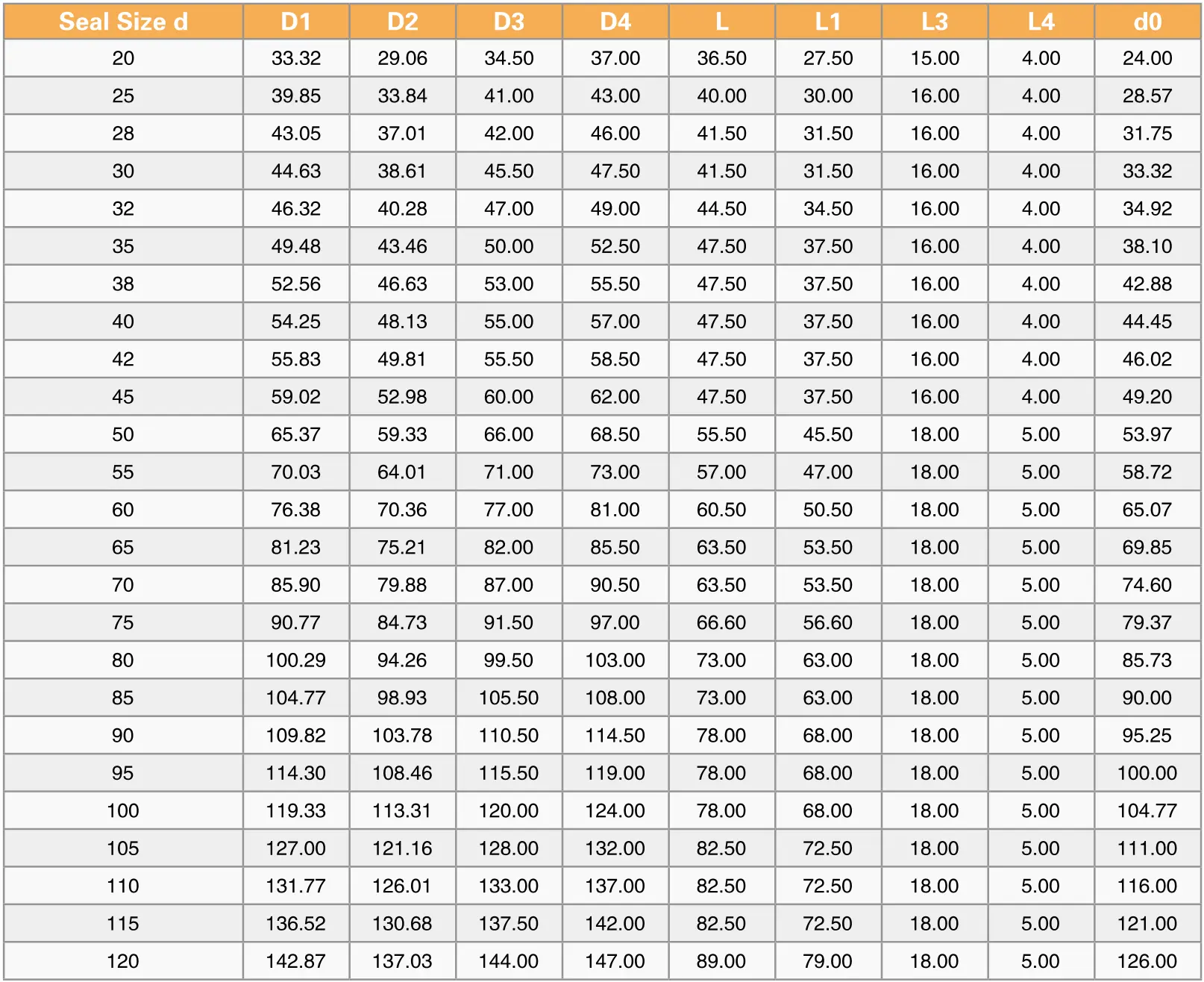

Installation Dimensions
+
description2
