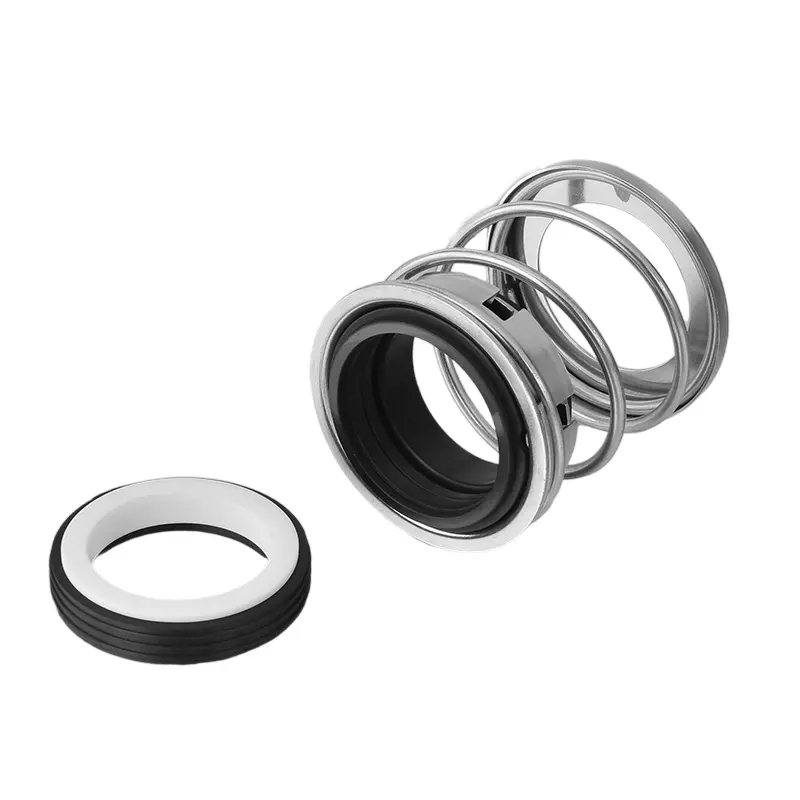

Single Spring Rubber Bellow Seal 12mm-75mm Replace John Crane Type 2

Model: GW 2

Features:

•  Elastomer bellows rotating

•  Unbalanced

•  Non-pusher type

•  Bi-directional

•  Parallel spring

•  Narrow profile

This component is a widely utilized mechanical seal type suitable for a diverse range of service conditions from water and steam to chemicals and corrosive materials. It is capable for longtime service from medium to heavy duties ideally applied in the pulp and paper, petrochemical, food processing, wastewater treatment, chemical processing and power generation industries.

    Contact us

    DETAILS & SPECIFICATIONS

    Product Description

    +
    This component is a resilient rubber diaphragm seal designed with self-adjusting seal head and outside-mounted parallel spring. The drive of the shaft is achieved by a diaphragm bellows clamping the shaft tightly and providing positive drive to the seal head and sealing face. Its diaphragm seal design protects the shaft and sleeve from wear and scoring as the spring provides constant forces to the contact point, while the drive band and notches eliminate excessive stress on the bellows.
    It is available in metric and inch sizes and follows the standard EN 12756, compatible with the A-C Pump 2-1/2X2 SLH, A-C Pump 3X2 MM-2, A-C Pump 3X2-1/2 SLH and others.
    Its stationary suits common USA market imperial extended-length seal chambers.

    Equivalent Products

    +
    • AESseal®: Type N-P04U
    • Vulcan®: Type A4
    • JohnCrane®: Type 2 (USA)
    • Flowserve Pac. seal®: Type 52
    • Flexaseal®: Type 2
    • U.S. Seal®: Type D

    Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.

    Material and Operating Range

    +

    Material:
    • Rotary ring: Carbon/SiC/TC
    • Stationary ring: 99% Ceramic /SiC/TC
    • O-ring: VITON/NBR/EPDM
    • Spring and Metal Parts: SUS304/SUS316

    * The stationary seat is GWT11
    * Customization for this part is supported, please contact us for changing parameters and materials.


    Operating Range:
    • Temperature: -40 ℃～180℃
    • Pressure: ≤2.5 MPa
    • Speed: ≤18 m/s
    • Performance: Less wear


    Mediums:
    • Oil
    • Water
    • Sewage water
    • Pulp and paper
    • Food
    • Chemical contents

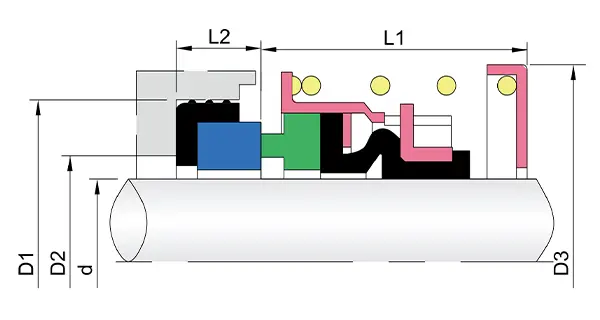

    Installation Dimensions

    +
    GW2
    Inches Size metric size D1 D2 D3 L1 L2
    0.500 12 25.40 19.05 30.14 20.64 7.93
    　 14 31.75 23.80 33.32 22.23 10.28
    0.625 16 31.75 23.80 33.32 22.23 10.28
    0.750 18 34.93 26.98 36.50 22.23 10.28
    　 20 38.10 30.15 39.67 23.80 10.28
    0.875 22 38.10 30.15 39.67 23.80 10.28
    　 24 41.28 33.32 45.50 25.40 11.10
    1.000 25 41.28 33.32 45.50 25.40 11.10
    1.125 28 44.44 36.50 48.50 26.97 11.10
    　 30 47.63 37.90 52.37 26.97 11.10
    1.250 32 47.63 37.90 52.37 26.97 11.10
    　 33 50.80 42.84 56.00 28.58 11.00
    1.375 35 50.80 42.84 56.00 28.58 11.00
    1.500 38 53.98 46.05 59.20 28.58 11.00
    1.625 40 60.38 50.80 67.00 34.93 12.70
    　 43 63.50 53.97 69.85 34.93 12.70
    1.750 45 63.50 53.97 69.85 34.93 12.70
    1.875 48 66.68 57.15 73.03 38.10 12.70
    　 48 69.85 60.32 73.03 38.10 12.70
    2.000 50 69.85 60.32 76.20 38.10 12.70
    2.125 53 76.20 60.32 82.55 42.85 14.28
    2.250 55 79.38 61.90 85.73 42.85 14.28
    2.375 60 82.55 67.39 88.90 46.02 14.28
    2.500 63 85.73 68.25 92.08 46.02 14.28
    2.625 65 85.73 71.24 98.43 49.20 15.90
    2.750 70 88.90 74.60 101.60 49.20 15.90
    2.875 73 95.25 77.77 104.78 52.37 15.90
    3.000 75 98.43 80.95 107.95 52.37 15.90
    3.125 - 101.60 - 101.60 55.55 19.84
    3.250 - 104.78 - 104.80 55.55 19.84
    3.375 - 107.95 - 107.90 55.55 19.84
    3.500 - 111.13 - 111.00 55.55 19.84
    3.625 - 114.30 - 114.30 58.73 19.84
    3.750 - 117.48 - 117.48 58.73 19.84
    3.875 - 120.65 - 120.65 58.73 19.84
    4.000 - 123.83 - 123.80 58.73 19.84
