Single-Spring Mechanical Seals
01

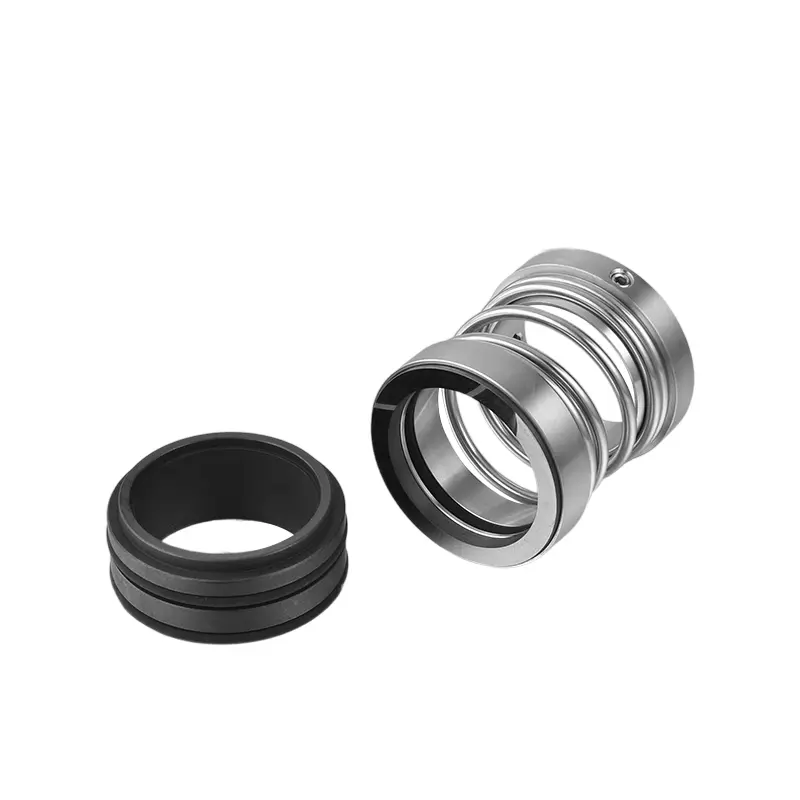

Single Spring Mechanical Seals-GW 980
Product Description
+
This component is robust. It is designed with an “O” ring mounted sealing surface in a narrow cross-section stainless steel head and a bi-elastomer stationary. The seal drive is provided by the set-screw mounted drive collar.
Type 98 is for mounting into Asian seal chambers.
Type 98 is for mounting into Asian seal chambers.
Equivalent Products
+
• AESseal®: N-P080
• Vulcan®: Type 98
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
• Vulcan®: Type 98
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
Material and Operating Range
+
Material:
• Rotary ring: SiC/TC
• Stationary ring: Carbon/SiC/TC
• O-ring: VITON/NBR/EPDM
• Spring and Metal Parts: SUS304/SUS316
* Customization for this part is supported, please contact us for changing parameters and materials.
Operating Range:
• Temperature: -30 ℃～200℃
• Pressure: ≤1.0MPa
• Speed: ≤20m/s
• Performance: Wear
Mediums:
• Oil
• Water
• Seawater
• High solids medias

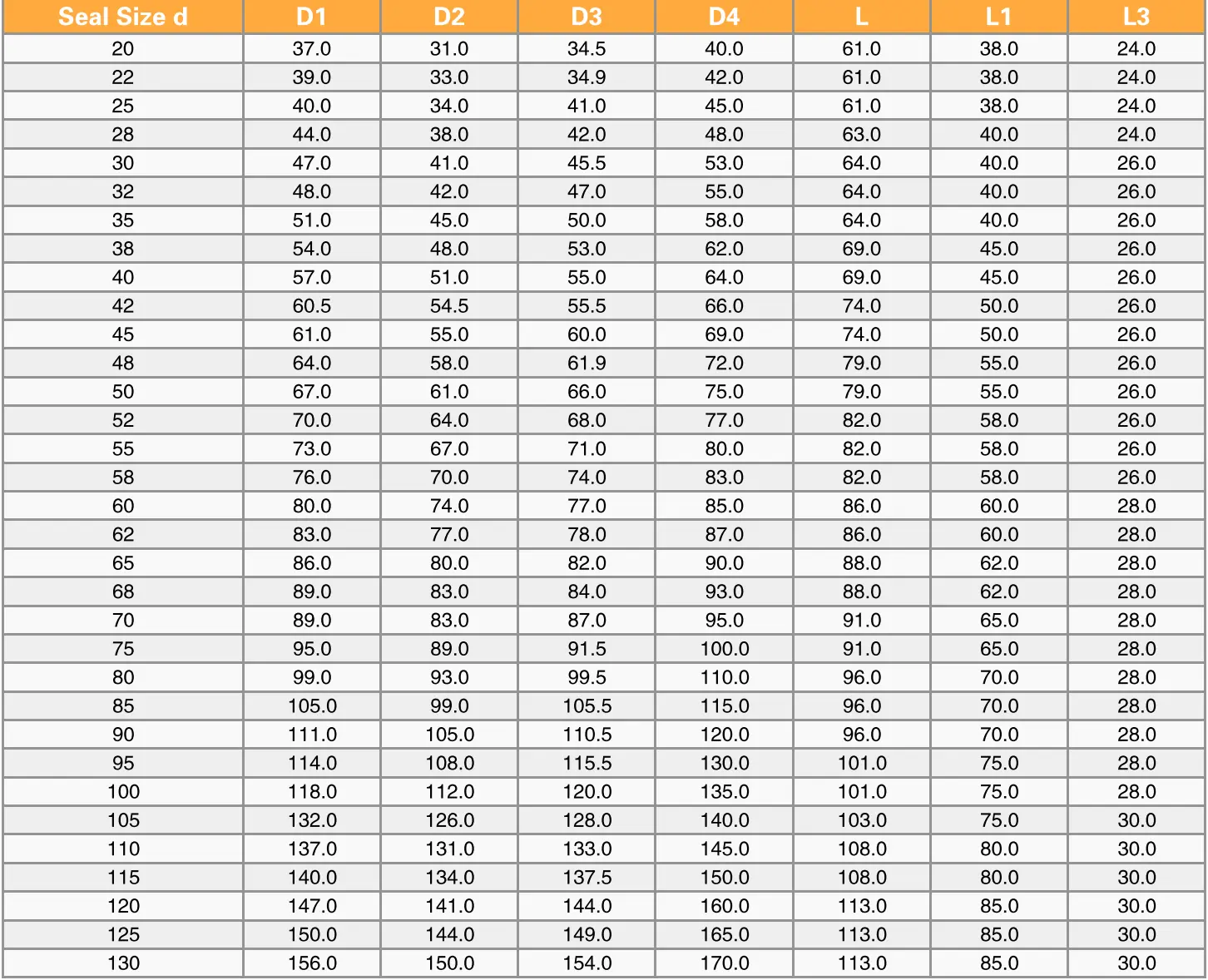

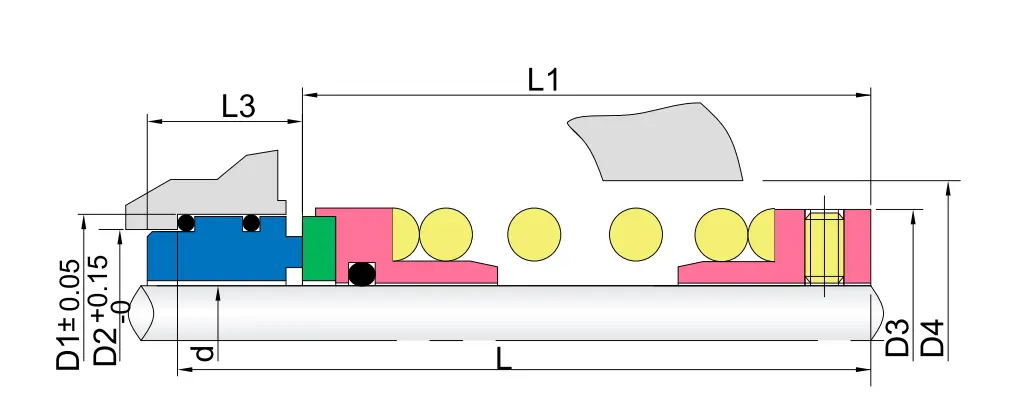

Installation Dimensions
+
description2
