Quality Control

Quality Control Methodologies

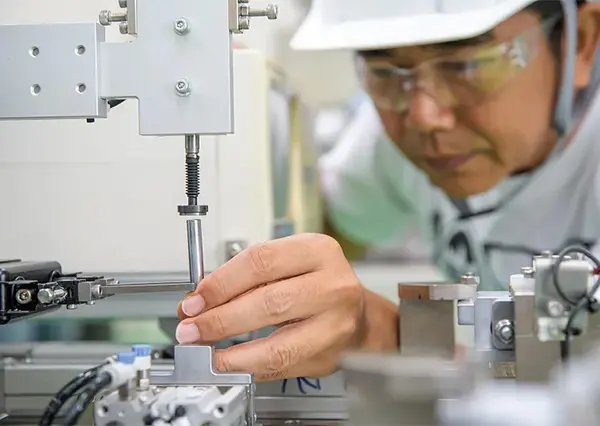

Incoming Material Inspection

Purpose: Verify raw materials and components (e.g., carbon, silicon carbide, elastomers, springs) to meet specifications.
Methods:
Chemical composition analysis (spectroscopy, XRF/XRD).
Hardness testing (Rockwell hardness tester).
Dimensional checks (micrometers, calipers).

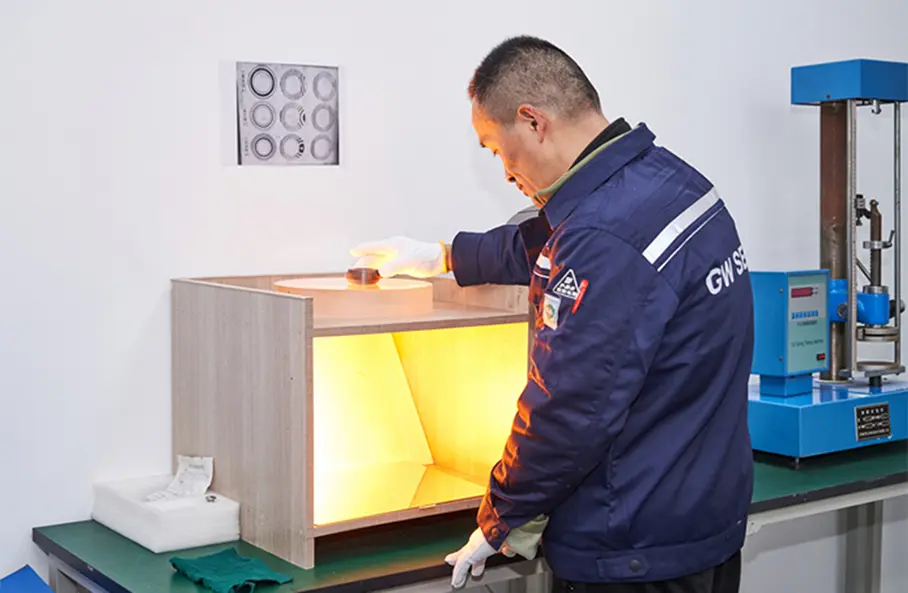

Surface flatness and roughness measurement (Optical flatness tester and profilometers).

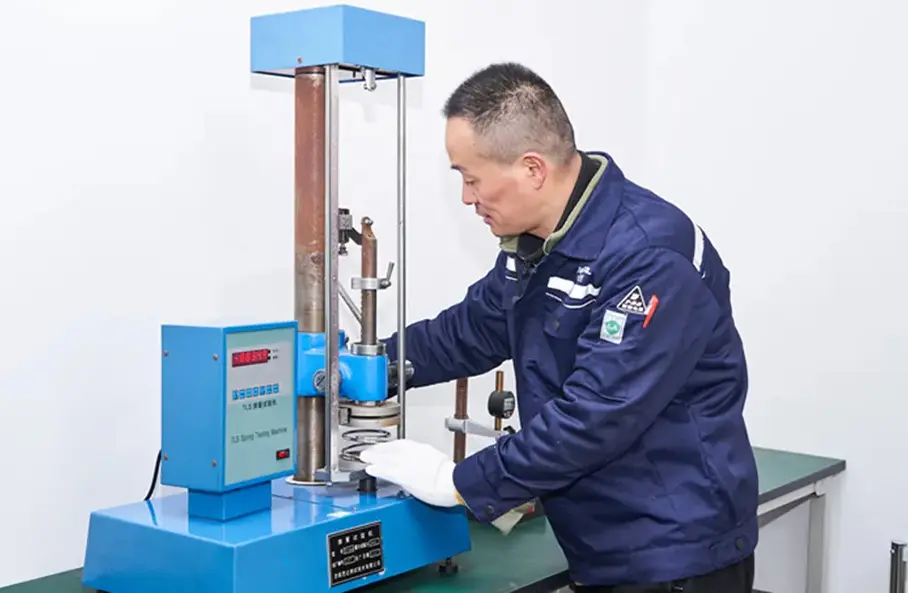

Spring testing (TLS spring testing machine)

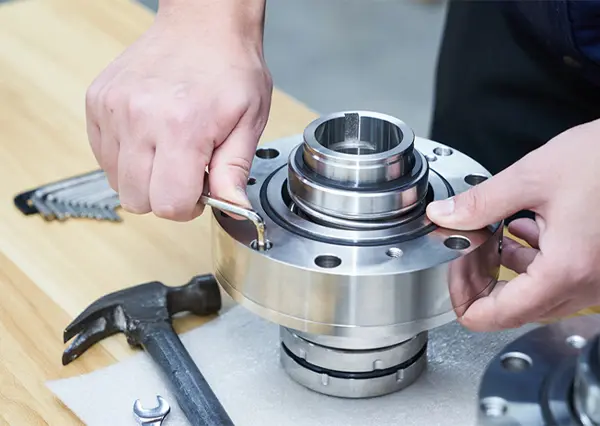

In-Process Inspection

Purpose: Monitor critical manufacturing stages (machining, assembly).
Methods:
Dimensional Accuracy:
Coordinate Measuring Machines (CMM) for critical tolerances (e.g., seal face flatness ＜ 0.0002 inches).
Optical comparators for profile verification.
Surface Integrity:
Surface roughness testers (Ra ≤ 0.2 µm for sealing faces).
Visual inspection under magnification for cracks or defects.

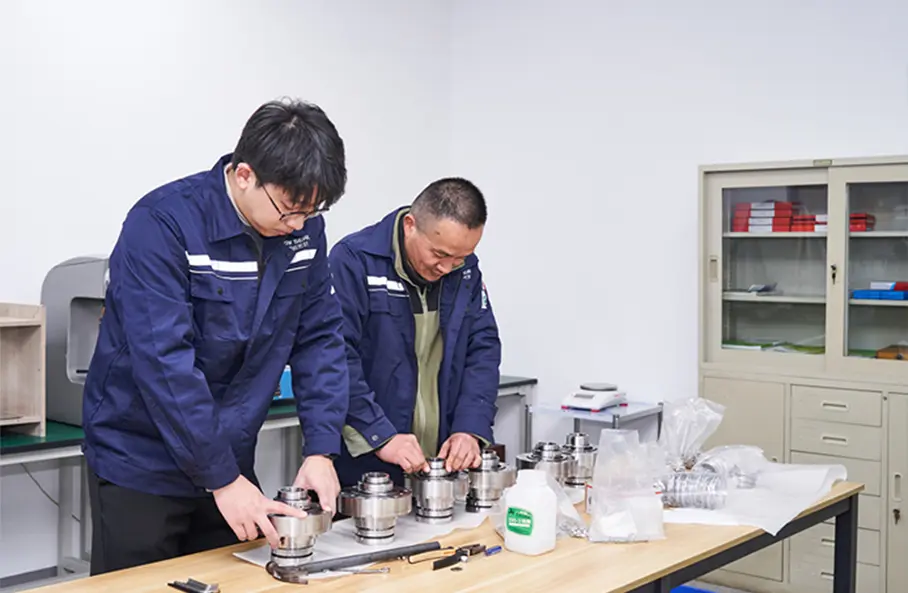

Assembly Checks:
Torque testing for fasteners.
Elastomer compression force measurement.

Final Product Testing

Purpose: Validate performance under simulated operating conditions.
Methods:

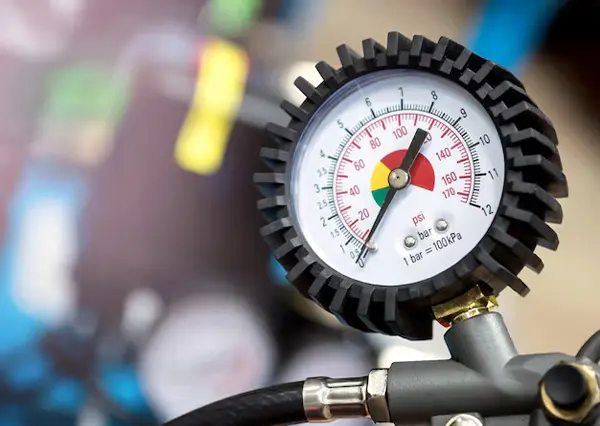

Pressure Testing:
Hydrostatic/pneumatic test rigs to verify leakage rates (e.g., ＜ 1 ml/hr per API 682 standards).
Dynamic Performance Testing:
High-speed test rigs to simulate rotational speeds (up to 5,000 RPM) and measure heat generation, vibration, and wear.
Environmental Testing:
Thermal cycling (-40°C to 300°C) to assess material stability.
Chemical resistance tests (exposure to oils, acids, or solvents).

Statistical Process Control (SPC)

Tool:Control charts (X-bar, R charts) to track critical parameters (e.g., seal face flatness, hardness).
Goal: Reduce variability and ensure process stability.

Key QC Tools & Equipment

Tool	Application
Coordinate Measuring Machine	3D dimensional analysis of seal components

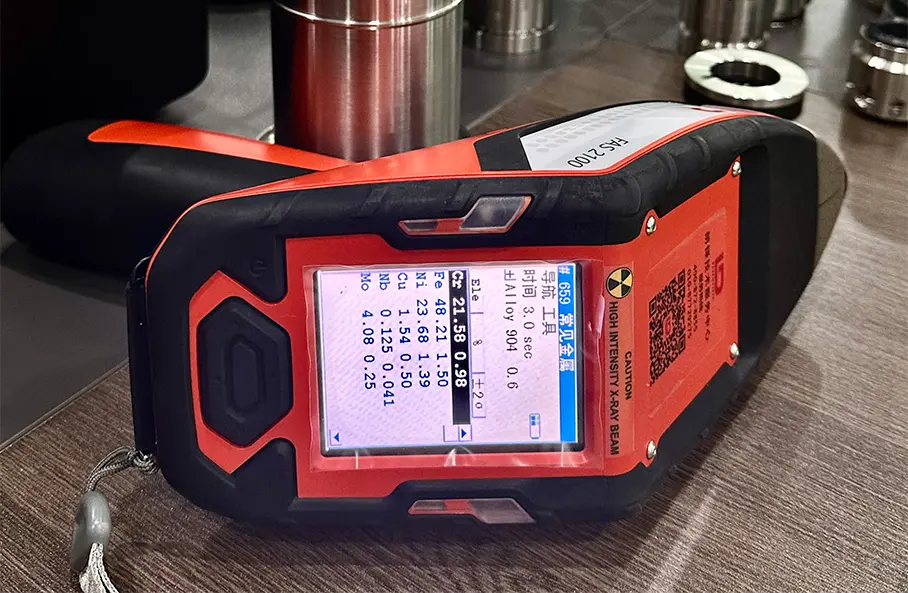

High Intensity X-Ray Beam	Chemical composition analysis
Optical Flatness Tester	Measuring flatness
Laser Micrometers	Non-contact measurement of diameters
Micrometers and Calipers	Dimensional check
Rockwell Hardness Tester	Hardness testing
TLS Spring Testing Machine	Spring testing
Torque Wrenches	Ensure proper fastener tension
Leak Testers	Quantify leakage rates (air/water-based)

Standards & Certifications

- API 682: Mandatory for seals in pumps for petroleum/chemical industries.
- ISO 9001: Framework for quality management systems.
- ASTM Standards: E.g., ASTM D1418 for elastomer compatibility.

Documentation & Traceability

- Lot Tracking: Assign unique IDs to batches for traceability.
- Inspection Reports: Record data for every production batch (e.g., pressure test results, material certs).
- Non-Conformance Reports (NCR): Document deviations and corrective actions.

Continuous Improvement

- Root Cause Analysis (RCA): Address recurring defects (e.g., seal face scoring).
- Six Sigma: Reduce defects to ≤3.4 per million opportunities.
- Customer Feedback Loop: Incorporate field failure data into QC processes.
