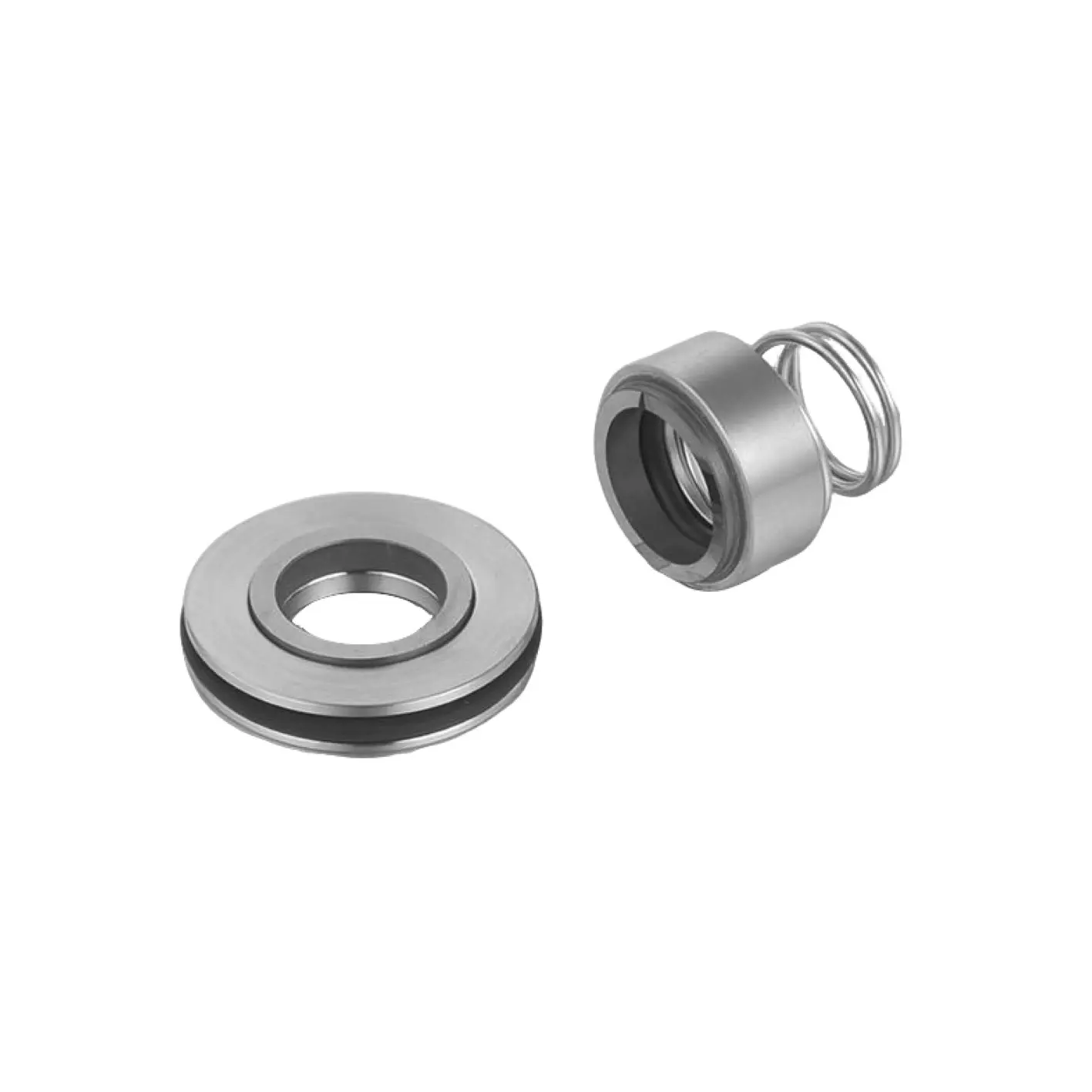

O-ring Mounted Conical Spring Mechanical Seal for Allweiler Pump
This mechanical seal is built to perform reliably in challenging fluid transfer applications. It is particularly well-suited for:
• Marine fuel and lube oil transfer systems
• Offshore platform hydraulic and process pumps
• Industrial lubrication and fuel oil handling
• Circulating and transfer pumps in ship engineering
Product Detail
+
The GW 8W is a high-performance OEM mechanical seal designed as a direct replacement for Allweiler® BAS, SPF, ZAS, and ZASV series spindle and screw pumps. Its O-ring mounted conical spring design provides consistent sealing face contact and reliable performance, even under variable pressure conditions and in media with higher viscosity.
This seal is constructed with advanced sealing face materials, including Silicon Carbide (SiC) and Tungsten Carbide (TC), offering excellent resistance to wear and abrasion, which is critical for prolonged operation in oil and fuel transfer applications. The seal's design supports efficient operation in pumps handling viscous fluids, making it a dependable choice for marine and industrial duties.
This seal is constructed with advanced sealing face materials, including Silicon Carbide (SiC) and Tungsten Carbide (TC), offering excellent resistance to wear and abrasion, which is critical for prolonged operation in oil and fuel transfer applications. The seal's design supports efficient operation in pumps handling viscous fluids, making it a dependable choice for marine and industrial duties.
Compatibility & Equivalents
+
• Target Pumps: Allweiler® BAS, SPF, ZAS, and ZASV series spindle/screw pumps
• Vulcan® Equivalent: 8W
• Other Compatible Pumps: Suitable for similar spindle or screw pumps in oil and fuel transfer service
• Vulcan® Equivalent: 8W
• Other Compatible Pumps: Suitable for similar spindle or screw pumps in oil and fuel transfer service
Material and Operating Range
+
Materials of Construction:
• Rotary Ring: Carbon, Silicon Carbide (SiC), or Tungsten Carbide (TC)
• Stationary Ring: SiC or TC
• Secondary Seals: VITON®, EPDM, or NBR
• Metallic Components: SUS304/SUS316 stainless steel
* Custom material combinations and special configurations are available upon request to meet specific application requirements.
Operating Range:
• Temperature: -20°C to +150°C
• Pressure: ≤ 2.0 MPa (20 bar)
• Speed: ≤ 15 m/s
• Applicable Media: Marine fuel oils, lubricating oils, hydraulic fluids, and other non-abrasive process fluids typical in marine and industrial transfer systems.
• Rotary Ring: Carbon, Silicon Carbide (SiC), or Tungsten Carbide (TC)
• Stationary Ring: SiC or TC
• Secondary Seals: VITON®, EPDM, or NBR
• Metallic Components: SUS304/SUS316 stainless steel
* Custom material combinations and special configurations are available upon request to meet specific application requirements.
Operating Range:
• Temperature: -20°C to +150°C
• Pressure: ≤ 2.0 MPa (20 bar)
• Speed: ≤ 15 m/s
• Applicable Media: Marine fuel oils, lubricating oils, hydraulic fluids, and other non-abrasive process fluids typical in marine and industrial transfer systems.

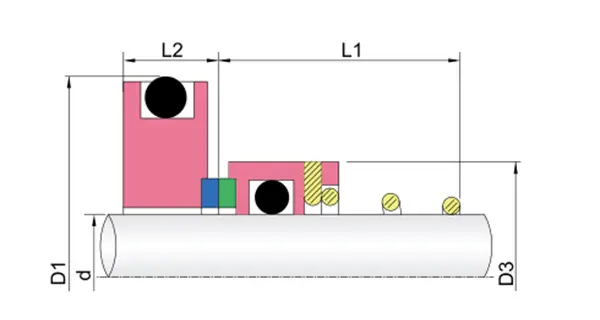

Installation Dimensions
+
Standard seal sizes: 15mm & 20mm
For other dimensions or detailed CAD drawings, please contact our technical team with your pump model and shaft specifications.
