Solution for low-temperature environments: GW 687 Metal Bellows Seal

The GW 687 metal bellows seal features a unique design and high-quality materials, making it perfect for low-temperature environments. Its fully metallic construction eliminates failures associated with dynamic elastomers, ensuring reliable operation. Performance metrics indicate that the GW 687 effectively addresses common seal challenges, such as lubrication issues and dimensional stability, prevalent in low-temperature applications. This advanced metal bellow seal is also designed to be a cost-effective alternative to the John Crane Type 680, providing exceptional performance in demanding conditions.

 The bellow seal stands out for its exceptional performance in extreme cold, operating reliably down to -75°C. Its fully metallic construction and self-cleaning mechanism prevent common failures, while the flexible design enhances durability. These features collectively ensure long-term reliability in harsh environments, significantly reducing maintenance needs and making it a highly cost-effective solution for diverse industrial applications.

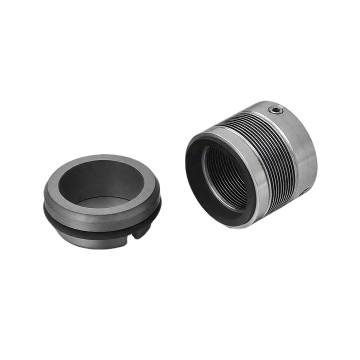

Material Properties of GW 687 Metal Bellows Seal

Low-Temperature Resilience

The GW 687 metal bellows seal excels in low-temperature environments, operating effectively in conditions as frigid as -75°C. This remarkable resilience stems from its advanced engineering and material selection. The bellows are crafted from AM350, a material known for its exceptional flexibility and strength at low temperatures. This flexibility allows the seal to maintain its integrity and performance, even when subjected to extreme thermal fluctuations.

In cold environments, traditional seals often fail due to brittleness or loss of elasticity. However, the GW 687's design mitigates these risks. Its fully metallic construction ensures that it does not suffer from the same limitations as elastomeric seals. As a result, users can expect consistent sealing performance without the need for frequent replacements or maintenance.

Corrosion Resistance

Corrosion poses a significant challenge in many industrial applications, particularly in cold environments where moisture can exacerbate the issue. The GW 687 metal bellows seal addresses this concern with its robust materials. The rotary and stationary rings are available in high-quality options such as silicon carbide and tungsten carbide, both of which offer superior resistance to corrosive substances.

Additionally, the bellows' AM350 material provides corrosion resistance comparable to Alloy-20. This characteristic is crucial for industries dealing with aggressive chemicals or harsh environments. The GW 687's design minimizes the risk of corrosion-related failures, ensuring reliable operation over extended periods. Users can trust that this metal bellows seal will perform consistently, even when exposed to challenging conditions.

Design Advantages of GW 687 Metal Bellows Seal

Flexible Structure

The GW 687 metal bellows seal features a flexible structure that enhances its performance in cold environments. This flexibility allows the seal to adapt to thermal expansions and contractions without compromising its integrity. The edge-welded design of the bellows provides a robust yet pliable mechanism, enabling it to absorb vibrations and misalignments that often occur in industrial applications.

Tip: The flexibility of the GW 687 ensures that it can maintain a tight seal even under challenging conditions, reducing the risk of leaks.

Enhanced Sealing Mechanism

The GW 687 incorporates an enhanced sealing mechanism that sets it apart from traditional seals. Its unique design minimizes the chances of leakage, even in extreme temperatures. The metal bellows seal operates with a self-cleaning function, which prevents clogging and maintains consistent performance. This feature eliminates the need for auxiliary flushing systems, making it a cost-effective solution for various industries.

Additionally, the GW 687's design compensates for shaft misalignment and thermal movement. This adaptability ensures stable operation, further enhancing its reliability in demanding environments. Users can trust that the GW 687 will deliver exceptional sealing performance, making it an ideal choice for applications requiring a durable and efficient sealing solution.

Performance Metrics of GW 687 Metal Bellows Seal

Leakage Prevention

Leakage prevention is a critical performance metric for any sealing solution, especially in cold environments. The GW 687 metal bellows seal excels in this area due to its fully metallic construction. This design eliminates the failures commonly associated with dynamic elastomers, enhancing durability in low temperatures.

Several factors contribute to the GW 687's effectiveness in preventing leaks:

• The superior corrosion resistance of the materials used ensures that the seal remains intact even when exposed to harsh chemicals.
• The design effectively distributes operational stress, which is crucial for maintaining performance under cyclic flexing.
• A self-cleaning feature helps prevent clogging, ensuring consistent operation without the need for auxiliary systems.
• The ability to maintain consistent face loading is vital for stability in cold environments, compensating for thermal movement and shaft misalignment.

These features work together to create a reliable sealing solution that minimizes the risk of leakage, making the GW 687 an ideal choice for industries that cannot afford downtime due to seal failures.

Longevity in Harsh Conditions

The longevity of the GW 687 metal bellows seal in harsh conditions is another significant advantage. This seal is engineered to withstand extreme temperatures ranging from -75°C to 200°C, making it suitable for various industrial applications. Its robust design and high-quality materials contribute to its extended service life.

Key aspects that enhance the longevity of the GW 687 include:

• The fully metallic construction prevents the wear and tear that often affects traditional seals made from elastomers.
• The advanced materials used, such as AM350 for the bellows and high-grade ceramics for the rings, provide exceptional resistance to both thermal and chemical degradation.
• The design compensates for shaft misalignment and thermal movement, reducing stress on the seal and prolonging its operational life.

By addressing the common challenges faced in cold environments, the GW 687 ensures that users experience fewer maintenance issues and lower replacement costs over time. This longevity makes it a cost-effective solution for industries that rely on reliable sealing performance.

The GW 687 metal bellows seal effectively addresses the challenges of seals in cold environments. Its design includes features such as:

• A self-cleaning mechanism that prevents clogging.
• Stable face loading that accommodates shaft misalignment and thermal movement.

Choosing the GW 687 ensures reliable performance and proactive prevention of seal failures in low temperatures. This seal stands as a robust solution for various industrial applications.

FAQ

What industries benefit from the GW 687 Metal Bellows Seal?

The GW 687 serves various industries, including chemical processing, oil and gas, refinery operations, and high-viscosity pumping applications.

How does the GW 687 prevent leakage?

The GW 687 prevents leakage through its fully metallic construction, superior corrosion resistance, and self-cleaning mechanism that maintains consistent performance.

What temperature range can the GW 687 handle?

The GW 687 operates effectively in temperatures ranging from -75°C to 200°C, making it suitable for extreme cold and heat applications.
