Maximize Uptime How Premium Slurry Pump Seals Protect Against Mining Abrasion
Abrasive wear in mining slurry pumps severely impacts operational uptime and maintenance costs. Durable slurry pump seals are the primary solution for mitigating these challenges. An Australian gold mine saved over AU$2.1 million by extending pump life and reducing shutdowns with improved components. Investing in premium slurry pump seals, such as those from GW SEAL, including specialized flygt pump seals, directly protects against abrasive wear, extending equipment life and reducing operational expenses.
Key Takeaways
- Abrasive materials in mining slurries damage pumps. This causes costly downtime and repairs.
- Premium slurry pump seals use strong materials and smart designs. They protect pumps from wear and last longer.
- Using better seals saves money. It makes pumps work better and helps the environment.
The Relentless Challenge of Abrasive Wear on Slurry Pump Seals
Mining Environments: Abrasive Slurry's Impact
Mining operations constantly move abrasive, corrosive, and dense slurries. These characteristics demand careful material selection for pump components. Slurries contain various abrasive particles, including sand, gravel, ore fragments, mineral waste, quartz, and metal ores. They also include rocks, silt, and clay. These particles cause significant wear. Fine particles lead to sliding abrasion, creating smooth, polished surfaces. Coarse particles cause more damaging impact wear, resulting in faster material loss. Corrosive liquids combined with abrasive solids significantly increase material loss rates. Corrosion weakens the material matrix, making hard carbides easier to dislodge. This accelerates wear on components like the slurry pump seal. Mechanisms like erosion wear, cavitation damage, and corrosion-wear further degrade pump parts. Erosion occurs when solid particles impact flow parts at speed. Cavitation results from bubble formation and collapse. Corrosion-wear combines chemical action with mechanical wear.
Common Failure Points for Slurry Pump Seals
Abrasive conditions directly attack traditional slurry pump seals. The most common failure mode observed is "Leaks at Seals and Joints." This primarily results from "Seal and gasket wear," especially in high-pressure or abrasive environments. Such leaks reduce pumping efficiency and create contamination risks. They can also escalate into safety hazards. Routine inspections are crucial to identify early wear, corrosion, or improper installation of these components.
Financial and Operational Costs of Wear
Frequent slurry pump seal failures impose significant financial and operational burdens. Operational downtime and lost production lead to substantial revenue loss. Every hour of downtime means potential revenue loss. Breakdowns increase the frequency and cost of repairs, creating an escalating cycle of damage. Neglected pumps operate less efficiently, requiring more energy and increasing energy costs. Potential environmental cleanup costs also arise from leaks and spills of hazardous mixtures. These issues include the cost of replacement for sacrificial wet-end components, increased labor for frequent rebuilds, and lost production.

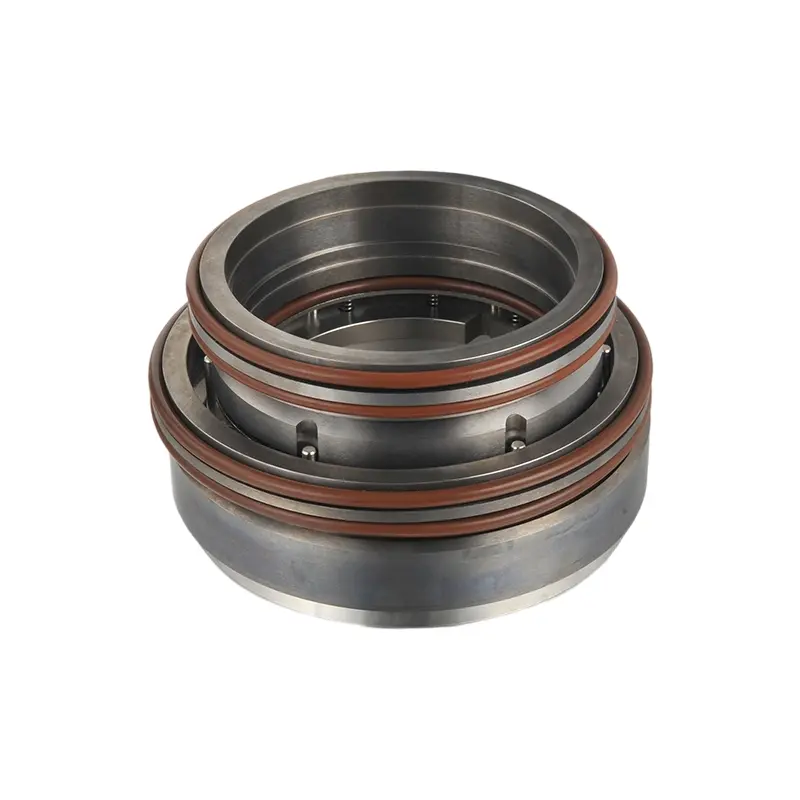

Engineering Superior Slurry Pump Seals for Durability
Advanced Materials for Abrasion-Resistant Slurry Pump Seals
Engineering superior slurry pump seals begins with selecting the right materials. These materials must withstand the constant assault of abrasive particles and corrosive fluids found in mining slurries. Manufacturers develop specialized components using advanced materials to ensure durability and longevity.
Premium seals often incorporate:
- Wear-resistant alloys
- Ceramics
- Composites
- High-chrome alloys
- Polymer coatings
Specific components utilize tailored materials for optimal performance:
| Component | Material |
|---|---|
| Inboard Faces | Ni-B Tungsten Carbide, Sintered Silicon Carbide, Graphite Loaded Silicon |
| Outboard Faces | Antimony Impregnated Carbon, Silicon Carbide |
| Elastomers | FKM (standard) |
| Springs | Alloy C276 |
| Metallurgy (wetted parts) | 316 SS with Alloy 255 or High Chromium Iron |
John Crane's slurry seals, for example, integrate wear-resistant hardware. This maintains seal face position and extends Mean Time Between Repairs (MTBR) in harsh slurry environments.
Premium heavy-duty mechanical seals enhance pump performance by preventing fluid leakage. They prove particularly effective when processing high-temperature and highly corrosive materials, contributing to overall durability. Key material properties contribute to superior abrasion resistance:
- Hard-on-Hard Combinations: Materials like Silicon Carbide (SiC) against SiC or Tungsten Carbide (TC) against TC are crucial. These materials are exceptionally hard. They withstand the grinding action of abrasive particles.
- Silicon Carbide (SiC): Often has an advantage in chemical resistance, particularly in highly corrosive environments.
- Tungsten Carbide (TC): Tends to be tougher. It resists chipping from impacts.
- Avoid Softer Faces: Materials such as Carbon/Ceramic or Carbon/Stainless Steel are unsuitable for abrasive slurries. Their softer nature leads to rapid erosion.
Case Study: Extending MTBF with Premium Slurry Pump Seals
Premium slurry pump seals directly contribute to extending the Mean Time Between Failures (MTBF). This translates into significant operational savings and increased productivity for mining operations.
A mining operation in the Rocky Mountains faced frequent seal failures in their slurry pumps. This led to bi-monthly breakdowns and over $1.2 million in annual costs. To address this, they implemented a hybrid solution. This solution incorporated custom air seals and high-performance plastics like PEEK and filled PTFE. This advanced sealing technology operates without contact. It significantly extended the mean time between failures (MTBF) to 18 months. It also reduced downtime by 90%. This resulted in annual savings exceeding $900,000. The upgrade also led to a 25% lower power consumption.
The results clearly demonstrate the impact of investing in superior sealing solutions:
| Metric | Before Upgrade (Bi-monthly failures) | After Upgrade (Custom Air Seals) |
|---|---|---|
| MTBF | 2 months | 18 months |
| Improvement Factor | N/A | 9x |
| Downtime Reduction | Multiple 48-hour halts | 90% reduction |
| Annual Cost Savings | N/A | $900,000 |
| Power Consumption | N/A | 25% lower |
This case study exemplifies how premium slurry pump seals deliver tangible benefits. They improve operational reliability and reduce costs.
Beyond Durability: Maximizing Mining Efficiency with Premium Slurry Pump Seals
Reducing Downtime and Maintenance Costs
Premium slurry pump seals significantly reduce operational downtime and maintenance expenses. Choosing an appropriate sealing solution, based on specific operating conditions, directly increases pump uptime and maintains high productivity. Conversely, poor quality or ill-suited sealing solutions lead to increased maintenance demands and unplanned stoppages. Analyzing slurry characteristics, such as hardness, abrasiveness, solids content, chemical composition, and temperature, helps in selecting the right sealing solution. This proactive approach prevents costly failures.
Mechanical seals can extend the time between maintenance intervals by up to four times compared to traditional packing. While mechanical seals require a slightly higher level of training for installation and maintenance, their long-term benefits outweigh this initial investment. Sealing presents a significant challenge in slurry pumps. However, employing high-quality seals, routine maintenance, and appropriate training can reduce the likelihood of sealing issues. This reduction in sealing issues minimizes downtime, maintenance costs, and environmental effects.
Improving Pump Performance and Energy Efficiency
Premium slurry pump seals also play a crucial role in improving overall pump performance and energy efficiency. Inefficient slurry pumping systems generally lead to increased energy consumption, reduced productivity, higher maintenance costs, and premature equipment failure. This significantly raises operational costs, impacting the profitability and sustainability of mining operations.
A case study from a diamond mine in Botswana demonstrated significant energy savings. The mine converted its slurry pumps from gland packing to double mechanical seals. The original gland water system, which used bore hole pumps to lift water to a surface reservoir, consumed 394,084 kilowatt-hours per year. After the double seal conversion, which utilized a simple tank recirculation system, the total energy consumption was reduced to less than 30,000 kilowatt-hours per year. This resulted in energy savings of over 350,000 kilowatt-hours per year. This also led to an atmospheric saving of over 2 pounds of CO2 for every kilowatt saved, given the region's reliance on coal for power generation. This example highlights how a premium slurry pump seal can dramatically cut energy use. While some studies, like one commissioned by the European Sealing Association and the Fluid Sealing Association, have indicated that packing power consumption can be equal to or even less than that of seals in specific test setups, the overall operational benefits and long-term energy savings from advanced mechanical seals often prove superior in real-world abrasive applications.
Enhancing Safety and Environmental Compliance
Investing in premium slurry pump seals also enhances safety and ensures environmental compliance within mining operations. Compliance with industry standards, such as ISO 14001 for environmental management systems, or specific regional regulations governing emissions or water discharge, ensures that the pumps meet required legal and environmental standards. This is especially important in industries like mining, where the handling of potentially hazardous materials requires strict adherence to environmental guidelines. By selecting suppliers committed to meeting these regulatory requirements, businesses can avoid potential fines, legal issues, and reputational damage. Working with suppliers who comply with global industry certifications and manufacturing standards assures that the slurry pumps will deliver reliable performance and meet safety regulations.
Robust sealing solutions prevent contamination of the surrounding environment and ensure compliance with environmental regulations. This minimizes the risk of environmental contamination and worker exposure. Effective sealing technologies help industries meet stringent environmental regulations by minimizing leaks, thereby avoiding significant fines or penalties. This commitment to high-quality seals protects both personnel and the planet.
Investing in premium slurry pump seals represents a strategic decision. These seals effectively address abrasive wear. This investment maximizes uptime, reduces operational costs, and improves overall mining efficiency. GW SEAL offers high-performance, durable slurry pump seals, essential for sustainable mining productivity.
FAQ
What causes abrasive wear in slurry pumps?
Abrasive particles like sand, gravel, and ore fragments in mining slurries cause significant wear. These particles erode pump components and seals through sliding and impact, especially in corrosive environments.
How do premium slurry pump seals protect against abrasion?
Premium seals use advanced materials like silicon carbide and tungsten carbide. They also feature innovative designs that prevent clogging and isolate critical components from abrasive slurry, extending equipment life.
What benefits do premium slurry pump seals offer mining operations?
Premium seals maximize uptime and reduce maintenance costs. They improve pump performance and energy efficiency. They also enhance safety and ensure environmental compliance, leading to significant operational savings.
