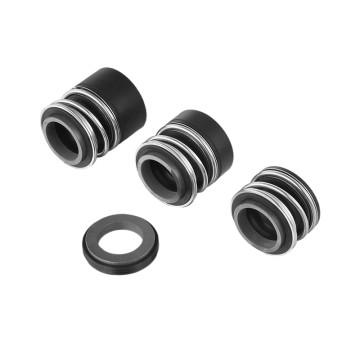

How MG1 Seal Provides Reliable Solutions for Pumps
The MG1 seal effectively addresses common pump failures and leaks. Its advanced bellow seal design can reduce maintenance costs by approximately 30% compared to traditional sealing systems. Additionally, the eMG seal's optimized bellows root geometry reduces stress concentration and extends fatigue life. This reliability significantly enhances overall pump performance, making it a superior choice over alternatives like the Burgmann MG1.
- The MG1 seal can reduce maintenance costs by about 30%, making it a cost-effective choice for pump operations.
- This seal minimizes downtime, enhancing overall pump performance and reliability, which is crucial for industries like oil and gas.
- The innovative design and durable materials of the MG1 seal ensure long-lasting performance, reducing the need for frequent maintenance.
Common Pump Issues
Pump Failures
Pump failures often stem from various operational challenges. Common causes include:
- Abnormal prime mover or power supply
- Pump jamming
- Packing too tight
- Discharge valve not closed
- The balance tube is not smooth
- Motor cannot start normally
These issues can lead to significant downtime and operational inefficiencies. For instance, a jammed pump can halt production, causing delays and financial losses. Understanding these causes allows operators to implement preventive measures, ensuring smoother operations.
Leakage Problems
Leakage problems pose serious risks in pump operations, particularly in chemical processing. Common sources of leakage include:
- Worn-out seals
- Loose fittings
- Cracked pump heads
Mechanical seal leakage is prevalent and can occur due to various reasons, such as:
- Seal structure failure (e.g., bellows cracking)
- Seal end face failure
- Compensation component failure
- Other parts of the seal failing
These leaks can lead to environmental compliance issues. They may result in accidental chemical spills, unintentional gas leaks, and significant operational disruptions. The table below outlines the impacts of leakage problems on compliance:
| Impact of Leakage Problems on Compliance | Description |
|---|---|
| Regulatory Violations | Leakage can lead to breaches of environmental regulations, resulting in fines and legal action. |
| Costly Remediations | Addressing leaks often requires expensive cleanup efforts, straining financial resources. |
| Reputational Damage | Companies may suffer long-term damage to their reputation due to environmental mishaps. |
High Maintenance Costs
High maintenance costs are a significant concern for many industries relying on pumps. In the oil and gas sector, for example, annual maintenance costs can be substantial. These costs can strain budgets and divert resources from critical areas. By investing in reliable solutions like the MG1 seal, businesses can reduce maintenance needs and enhance overall efficiency.
How MG1 Seal Solves These Issues
The MG1 seal effectively addresses the challenges faced by pumps through its innovative design features, durable materials, and enhanced performance metrics.
Innovative Design Features
The MG1 seal incorporates several innovative design features that set it apart from traditional mechanical seals. These features include:
| Feature | Description |
|---|---|
| Elastomer bellows rotating | Provides flexibility and durability in various applications. |
| Unbalanced design | Enhances performance by reducing stress on components. |
| Non-pusher type | Eliminates dynamic seals, reducing maintenance needs. |
| Bi-directional rotation | Allows for versatility in application. |
| Wide radial profile | Supports a broader range of operational conditions. |
Additionally, the design avoids torsional stress and integrates multiple functions, including the seal face and spring collar. This integration eliminates bonded joints, allowing for easy interchange of face materials. The MG1 seal also automatically compensates for shaft run-out and axial movements, ensuring reliable operation even in fluctuating conditions.
Material Durability
The durability of the MG1 seal stems from its high-quality materials, which are specifically chosen to withstand harsh environments. The following table outlines the materials used in the MG1 seal and their benefits:
| Material Type | Specific Materials | Purpose/Benefit |
|---|---|---|
| Seal Rings | Resin carbon, antimony carbon, silicon carbide (SiC), sintered silicon carbide (SSIC), tungsten carbide | Selected for durability and application requirements |
| Elastomer Components | VITON, EPDM, NBR, FFKM, AFLAS | Provides chemical compatibility with various fluids |
| Metal Components | SS304, SS316 stainless steel | Offers excellent corrosion resistance in aggressive environments |
These materials enhance the seal's lifespan, especially in corrosive environments. For instance, silicon carbide (SiC) increases lifespan by 30% in abrasive fluids, while stainless steel components enhance durability in harsh conditions. The elastomers provide tailored resistance to specific fluids, ensuring compatibility across various applications.
Enhanced Performance Metrics
The performance metrics of the MG1 seal demonstrate its effectiveness in industrial pump applications. The following table highlights key performance metrics:
| Performance Metric | Description |
|---|---|
| Efficiency Ratings | 98% efficiency achieved with SiC-equipped Wilo EMU systems. |
| Wear Rates | Seal face wear rates show significant improvements over traditional materials. |
| Leakage Measurements | Comprehensive leakage measurements indicate superior sealing performance. |
| Power Transmission Efficiency | Enhanced power transmission efficiency compared to conventional seals. |
| Service Life | SiC-equipped systems demonstrate a 40% longer service life. |
| Maintenance Events | 60% reduction in unplanned maintenance events reported. |
The MG1 seal can achieve a mean time between failures (MTBF) of 25,000 hours or more, significantly improving reliability. Seals made from FKM/SIC materials and 316L stainless steel components show impressive buyer conversion rates of 48-67%. This combination of innovative design, durable materials, and superior performance metrics makes the MG1 seal a reliable solution for pump applications.
Real-World Applications of MG1 Seal
Industrial Pump Systems
The MG1 seal finds extensive use in industrial pump systems across various sectors. Its robust design effectively prevents hydraulic fluid leakage, which is crucial for maintaining operational efficiency. Industries such as chemical, mining, and petrochemical rely on the MG1 seal for its durability and reliability.

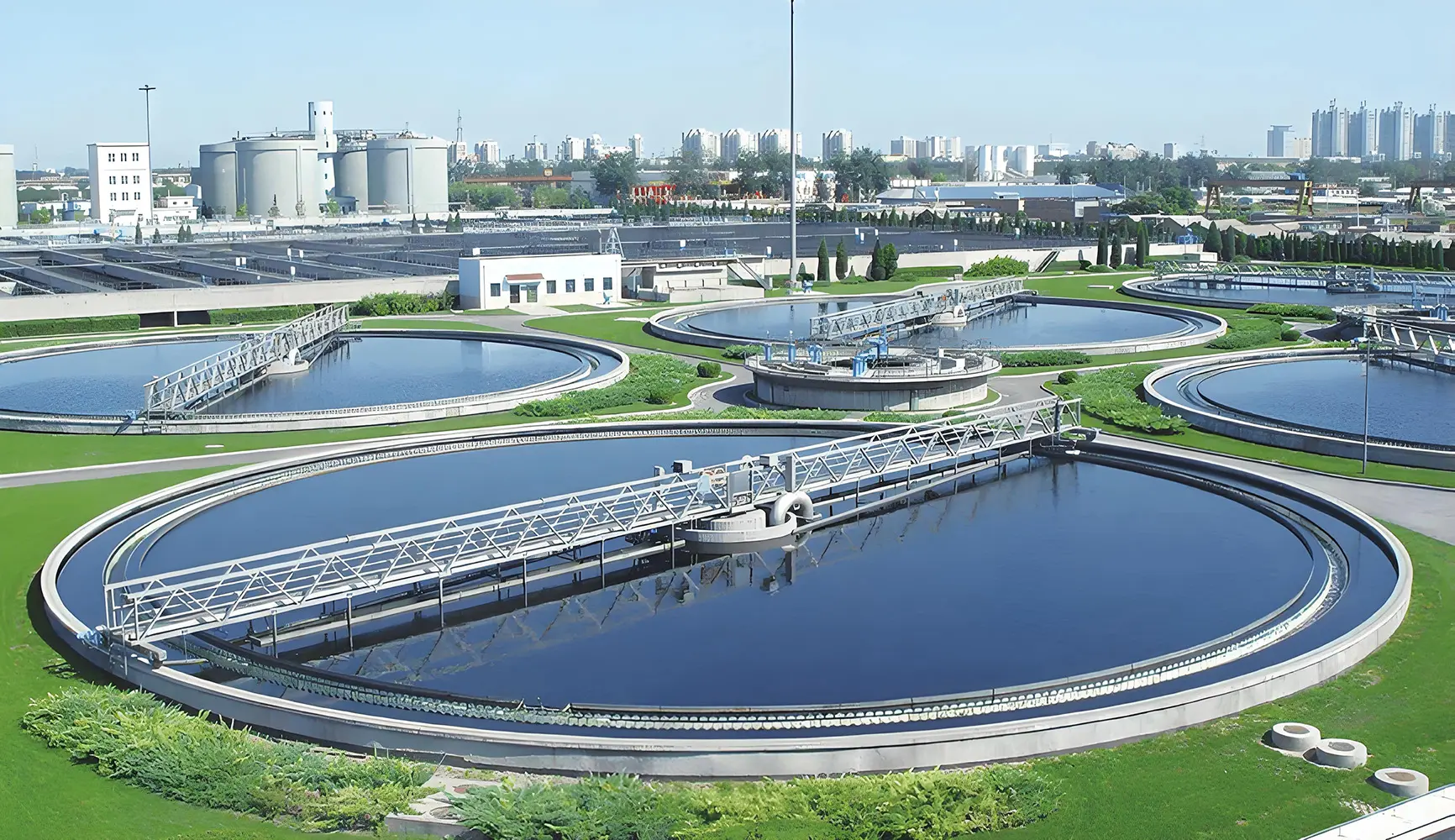

Water Treatment Facilities
In water treatment facilities, the MG1 seal plays a vital role in ensuring system integrity. It prevents leaks, which is essential for maintaining water quality. The seal acts as a barrier against external pollutants, minimizing contamination risks. Additionally, its advanced design reduces maintenance needs, leading to increased operational efficiency. Key benefits include:
- Prevention of leaks, maintaining system integrity.
- Minimization of contamination from external pollutants.
- Reduction in maintenance needs, enhancing reliability.
Oil and Gas Sector
The oil and gas sector presents unique challenges for pump systems, including extreme temperature fluctuations and chemical degradation. The MG1 seal addresses these challenges effectively. It withstands high-pressure conditions and prevents leaks of hazardous materials, enhancing safety and environmental protection. The following table outlines specific challenges faced by oil and gas pumps and how the MG1 seal addresses them:
| Challenge | How MG1 Seals Address It |
|---|---|
| Extreme temperature fluctuations | Prevents leakage and maintains seal integrity |
| Excessive wear from abrasive particles | Acts as a barrier against contaminants |
| Chemical degradation | Retains lubricants and protects against harsh fluids |
| Improper installation | Ensures proper sealing when installed correctly |
| Misalignment | Maintains sealing effectiveness despite misalignment |
| High pressure | Withstands high-pressure conditions without failure |
| Contamination | Prevents dirt and dust from entering machinery |
| Aging of seal material | Designed to resist aging and maintain performance |
| Mechanical damage | Protects sensitive components from vibrations |
The MG1 seal's robust design and chemical resistance make it a reliable choice for demanding oil and gas environments.
The MG1 seal provides a robust solution that enhances pump reliability. Its innovative design and high-quality materials contribute to reduced operational costs. Businesses can trust the MG1 seal for long-term performance, as it minimizes maintenance needs and increases productivity. Users report that protected bearings can operate for over 150,000 hours, significantly lowering maintenance requirements.
FAQ
What industries benefit from the MG1 seal?
The MG1 seal serves various industries, including chemical, oil and gas, water treatment, and pulp and paper.
How does the MG1 seal reduce maintenance costs?
The innovative design and durable materials of the MG1 seal minimize wear and tear, leading to fewer maintenance interventions.
What is the operating temperature range of the MG1 seal?
The MG1 seal operates effectively within a temperature range of -40°C to 180°C, accommodating diverse applications.
