Multi- Spring Mechanical Seal
01
Multi-spring Pusher Seals Johncrane 8-1T for Centrifugal Pumps
Product Description
+
This component is designed with an “O” ring mounted sealing surface with multi-springs. It is available in both full cross-section and narrow cross section, and the drive of the shaft is fastened using set screws tightened with the hex key. The multi-springs provide even closing forces around the sealing face circumference, which lead to improved pV capability and higher performance.
This type has a narrow radial profile to suit the American ANSI B73-1974 centrifugal pump dimensions standard.
It is suited for pump such as the Goulds 3196MTX, Chemineer DTNS-50, IMO ACE 025 K1 A368 and 41 others.
This type has a narrow radial profile to suit the American ANSI B73-1974 centrifugal pump dimensions standard.
It is suited for pump such as the Goulds 3196MTX, Chemineer DTNS-50, IMO ACE 025 K1 A368 and 41 others.
Equivalent Products
+
• AESseal®: N-M05S
• JohnCrane®: Type 8-1T
• Vulcan®: Type 1645S
• Flexaseal®: Type 8-1T
• Pac-Seal®: Type 8
• U.S. Seal®: Type X / XT
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
• JohnCrane®: Type 8-1T
• Vulcan®: Type 1645S
• Flexaseal®: Type 8-1T
• Pac-Seal®: Type 8
• U.S. Seal®: Type X / XT
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
Material and Operating Range
+
Material:
• Rotary ring: Carbon/SiC/TC
• Stationary ring: 99%Ceramic/SiC/TC
• O-ring: VITON/NBR/EPDM
• Spring and Metal Parts: SUS304/SUS316
* Stationary Seat: GW T21
* Customization for this part is supported, please contact us for changing parameters and materials.
Operating Range:
• Temperature: -40 ℃～250℃
• Pressure: ≤1.2MPa
• Speed: ≤25m/s
• Performance: Moderately corrosive
Mediums:
• Oil
• Water
• Other chemical contents

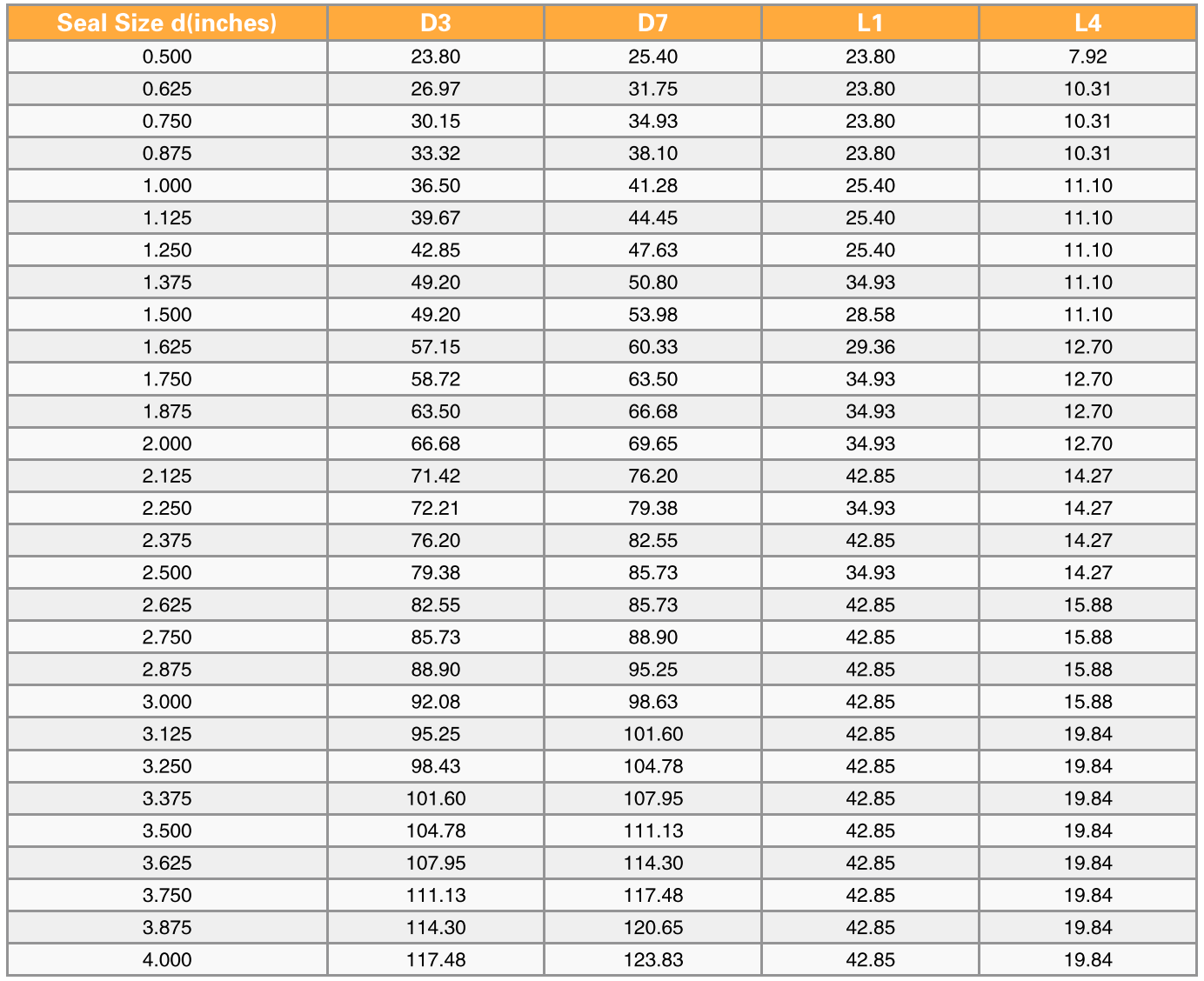

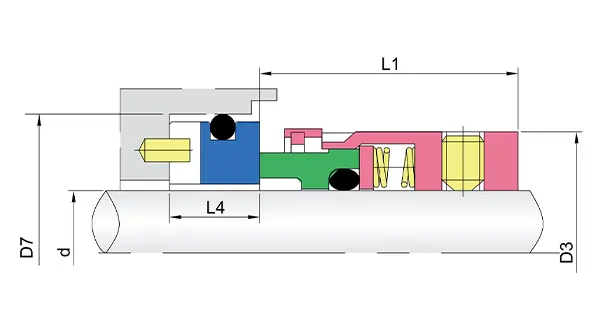

Installation Dimensions
+
description2
