Multi- Spring Mechanical Seal
01
Multi Spring Chemical Pump Seal M74D for Goulds IC i-FRAME Series
Product Description
+
This component is O-ring mounted, designed with multi-springs. It is independent of direction of rotation, and the drive of the shaft is fastened using set screws tightened with the hex key. The multi-springs and robust design provide even closing forces around the sealing face circumference, which lead to improved pV capability and higher sealing performance.
It follows EN 12756 standard.
It is compatible with chemical process pumps, such as Goulds IC i-FRAME series: the Goulds IC 100-65-160, Goulds IC 100-65-200, Goulds IC 100-65-250 and others.
It follows EN 12756 standard.
It is compatible with chemical process pumps, such as Goulds IC i-FRAME series: the Goulds IC 100-65-160, Goulds IC 100-65-200, Goulds IC 100-65-250 and others.
Equivalent Products
+
• EagleBurgmann®: M74-D
• AESseal®: M010D
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
• AESseal®: M010D
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
Material and Operating Range
+
Material:
• Rotary ring: Carbon/SiC/TC
• Stationary ring: 99%Ceramic/SiC/TC
• O-ring: VITON/NBR/EPDM
• Spring and Metal Parts: SUS304/SUS316
* Stationary Seat: GW G92
* Customization for this part is supported, please contact us for changing parameters and materials.
Operating Range:
• Temperature: -40 ℃～220℃
• Pressure: ≤2 MPa
• Speed: ≤20m/s
• Performance: Moderately corrosive
Mediums:
• Oil
• Water
• Sewage water
• Pulp and paper
• Other low solid content and low abrasive media

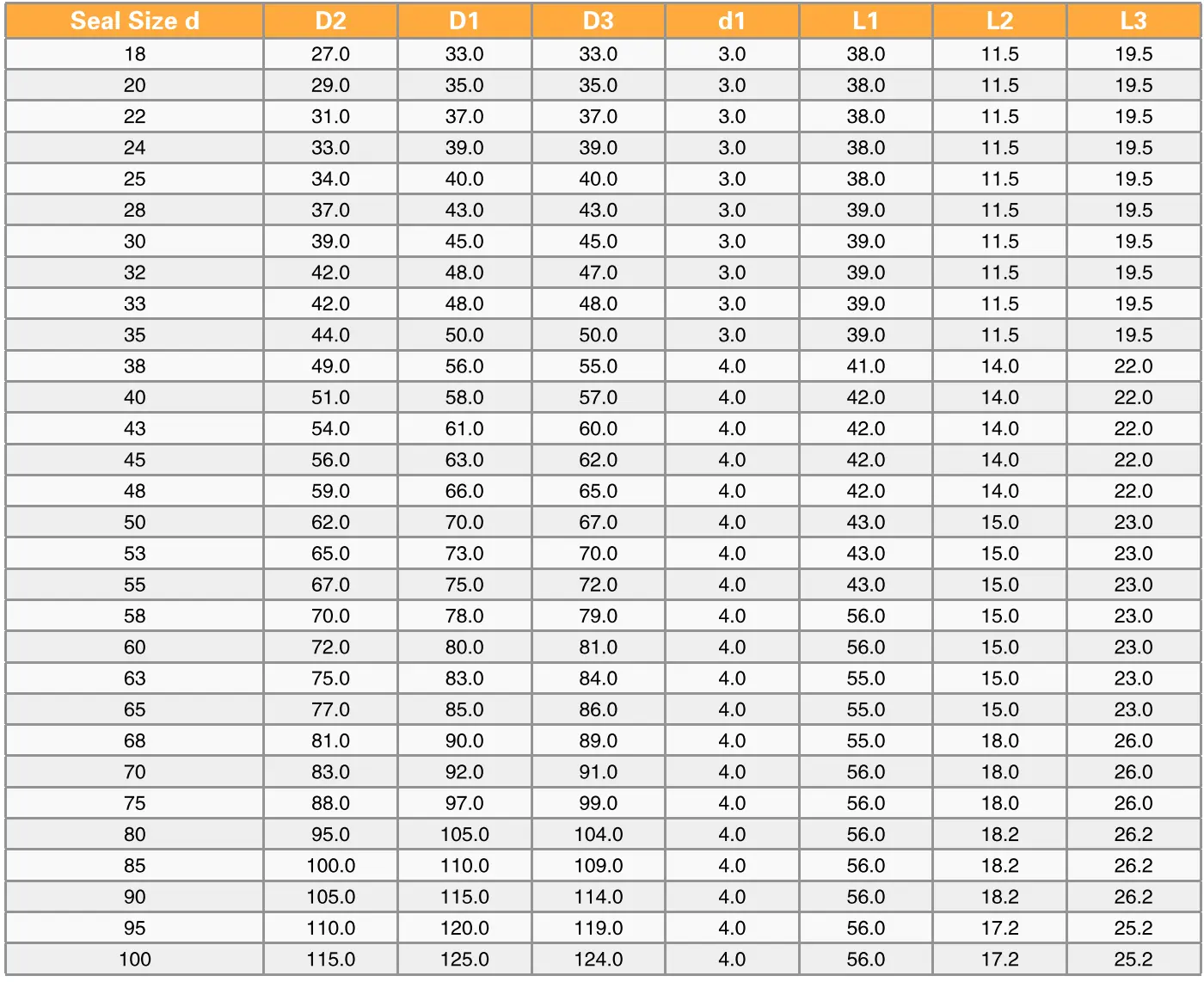

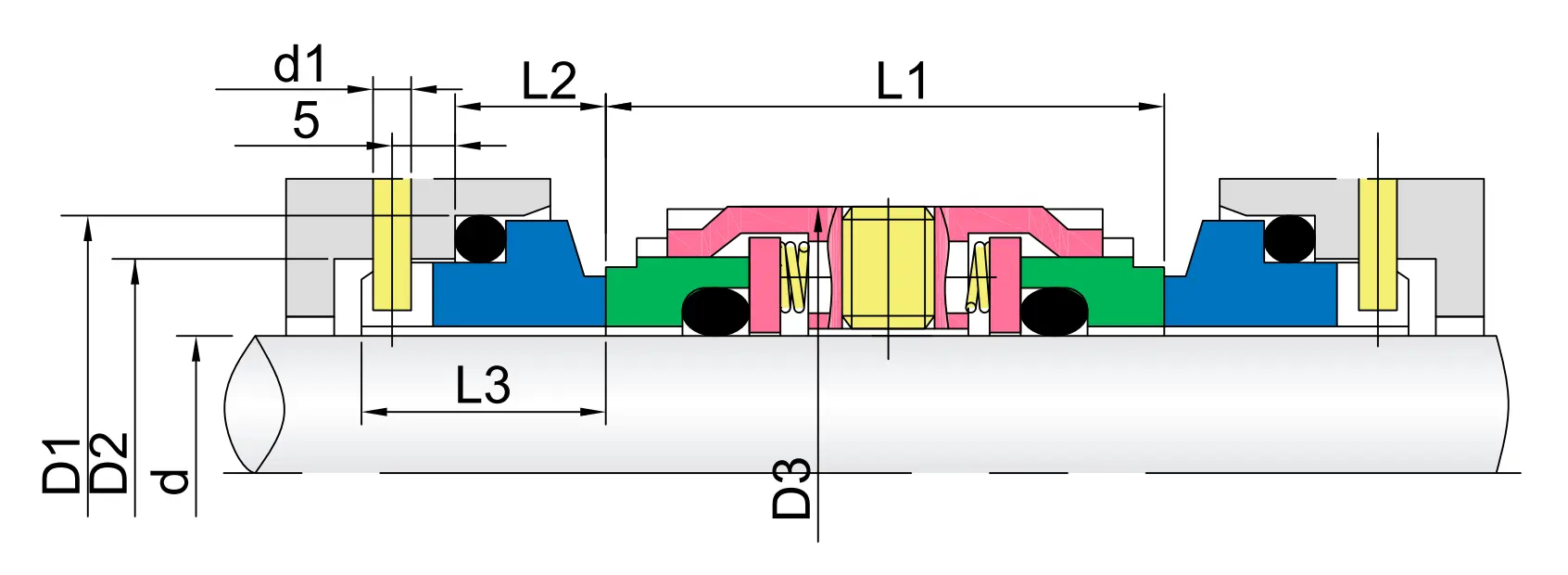

Installation Dimensions
+
description2
