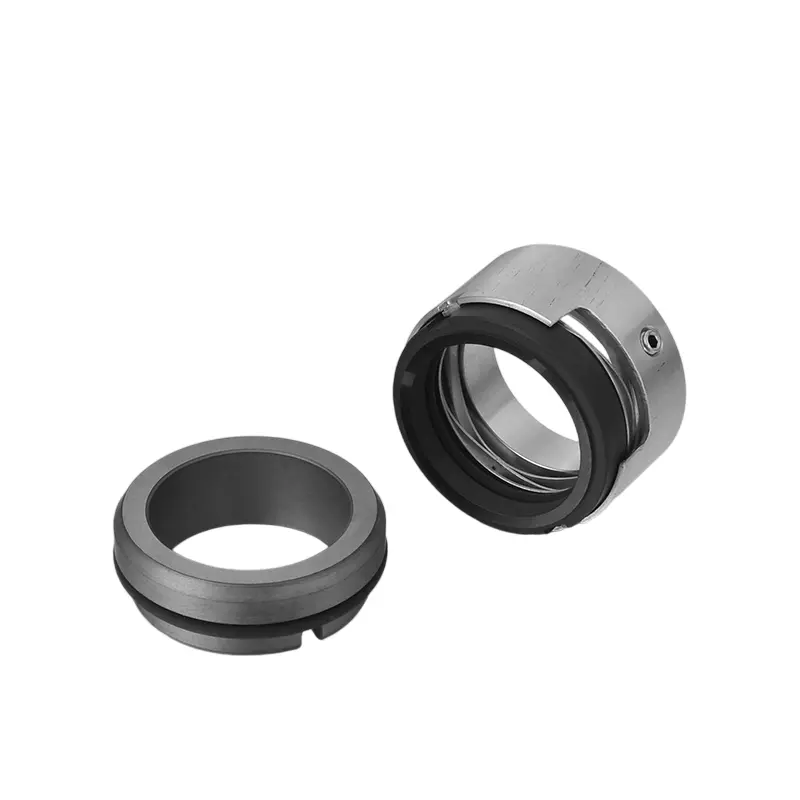

M7N Wave Spring Mechanical Seal for Industrial Process Pumps
Product Description
+
This component is O-ring mounted, designed with wave spring. It can rotate in both directions, and the drive of the shaft is fastened using set screws tightened with the hex key. The wave spring and robust design provide even closing forces around the sealing face circumference, which lead to improved pV capability and higher sealing performance.
It follows EN 12756 standard.
It is compatible with pumps or devices such as the Apex TD 32-200.B/S, Flowserve 100-65CPX160, Flowserve 100-65CPX200 and others.
It follows EN 12756 standard.
It is compatible with pumps or devices such as the Apex TD 32-200.B/S, Flowserve 100-65CPX160, Flowserve 100-65CPX200 and others.
Equivalent Products
+
• EagleBurgmann®: Type M7N
• AESseal®: Type N-W07DMU
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
• AESseal®: Type N-W07DMU
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
Material and Operating Range
+
Material:
• Rotary ring: Carbon/SiC/TC
• Stationary ring: 99%Ceramic/SiC/TC
• O-ring: VITON/NBR/EPDM
• Spring and Metal Parts: SUS304/SUS316
* Stationary Seat: GW G9
* Customization for this part is supported, please contact us for changing parameters and materials.
Operating Range:
• Temperature: -40 ℃～220℃
• Pressure: ≤2 MPa
• Speed: ≤20m/s
• Performance: Moderately corrosive
Mediums:
• Oil
• Water
• Sewage water
• Pulp and paper
• Other low solid content media

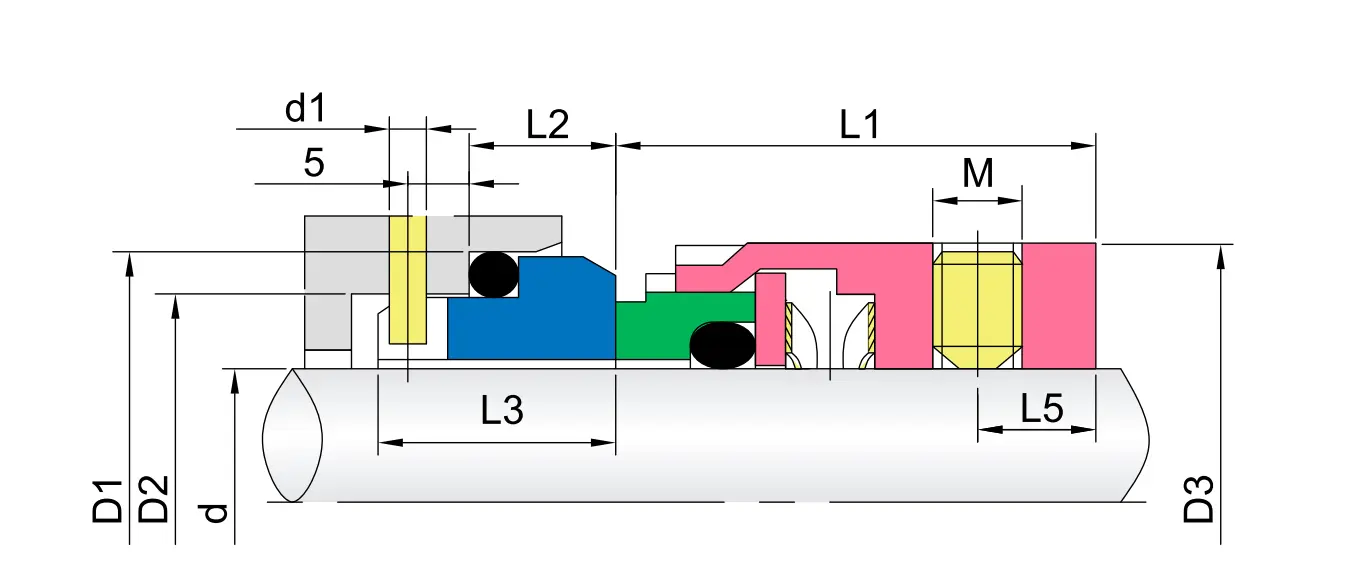

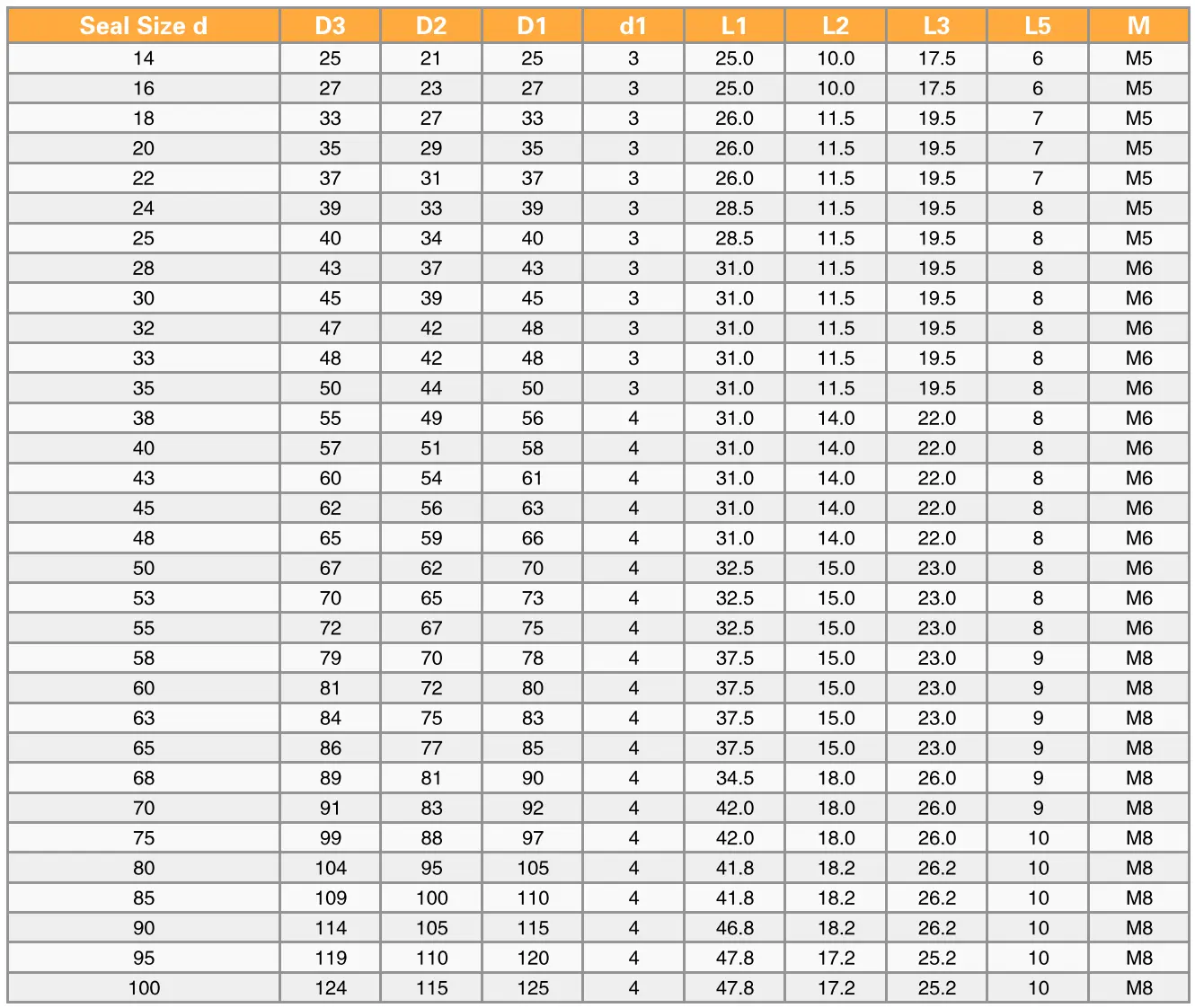

Installation Dimensions
+
description2
