Single-Spring Mechanical Seals
01

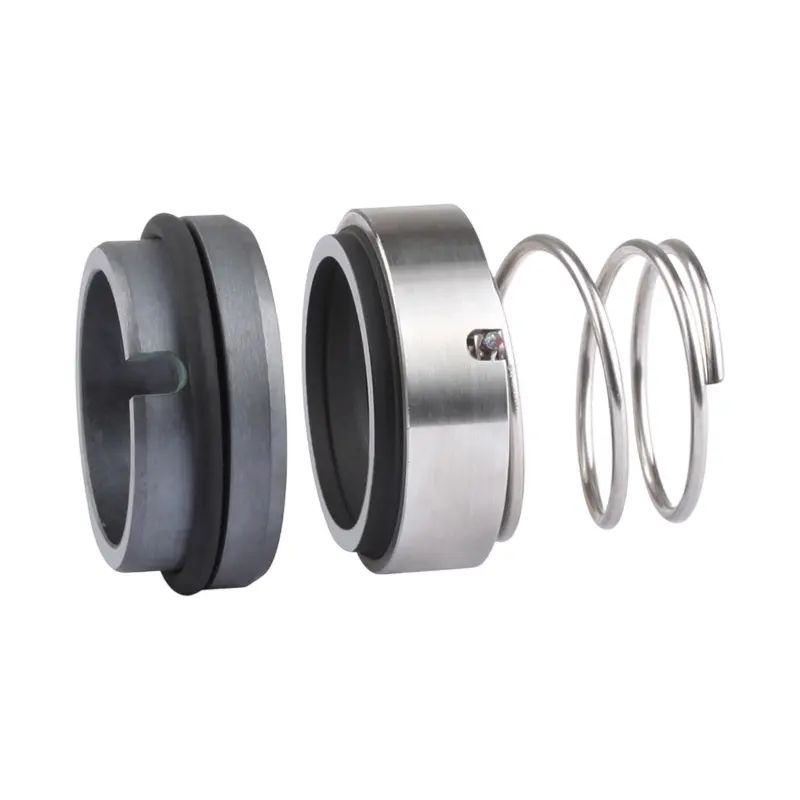

M37 M37G Burgmann Single Spring Seal for General Use
Product Description
+
This component is a single pusher-type seal. It is resilient, compatible and easy to install. It is designed with an “O” ring mounted sealing surface in a narrow section stainless steel head. The sealing drive is provided by a conical spring which clamps the device shaft tightly at the drive end.
It is suited for pump such as Allweiler S3F 210R 40, Biwater DKL 226-130-4MU, Biwater PPF 408-024-4 and 18 others.
It is suited for pump such as Allweiler S3F 210R 40, Biwater DKL 226-130-4MU, Biwater PPF 408-024-4 and 18 others.
Equivalent Products
+
• EagleBurgmann®: M37/M37G
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
Material and Operating Range
+
Material:
• Rotary ring: Carbon/SiC/TC
• Stationary ring: 99% Ceramic/SiC/TC
• O-ring: VITON/NBR/EPDM
• Spring and Metal Parts: SUS304/SUS316
* Customization for this part is supported, please contact us for changing parameters and materials.
Operating Range:
• Temperature: -20 ℃～180℃
• Pressure: ≤1.0MPa
• Speed: ≤15m/s
• Performance: Moderately corrosive
Mediums:
• Oil
• Water
• Amorphism acid
• Alkali
• Salt
• Other organic solvents

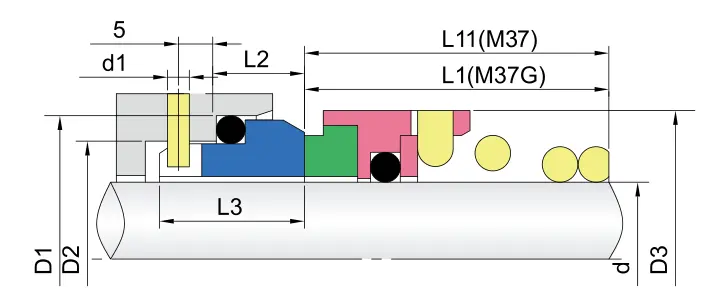

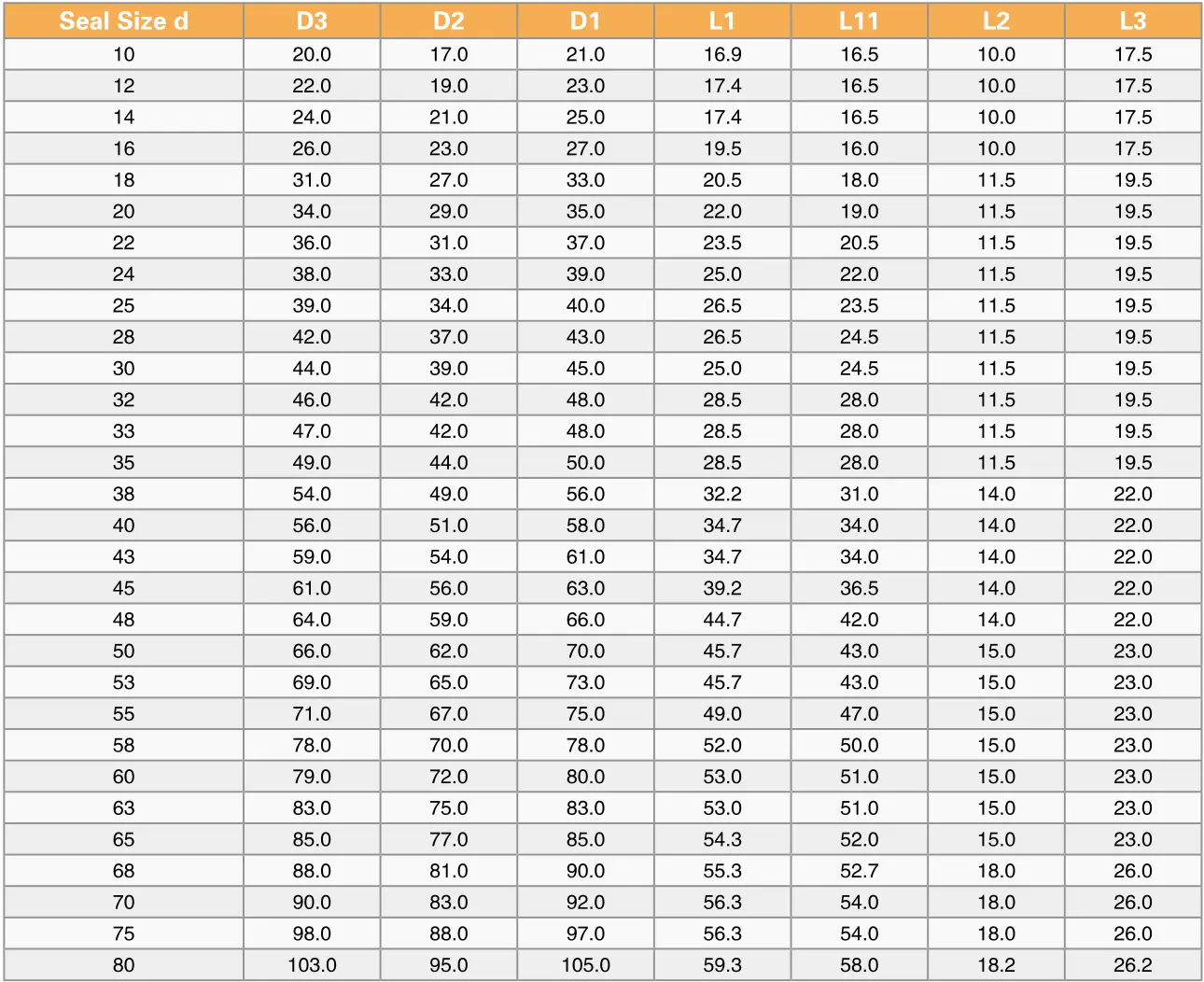

Installation Dimensions
+
description2
