Single-Spring Mechanical Seals
01

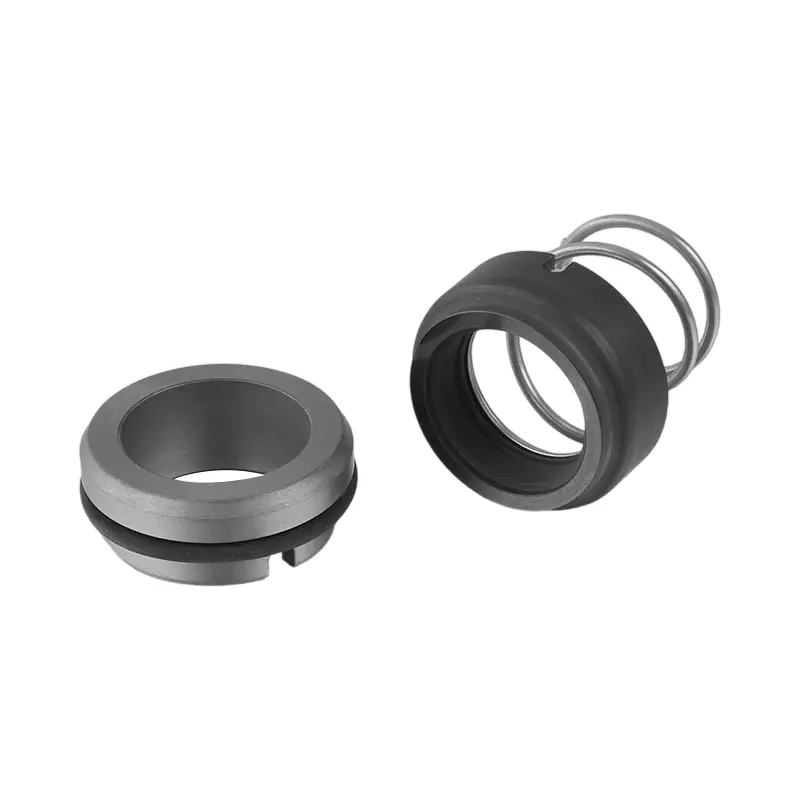

M2N Unbalanced Single Pusher Seal for Light to Medium-Duty
Product Description
+
This component is a single pusher-type seal. It is resilient, compatible and easy to install. It is designed with an “O” ring mounted sealing surface in a narrow section stainless steel head. The sealing drive is provided by a conical spring which clamps the device shaft tightly at the drive end.
It follows the standard of DIN24960/En12756.
It follows the standard of DIN24960/En12756.
Equivalent Products
+
• AESseal®: T07D
• EagleBurgmann®: M2N
• Roten®: UNITEN 22
• Vulcan®: Type 9L
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
• EagleBurgmann®: M2N
• Roten®: UNITEN 22
• Vulcan®: Type 9L
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
Material and Operating Range
+
Material:
• Rotary ring: Carbon/SiC/TC
• Stationary ring: SiC/TC
• O-ring: VITON/NBR/EPDM
• Spring and Metal Parts: SUS304/SUS316
* Customization for this part is supported, please contact us for changing parameters and materials.
Operating Range:
• Temperature: -20 ℃～180℃
• Pressure: ≤1.0MPa
• Speed: ≤15m/s
Mediums:
• Water
• Sewage water
• Oil
• Moderately corrosive fluids

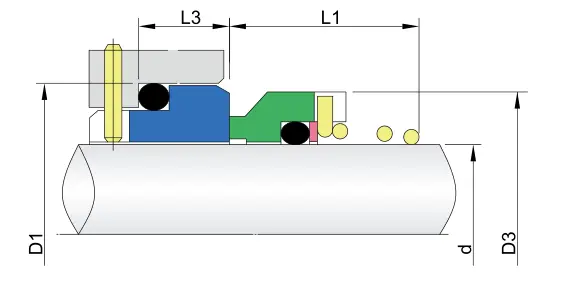

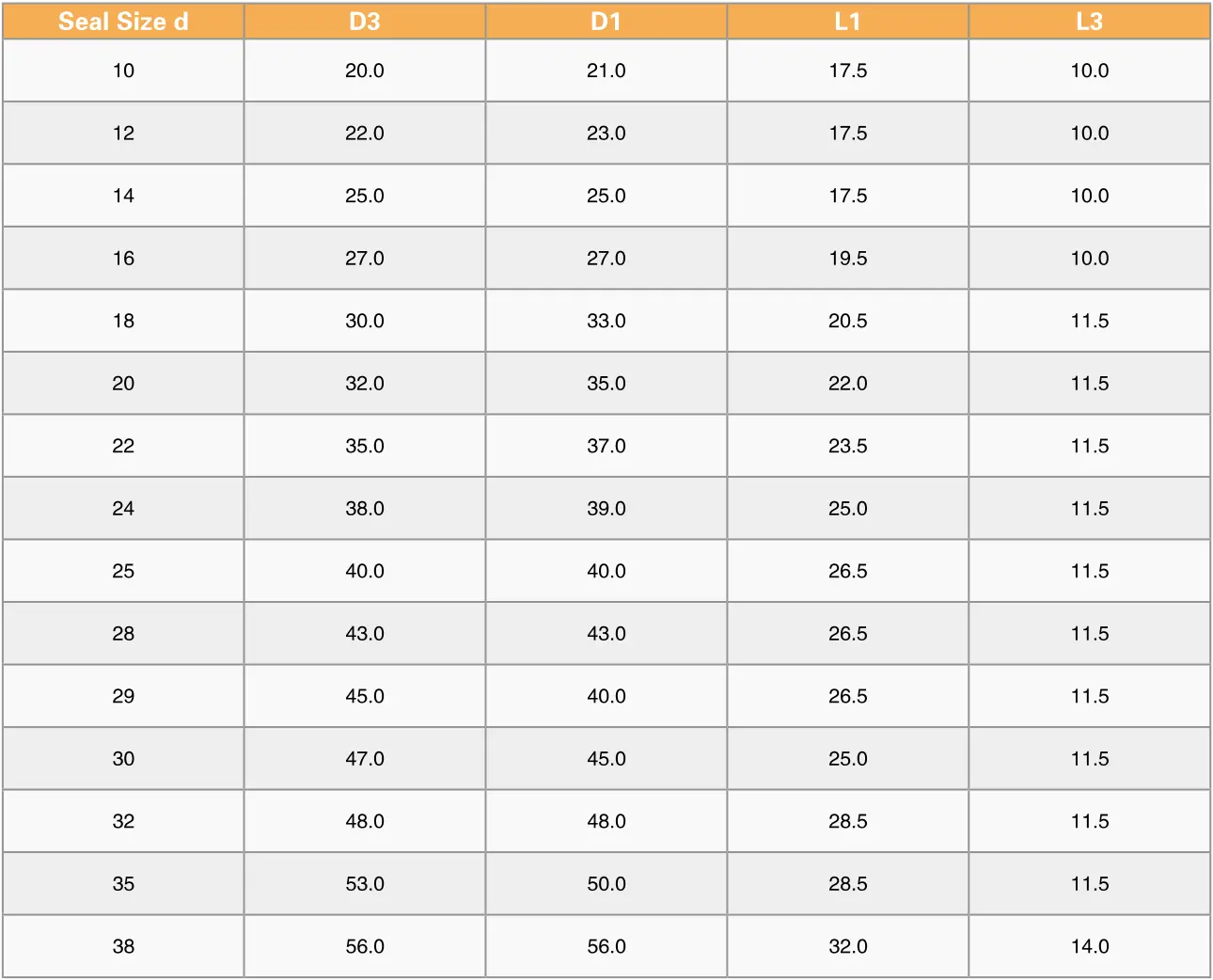

Installation Dimensions
+
description2
