Multi- Spring Mechanical Seal
01
Imperial Size 109B Industrial Pump Seal for Medium Heavy Duty
Product Description
+
This component is PTFE wedge-mounted, designed with multi-springs. It can rotate in both directions, and the drive of the shaft is fastened using set screws tightened with the hex key. The multi-springs and robust design provide even closing forces around the sealing face circumference, which lead to improved pV capability and higher sealing performance.
Compared to GW 9, its step-shaft layout design allows better performance under high shaft speeds, higher pressures, and longer run time operating environment.
Compared to GW 9, its step-shaft layout design allows better performance under high shaft speeds, higher pressures, and longer run time operating environment.
Equivalent Products
+
• AESseal®: M02
• JohnCrane®: Type 109B
• Vulcan®: Type 1609B
• Sterling®: Type 290B
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
• JohnCrane®: Type 109B
• Vulcan®: Type 1609B
• Sterling®: Type 290B
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
Material and Operating Range
+
Material:
• Rotary ring: Carbon/SiC/TC
• Stationary ring: 99%Ceramic/SiC/TC
• O-ring: VITON/NBR/EPDM
• Spring and Metal Parts: SUS304/SUS316
* Customization for this part is supported, please contact us for changing parameters and materials.
Operating Range:
• Temperature: -40 ℃～250℃
• Pressure: ≤4MPa
• Speed: ≤25m/s
• Performance: Wear
Mediums:
• Oil
• Water
• Hydrocarbon and other chemical contents

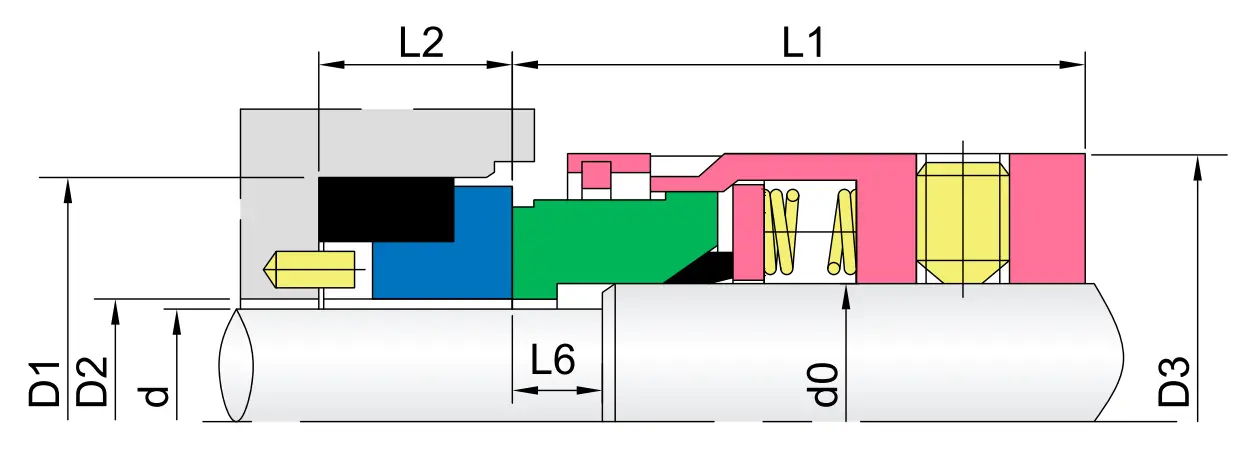

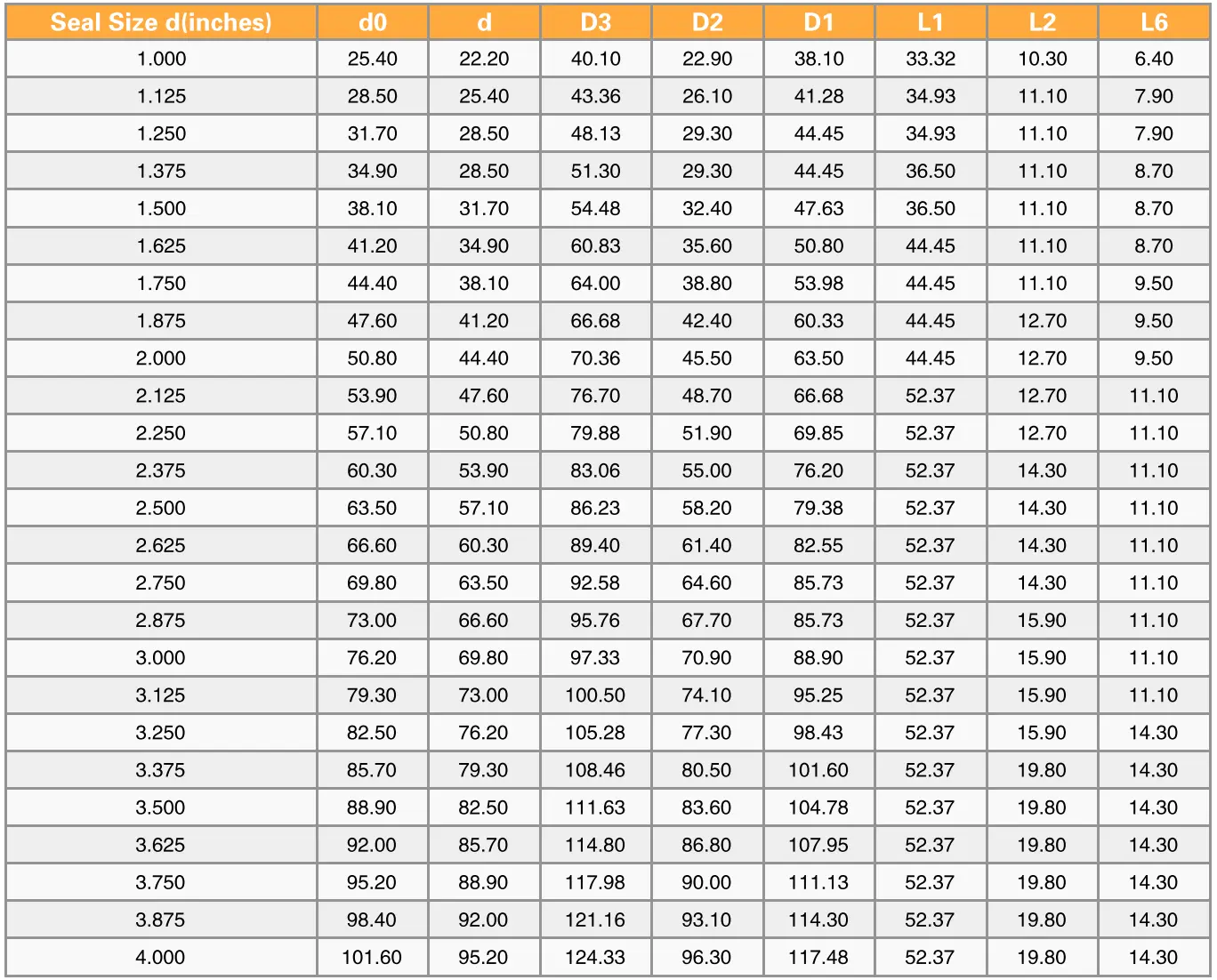

Installation Dimensions
+
description2
