High Temp Wave Spring Seal Replace AES W01 for Alfa Laval Pump
Product Description
+
This component is designed with an “O” ring mounted sealing surface with sinusoidal wave spring. It is available in narrow cross section, and the drive of the shaft is fastened using set screws. The wave spring design provides even closing forces around the sealing face circumference, which lead to improved pV capability, outstanding axial movement capabilities and higher sealing performance. Its monolithic steelhead design enables higher performance in abrasion resistance and high temperature applications.
It has short installation length and reduced radial clearance, which is highly suited to rotary lobe pumps and other slow shaft speed operations.
It is suited for devices such as the Alfa-Laval M3, Alfa-Laval MOG 500, Alfa-Laval SSP 100ND and others.
It has short installation length and reduced radial clearance, which is highly suited to rotary lobe pumps and other slow shaft speed operations.
It is suited for devices such as the Alfa-Laval M3, Alfa-Laval MOG 500, Alfa-Laval SSP 100ND and others.
Equivalent Products
+
• AESseal®: Type N-W01
• Vulcan®: Type 1688
• Lidering®: Type 270
• JohnCrane®: Type 80/ Type DF
• Sterling®: Type 280
• Roten®: Type 7KS
• Alfa-Laval®: 9630025567
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
• Vulcan®: Type 1688
• Lidering®: Type 270
• JohnCrane®: Type 80/ Type DF
• Sterling®: Type 280
• Roten®: Type 7KS
• Alfa-Laval®: 9630025567
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
Material and Operating Range
+
Material:
• Rotary ring: SUS304/SUS316/SiC/TC
• Stationary ring: Carbon/SiC/TC
• O-ring: VITON/NBR/EPDM
• Spring and Metal Parts: SUS304/SUS316
* Customization for this part is supported, please contact us for changing parameters and materials.
Operating Range:
• Temperature: -40 ℃～200℃
• Pressure: ≤0.8MPa
• Speed: ≤18m/s
• Performance: Wear
Mediums:
• Oil
• Water
• Food
• Viscous contents

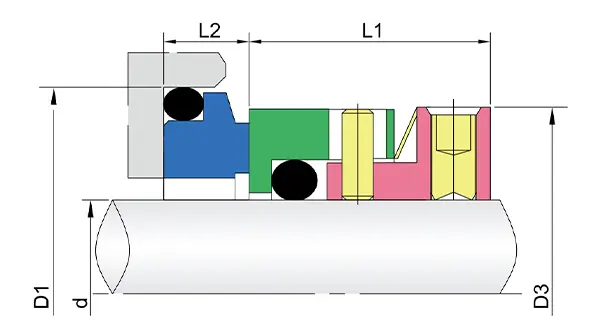

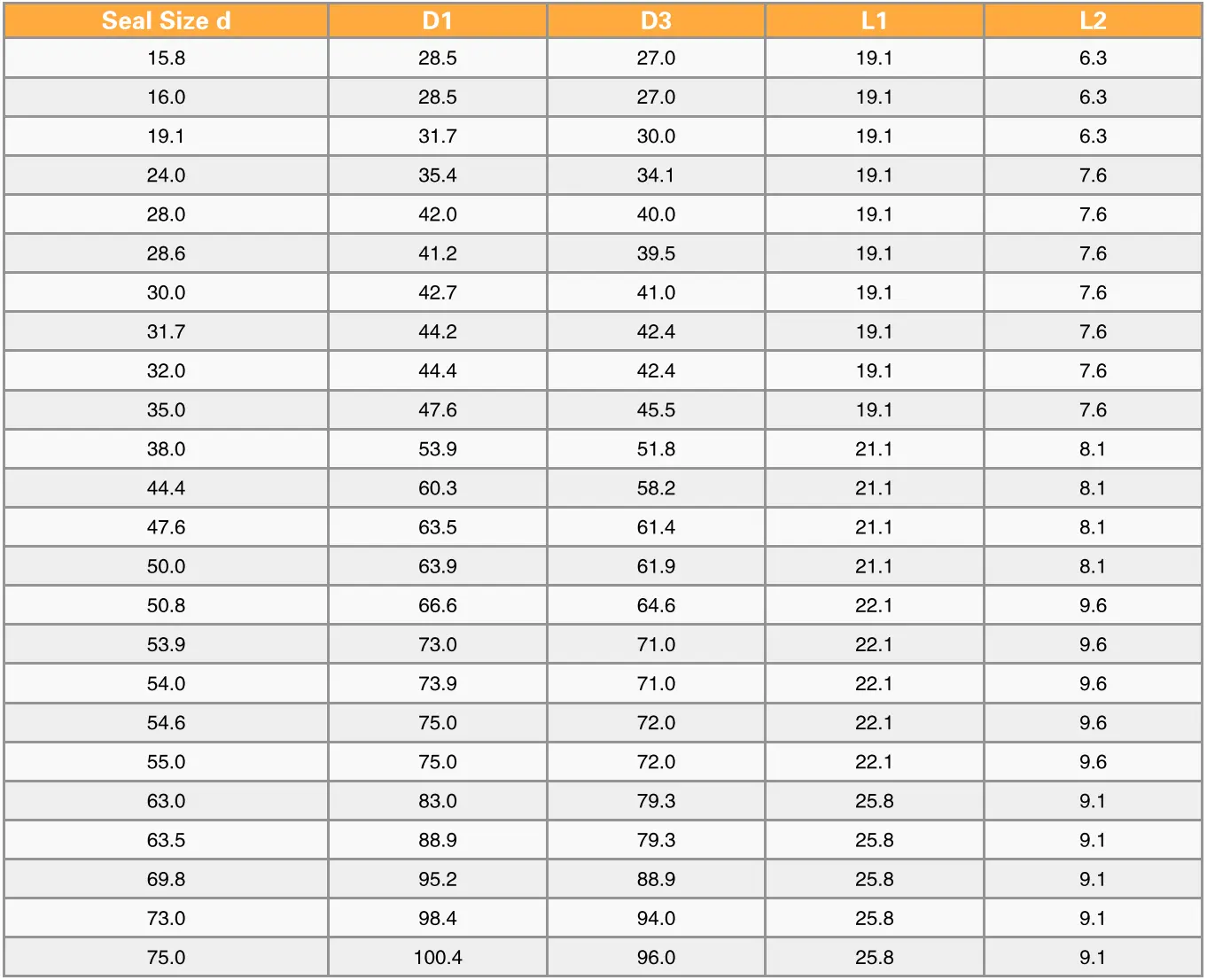

Installation Dimensions
+
description2
