Fristam pump seal
See our full catalog or contact us for more product options
01

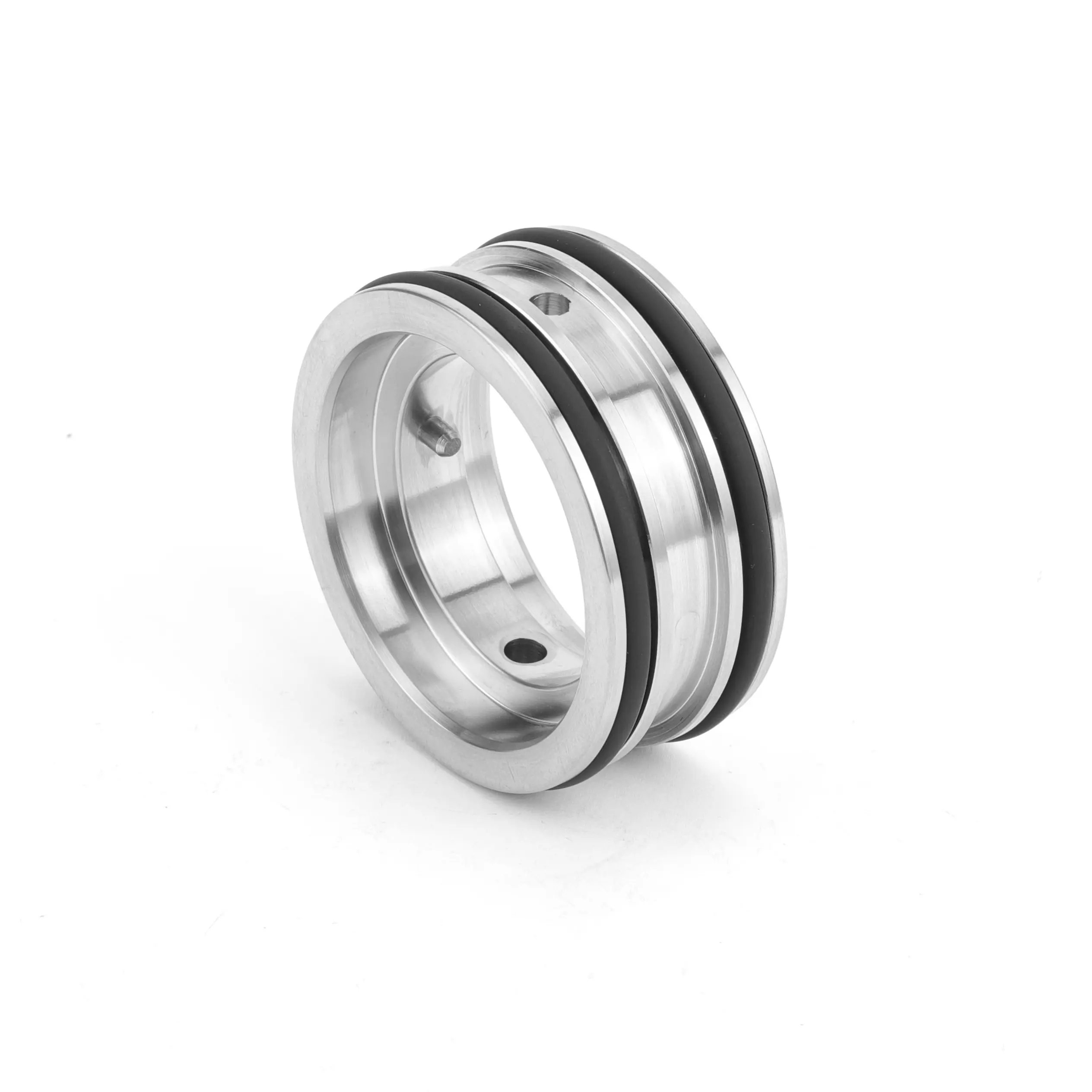

GW208/1 SUS Stationary Seat for Fristam Pump Seals 30mm&35mm
Description:
High-precision stationary seat designed for integration with the GW 208 mechanical seal assembly, providing reliable sealing surfaces in both inboard and outboard configurations for Fristam® pump systems.Ideal for use in Fristam® centrifugal pumps within sanitary, pharmaceutical, food processing, and chemical industries where sealing reliability, material compatibility, and compliance with hygienic standards are essential.
Product Detail
+
The GW208/1 is a dedicated OEM stationary seat component used within Fristam® pump mechanical seals. It serves as the fixed counterface to the rotating seal elements, maintaining consistent sealing performance under varying operational conditions. Manufactured to exact dimensional and material specifications, this seat ensures compatibility with original equipment designs while offering improved durability and media resistance.
Designed to function seamlessly within hygienic and industrial pump systems, the GW208/1 supports leak-free operation and reduces the risk of product contamination. Its robust construction and precision surface finishing contribute to reliable performance in applications ranging from food processing to chemical transfer.
Designed to function seamlessly within hygienic and industrial pump systems, the GW208/1 supports leak-free operation and reduces the risk of product contamination. Its robust construction and precision surface finishing contribute to reliable performance in applications ranging from food processing to chemical transfer.
Compatibile Products
+
• Vulcan®: 3001/1 and 3501/1
• Vulcan®: 3001/2 and 3501/2
Our GW208/1 stationary seat serves as a direct replacement for the listed OEM equivalents, delivering identical fit and functionality with cost-efficiency. All products are manufactured under ISO9001 quality management systems to ensure consistency, reliability, and compliance with industry standards.
• Vulcan®: 3001/2 and 3501/2
Our GW208/1 stationary seat serves as a direct replacement for the listed OEM equivalents, delivering identical fit and functionality with cost-efficiency. All products are manufactured under ISO9001 quality management systems to ensure consistency, reliability, and compliance with industry standards.
Material and Operating Range
+
Material:
• Base Material: Stainless Steel SUS304 / SUS316
• Elastomer: Viton® (FKM) gasket or O-ring
• Surface Finish: Precision lapped for flatness and sealing integrity
* Custom material configurations and non-standard dimensions are available upon request.
Operating Range:
• Temperature: -20℃ to +200℃
• Pressure: Up to 1.5 MPa (standard); higher ratings configurable
• Speed: ≤ Suitable for systems operating ≤ 15 m/s
Compatible Media:
• Food and beverage ingredients
• Pharmaceutical preparations
• Chemical and solvent solutions
• Hot water, steam, and CIP fluids
• General industrial liquids
Installation Dimensions
+
- Seal Size: 30mm & 35mm
- Custom sizing and tolerance adjustments available—contact us for quoting.
- Custom sizing and tolerance adjustments available—contact us for quoting.
