Fristam pump seal
See our full catalog or contact us for more product options
01

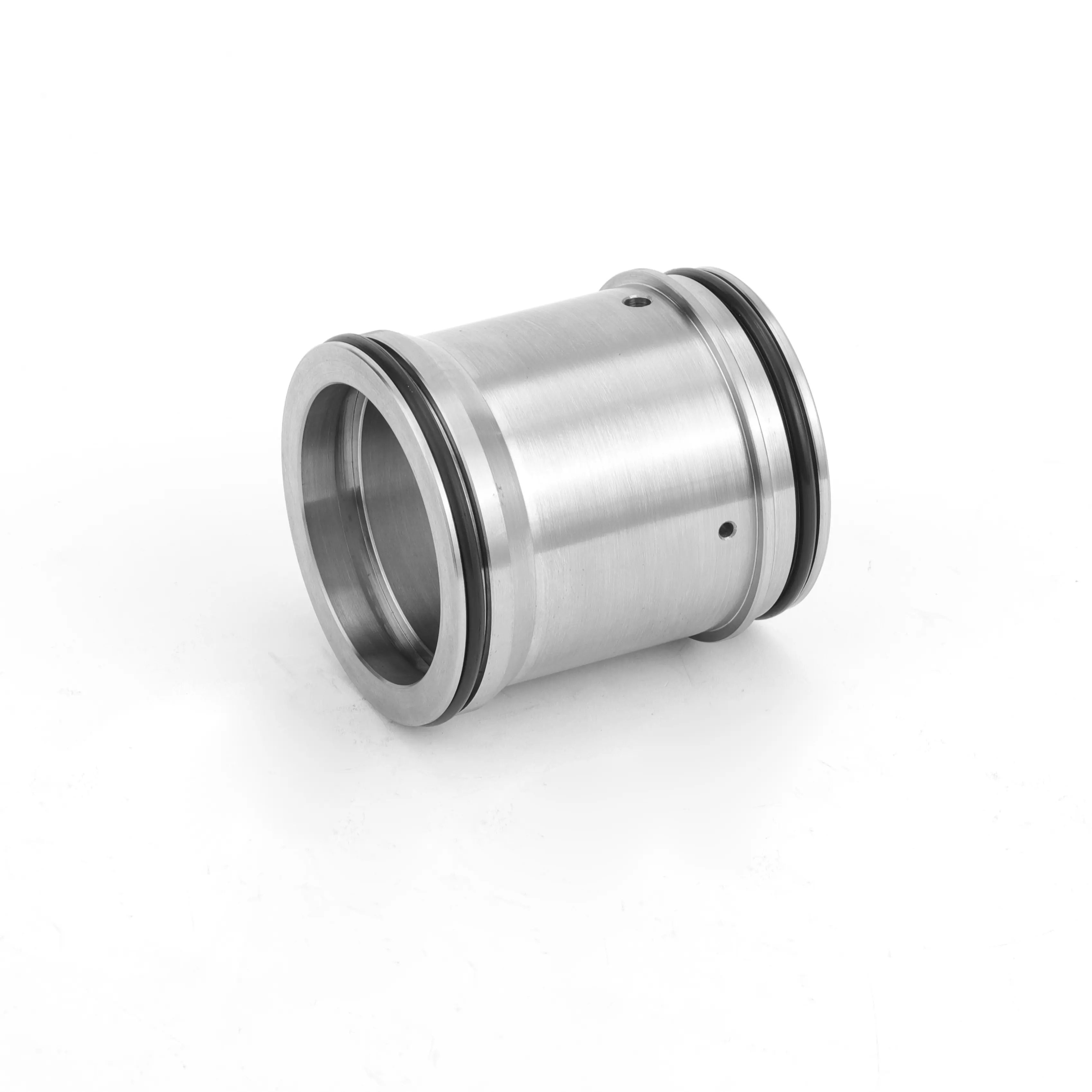

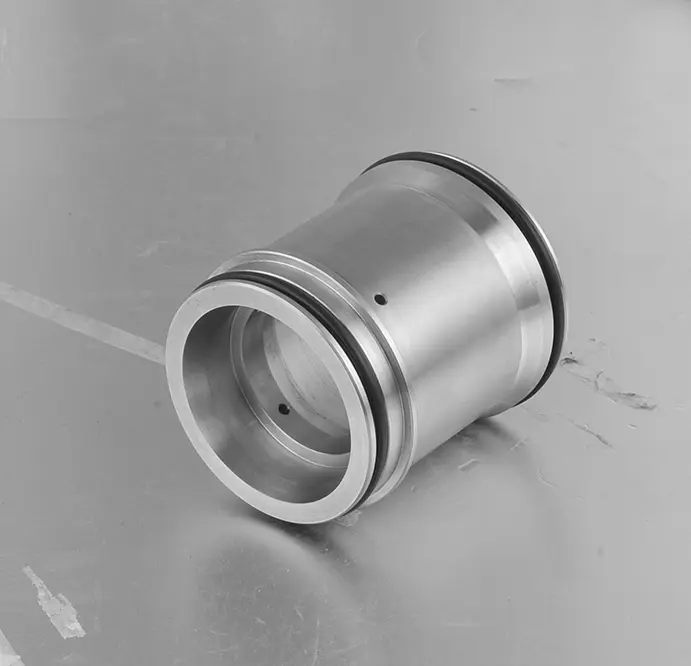

GW208/01 Mechanical Seal Sleeve for Fristam Pump 30mm&35mm
Description:
Precision-engineered sleeve component for the GW 208 mechanical seal assembly, designed to ensure optimal fit, alignment, and sealing performance in Fristam® pump systems.Ideal for use in sealing systems where precise component alignment, material integrity, and easy maintenance are essential. The GW208/01 sleeve is a reliable OEM-style part that helps reduce downtime, simplify inventory management, and maintain pump efficiency in critical processing operations.
Overview
+
The GW208/01 sleeve serves as a critical interfacing component within the GW 208 mechanical seal, engineered to maintain precise internal clearances and promote reliable seal face alignment. Its tailored dimensions and robust material construction contribute to reduced vibration, minimized wear, and extended service life in demanding fluid transfer applications.
This sleeve is specifically configured to match the operational requirements of Fristam® centrifugal pumps, ensuring seamless integration with existing seal designs while supporting consistent performance across varying pressure and temperature conditions. The use of SUS304 or SUS316 stainless steel provides durability and resistance to aggressive media, making it suitable for hygienic and industrial settings alike.
This sleeve is specifically configured to match the operational requirements of Fristam® centrifugal pumps, ensuring seamless integration with existing seal designs while supporting consistent performance across varying pressure and temperature conditions. The use of SUS304 or SUS316 stainless steel provides durability and resistance to aggressive media, making it suitable for hygienic and industrial settings alike.
Compatibility
+
• Vulcan®: 3001/1 and 3501/1
• Vulcan®: 3001/2 and 3501/2
• Fristam® pump models requiring *GW 208 mechanical seals
• Systems utilizing 30mm or 35mm shaft diameters
• Sanitary, pharmaceutical, food, beverage, and chemical processing equipment
• Vulcan®: 3001/2 and 3501/2
• Fristam® pump models requiring *GW 208 mechanical seals
• Systems utilizing 30mm or 35mm shaft diameters
• Sanitary, pharmaceutical, food, beverage, and chemical processing equipment
Material and Operating Range
+
Material Specifications:
• Primary Material: Stainless Steel (SUS304/SUS316)
• Finish: Precision machined, polished for smooth engagement
• Elastomers: Available in various materials for specific application compatibility
* Our engineering team will develop material specs and non-standard dimensions to meet your unique application needs.
Operational Suitability:
• Temperature Range: -20℃ to +200℃
• Pressure: Supports sealing systems rated up to 1.5 MPa and higher
• Speed: ≤ 15 m/s (Standard) | Higher speeds available
• Media: Compatible with pharmaceuticals, food-grade liquids, chemicals, hot water, and industrial fluids

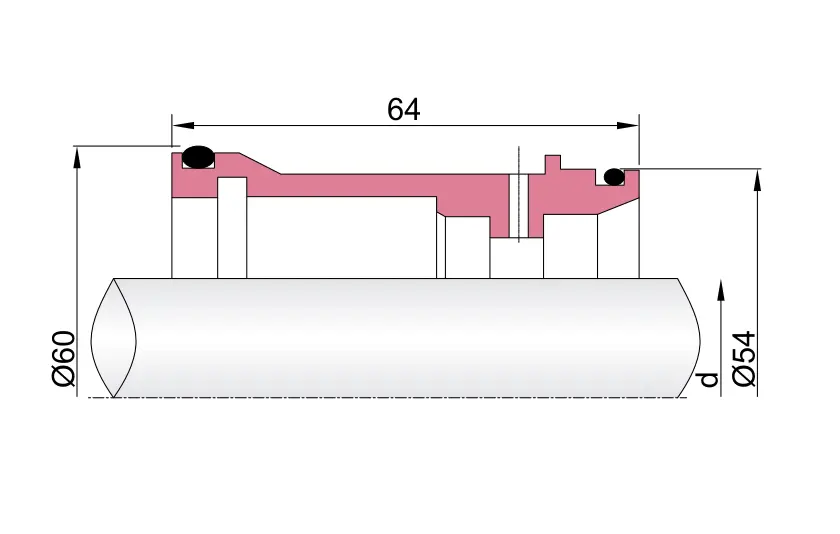

Installation Dimensions
+
- Inner Diameter: 30mm & 35mm
- Length: 64mm
- Custom sizing and tolerance adjustments can be provided to meet specific assembly requirements.
- Length: 64mm
- Custom sizing and tolerance adjustments can be provided to meet specific assembly requirements.
