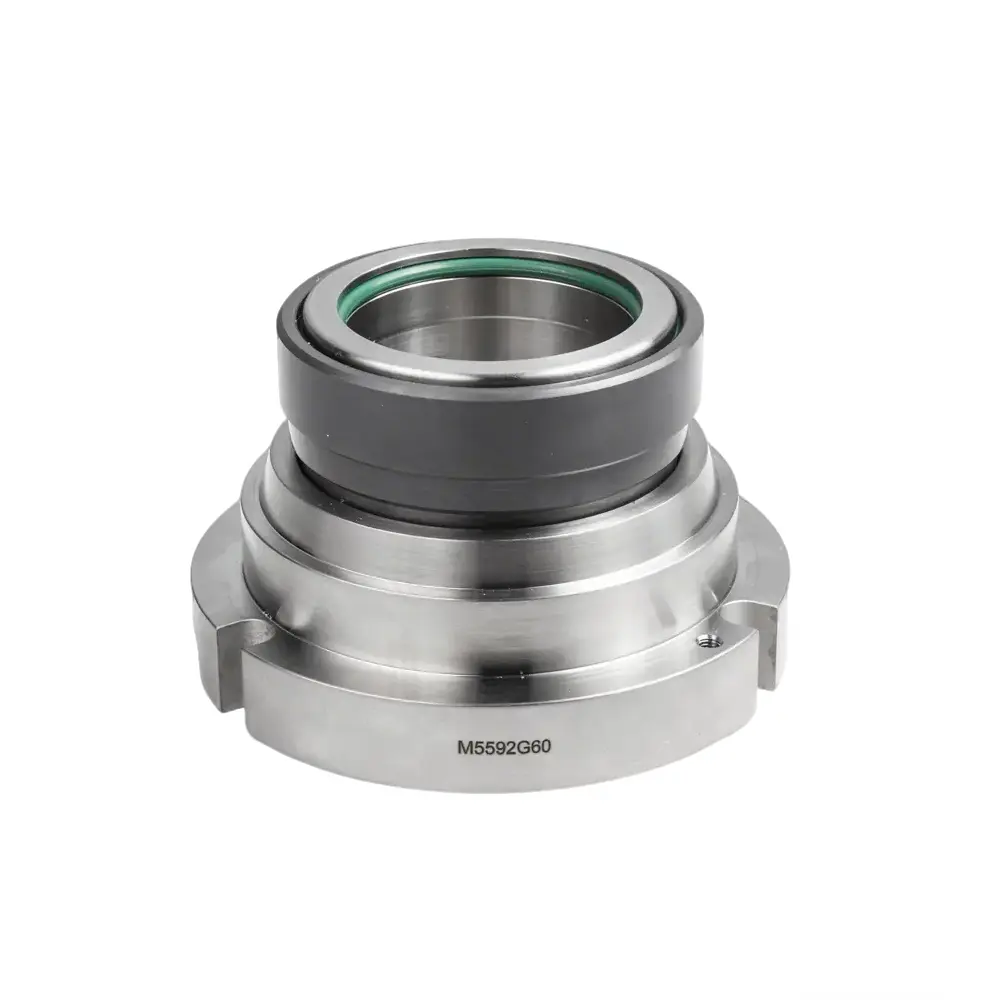

GW PCM Industrial Pumps Cartridge Mechanical Seal
The GW PCM is a robust single cartridge mechanical seal engineered specifically for PCM industrial pumps. Its balanced design ensures stable operation, reduces wear, and extends service life under variable operating conditions. Suitable for quick installation and minimal maintenance, this seal is ideal for retrofit and OEM applications in industries utilizing PCM pump systems.
Product Detail
+
The GW PCM cartridge mechanical seal delivers reliable, leak-free performance tailored for PCM industrial pumps. Designed with a hydraulically balanced rotating face, it minimizes heat generation and power consumption while maintaining sealing integrity across a wide operational range. The unit arrives fully assembled and tested, ensuring ready-to-install convenience and reducing downtime during maintenance or replacement.
This seal serves as a dependable alternative to OEM cartridge seals used in PCM pumps, offering equivalent performance with enhanced affordability. Manufactured under ISO 9001 quality management systems, each seal is produced to consistent standards of durability and precision.
*Important Notice: Verify pump model and seal cavity compatibility prior to installation. Use appropriate safety equipment during handling.
This seal serves as a dependable alternative to OEM cartridge seals used in PCM pumps, offering equivalent performance with enhanced affordability. Manufactured under ISO 9001 quality management systems, each seal is produced to consistent standards of durability and precision.
*Important Notice: Verify pump model and seal cavity compatibility prior to installation. Use appropriate safety equipment during handling.
Equivalent Products
+
- Compatible with cartridge seals for PCM industrial pump models
Material and Operating Range
+
Materials:
- Rotary ring: Carbon / SiC / TC
- Stationary ring: Carbon / SiC / TC
- O-ring: VITON / EPDM / Kalrez
- Spring and metal parts: SUS304 / SUS316
*Custom material combinations and dimensional adjustments are available upon request to meet specific application needs.*
Operating Range:
- Temperature: -20 ℃ to 150 ℃
- Pressure: ≤ 2 MPa
- Speed: ≤ 15 m/s
Compatible Media:
Designed for use with typical PCM pump fluids including:
- Industrial water and coolants
- Light process chemicals
- Non-abrasive slurries and fluids
- Lubricating oils and hydraulic fluids

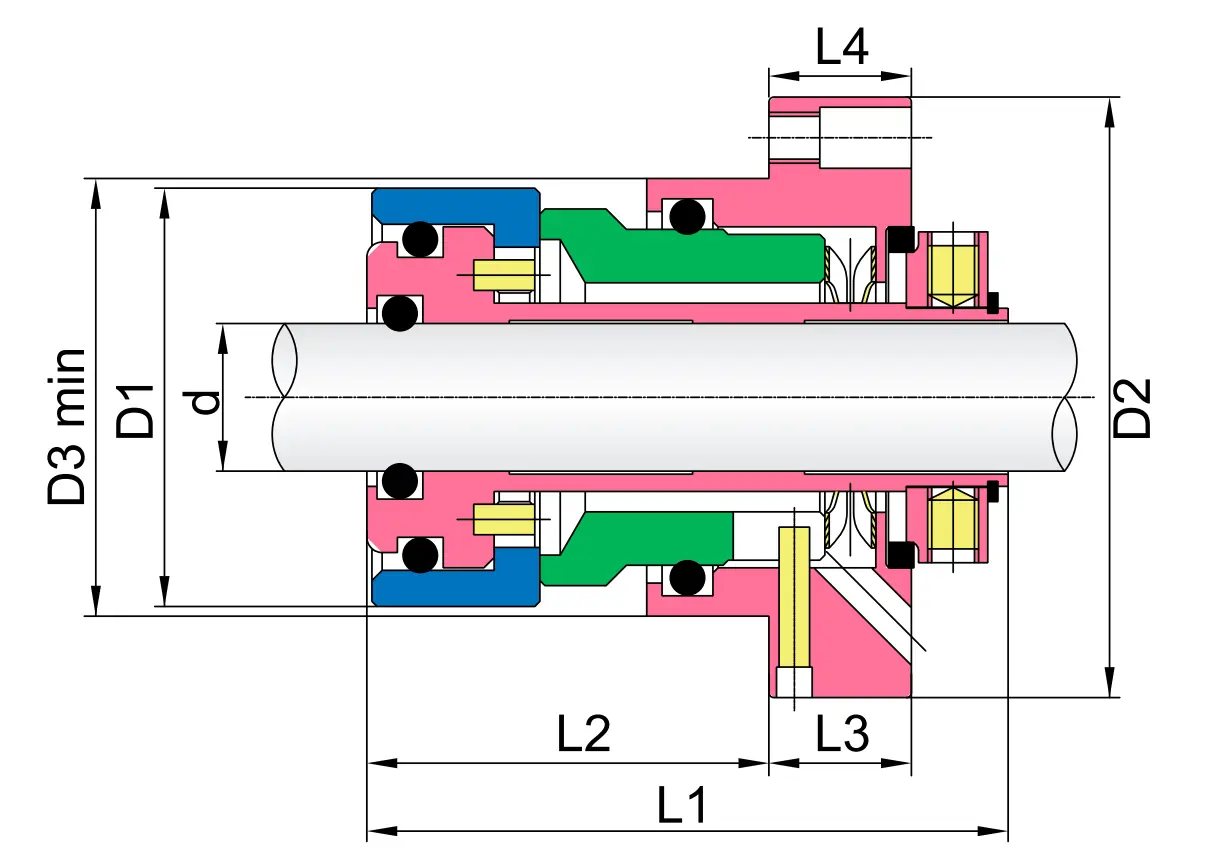

Installation Dimensions
+
Seal Size d |
D1 |
D2 |
D3 min |
L1 |
L2 |
L3 |
L4 |
35 |
62 |
80 |
64 |
63 |
39 |
24 |
14 |
60 |
88 |
129 |
92 |
91 |
57 |
34 |
22 |
80 |
113 |
185 |
140 |
102 |
36 |
66 |
52 |
Contact us for full dimensional drawings.
