GW HOM2 for Alfa Laval Contherm® Scraped Surface Heat Exchangers
This mechanical seal is optimized for demanding thermal processing applications. It is particularly suited for:
• Food & Dairy Production: High-viscosity products (e.g., sauces, dairy concentrates).
• Pharmaceutical & Cosmetic Manufacturing: Processes involving crystallization or particle suspension.
• Chemical Processing: Heat transfer fluids and aggressive media.
• Sanitary Systems: CIP/SIP-compatible environments.
Product Description
+

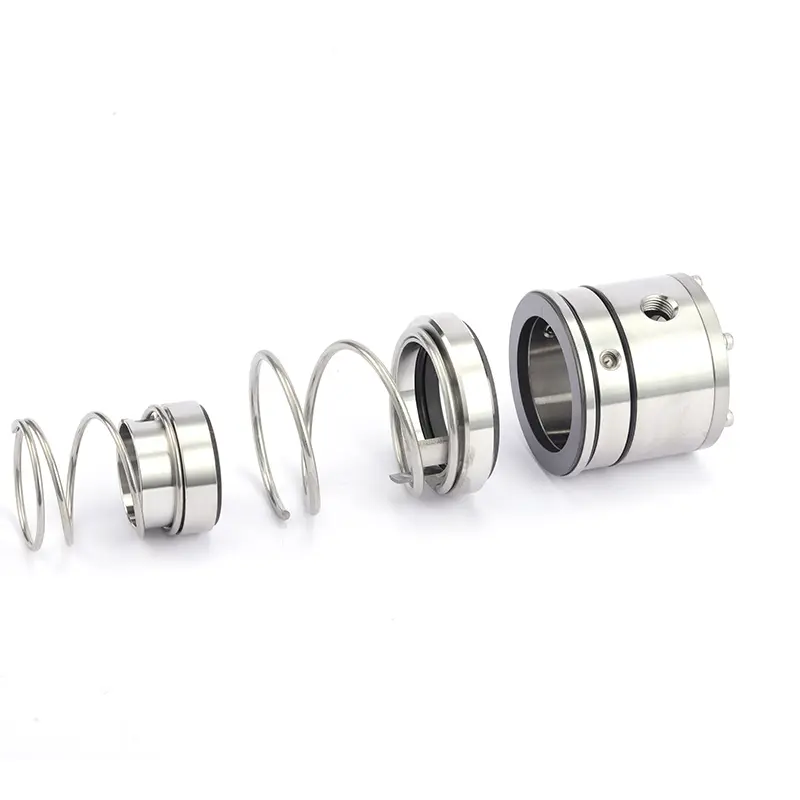

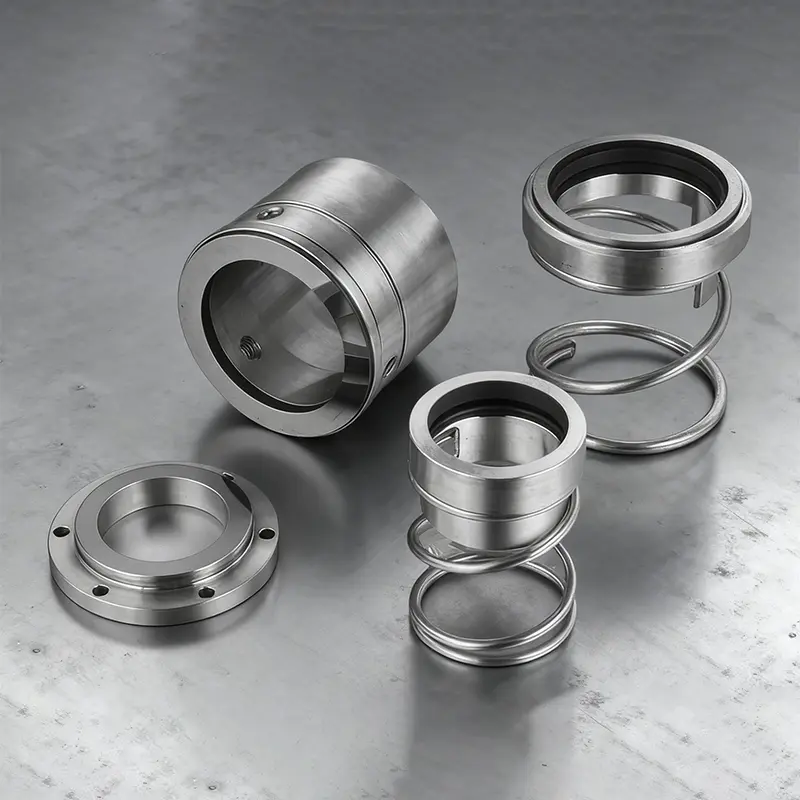

The GW HOM2 is a high-performance OEM mechanical seal designed specifically for Alfa Laval Contherm® scraped surface heat exchangers. These systems handle viscous, abrasive, and crystallizing media, requiring seals that maintain integrity under mechanical scraping forces and thermal cycling. The seal incorporates premium materials like Silicon Carbide (SiC) and Tungsten Carbide (TC), which provide exceptional hardness and wear resistance, critical for prolonged service life in continuous operation.
The cartridge design ensures precise alignment and easy installation, while the balanced mechanical structure compensates for shaft deflection and vibration. This reliability is essential in preventing product contamination and minimizing unplanned downtime in 24/7 production environments.
The cartridge design ensures precise alignment and easy installation, while the balanced mechanical structure compensates for shaft deflection and vibration. This reliability is essential in preventing product contamination and minimizing unplanned downtime in 24/7 production environments.
Compatibility & Equivalents
+
Target Equipment: Alfa Laval Contherm® Scraped Surface Heat Exchangers.
Equivalent Models:
• AESseal®: S0ZU
• Roplan®: 53
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
Equivalent Models:
• AESseal®: S0ZU
• Roplan®: 53
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
Material and Operating Range
+
Materials of Construction:
• Rotary Ring: Carbon, Silicon Carbide (SiC), or Tungsten Carbide (TC)
• Stationary Ring: SiC, SUS304, SUS316, TC, or SiC with Chromium Oxide Coating.
• Secondary Seals: VITON® or EPDM.
• Metallic Components: SUS304/SUS316 stainless steel
*Custom material pairs and specialized coatings are available for unique operational needs.
Operating Range:
• Temperature: -20°C to +180°C (short-term peaks to 200°C with optimized elastomers).
• Pressure: ≤ 1.2 MPa (12 bar).
• Speed: ≤ 20 m/s
• Applicable Media: Sauces, syrups, slurries, creams, pharmaceutical suspensions, chemical solvents, and CIP cleaning agents.
• Rotary Ring: Carbon, Silicon Carbide (SiC), or Tungsten Carbide (TC)
• Stationary Ring: SiC, SUS304, SUS316, TC, or SiC with Chromium Oxide Coating.
• Secondary Seals: VITON® or EPDM.
• Metallic Components: SUS304/SUS316 stainless steel
*Custom material pairs and specialized coatings are available for unique operational needs.
Operating Range:
• Temperature: -20°C to +180°C (short-term peaks to 200°C with optimized elastomers).
• Pressure: ≤ 1.2 MPa (12 bar).
• Speed: ≤ 20 m/s
• Applicable Media: Sauces, syrups, slurries, creams, pharmaceutical suspensions, chemical solvents, and CIP cleaning agents.

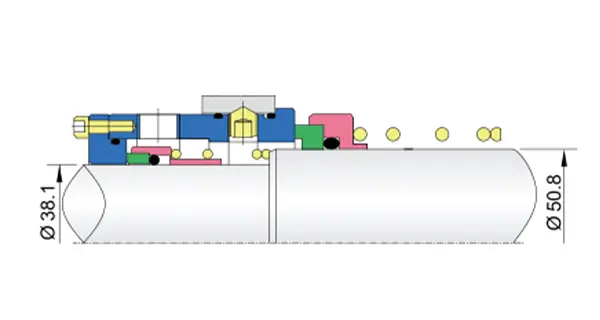

Installation Dimensions
+
Standard Seal Sizes: 38.1mm (1.5") & 50.8mm (2.0")
For non-standard dimensions or detailed CAD schematics, contact our engineering team with your equipment model and operational parameters.
