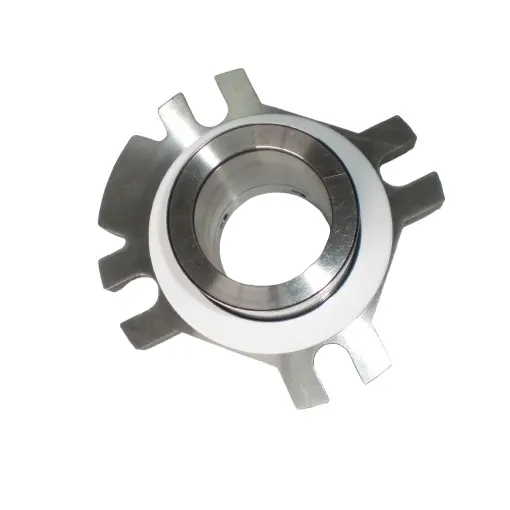

GW GU O-Ring Pusher Cartridge Seal 4610
The GW GU is a robust, general-duty cartridge mechanical seal engineered as a direct replacement for the John Crane® Type 4610 series. Its reliable O-ring pusher construction and unitized format provide a straightforward and effective sealing solution for a wide array of rotating equipment applications.
Product Detail
+
The GW GU cartridge seal employs a proven O-ring pusher design, where elastomeric O-rings provide the primary sealing force and drive mechanism. This compact, single-cartridge configuration is engineered for reliability in general service across industries. It is particularly suited for common rotating shaft equipment such as standard ANSI and DIN process pumps, as well as various mixers and agitators.
As a fully assembled and preset unit, it eliminates complex on-site setting procedures, ensuring correct installation and immediate operational readiness. The design prioritizes ease of maintenance and interchangeability, offering a cost-effective, high-performance alternative to the OEM John Crane 4610 seal without compromising on reliability or sealing integrity. All units are manufactured under an ISO 9001 certified quality management system.
*Installation Note: Verify equipment model and seal cavity dimensions prior to installation. Ensure the shaft and seal chamber are clean and free of damage.
Equivalent Products
+
• John Crane®: Type 4610
Material and Operating Range
+
Materials:
• Rotary ring: Carbon / Silicon Carbide (SiC) / Tungsten Carbide (TC)
• Stationary ring: Carbon/SiC/TC
• Elastomer: VITON/ EPDM/ Kalrez
• Spring and Metal Parts: SUS304/SUS316
*Custom material selections and non-standard dimensions can be accommodated based on specific application requirements.
Operating Range:
• Temperature: -30 ℃～200℃
• Pressure: ≤1.5MPa (217 psi)
• Surface Speed: ≤20m/s
Compatible Media:
Designed for general industrial service, compatible with a broad range of fluids typically handled by the original equipment, including:
• Water, cooling fluids, and mild aqueous solutions
• Light hydrocarbons and process oils
• Many non-abrasive chemical and industrial process streams

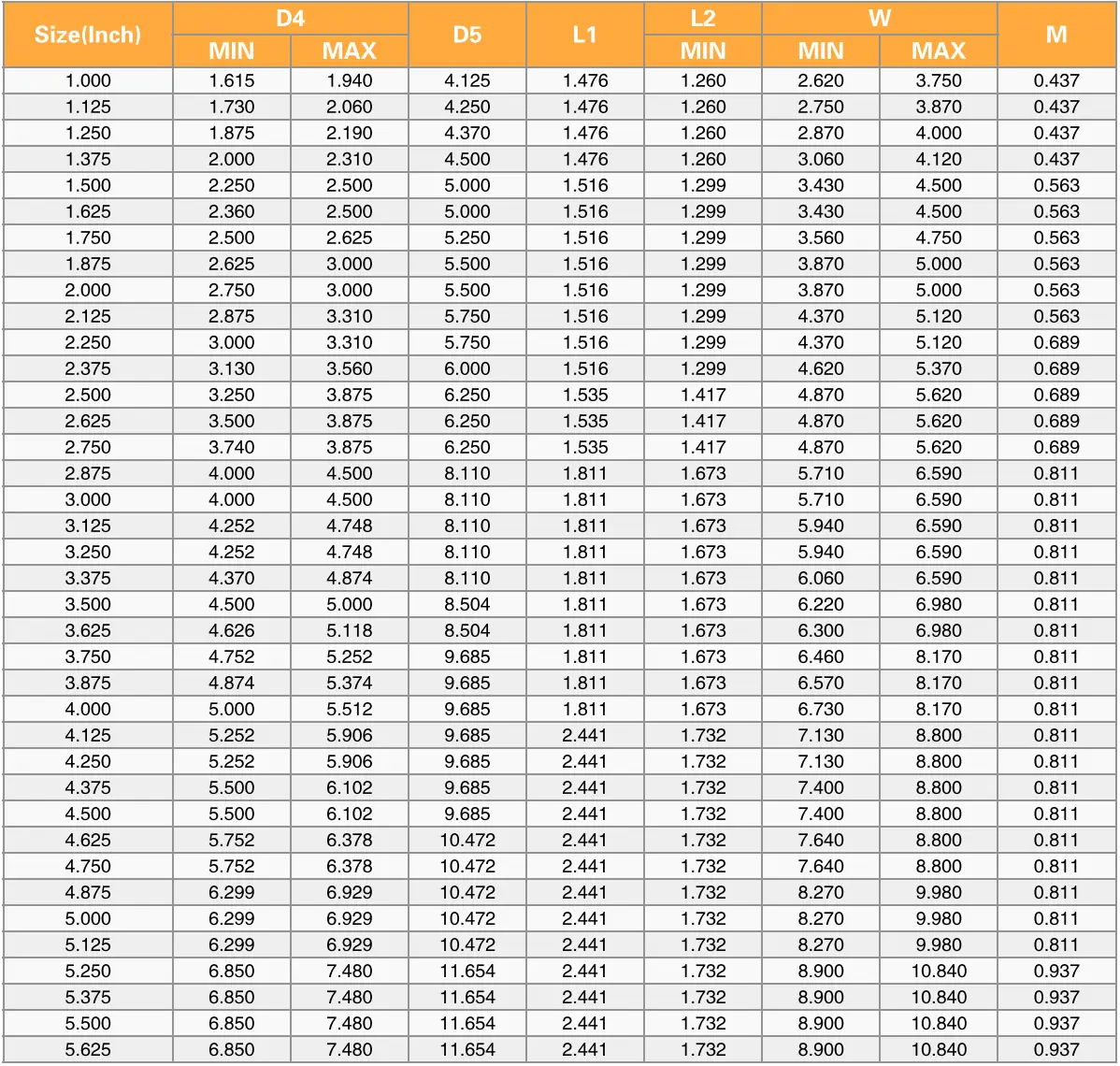

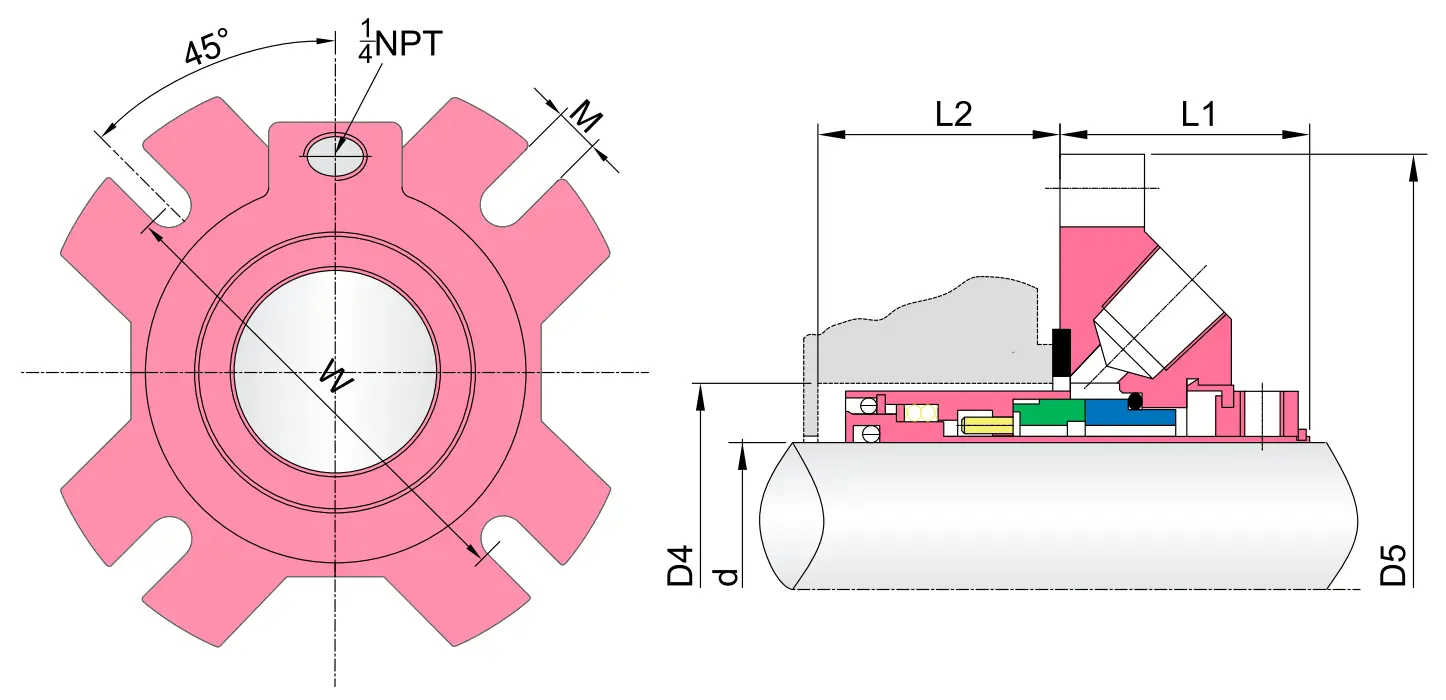

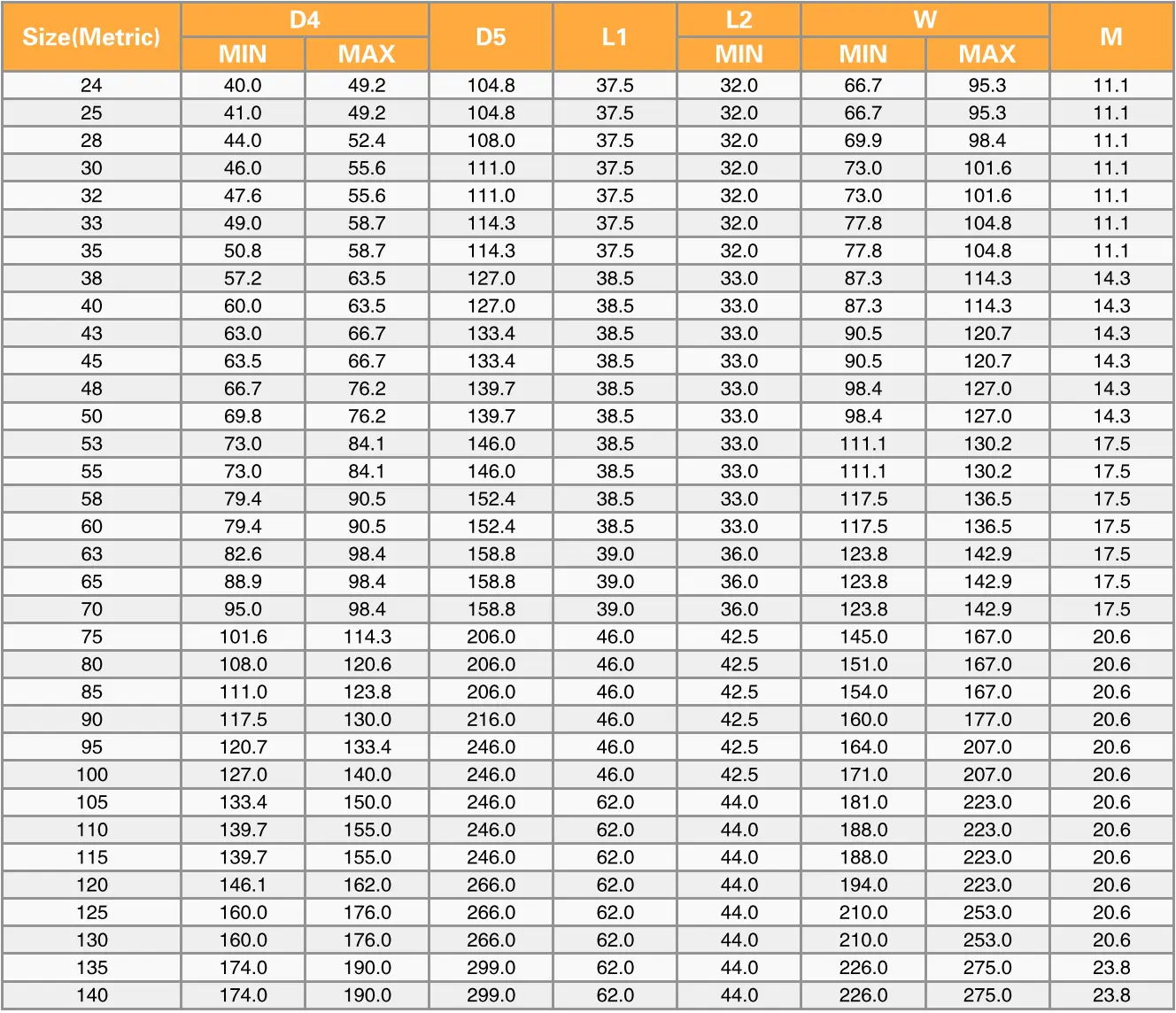

Installation Dimensions
+
The GW GU cartridge is manufactured to the standard dimensions of the John Crane Type 4610 series, ensuring direct interchangeability in compatible equipment. It is available in a comprehensive range of metric and inch shaft sizes to fit common pump and mixer seal chambers.
For detailed dimensional drawings and specific size confirmation, please provide your equipment model or shaft diameter to our technical support team.
