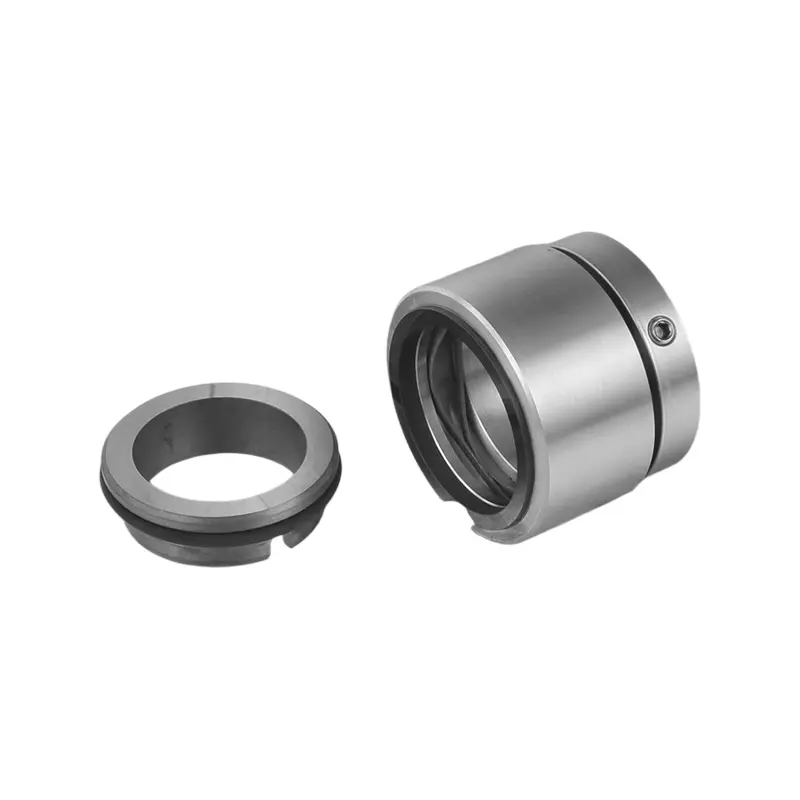

GW GNZ O-ring Mounted Wave Spring Mechanical Seal for SIHI pump
Product Description
+
This component is designed with an “O” ring mounted sealing surface with sinusoidal wave spring. The drive of the shaft is fastened using set screws tightened with the hex key. The wave spring design provides even closing forces around the sealing face circumference, which lead to improved pV capability, outstanding axial movement capabilities and higher sealing performance.
It is specifically designed for applications where the pumped fluid contains solids or is highly viscous.
It is specifically designed for applications where the pumped fluid contains solids or is highly viscous.
Equivalent Products
+
• Sterling®: GNZ
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
Material and Operating Range
+
Material:
• Rotary ring: Carbon/SiC/TC
• Stationary ring: 99%Ceramic/SiC/TC
• O-ring: VITON/NBR/EPDM
• Spring and Metal Parts: SUS304/SUS316
* Customization for this part is supported, please contact us for changing parameters and materials.
Operating Range:
• Temperature: -20 ℃～180℃
• Pressure: ≤2MPa
• Speed: ≤20m/s
• Performance: Moderately corrosive
Mediums:
• Oil
• Water
• Sewage water
• Other moderately corrosive fluids

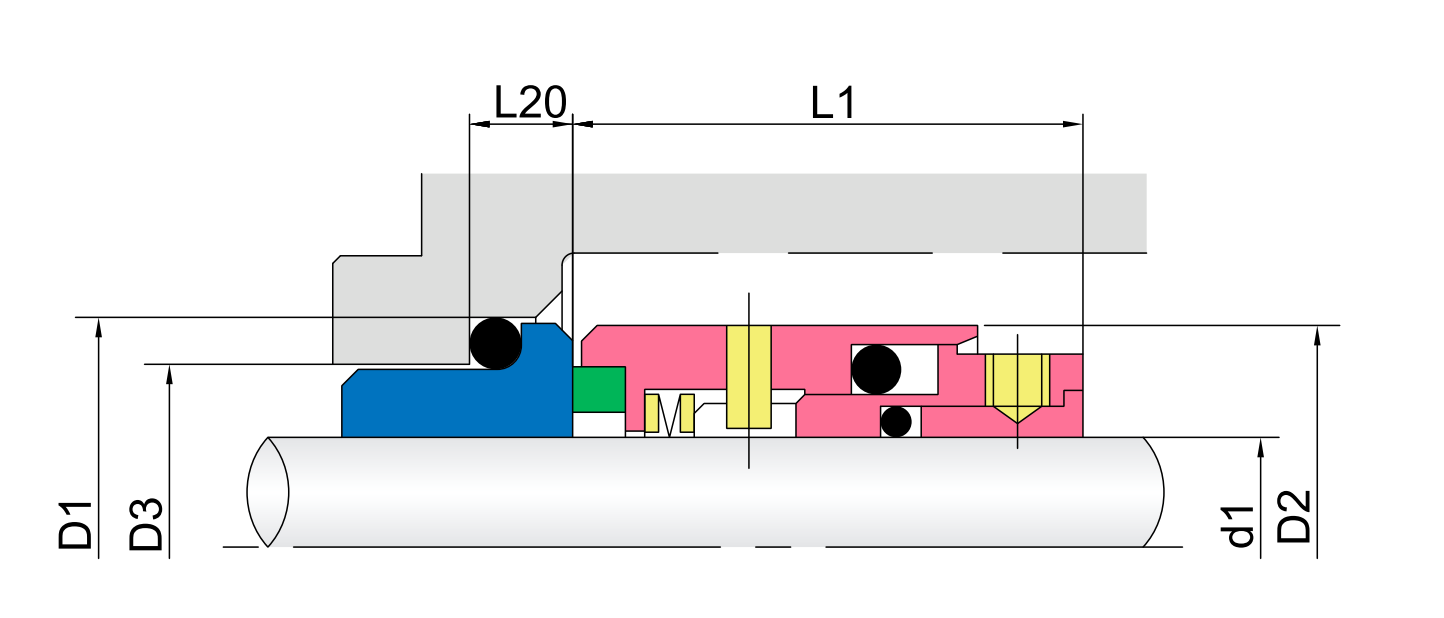

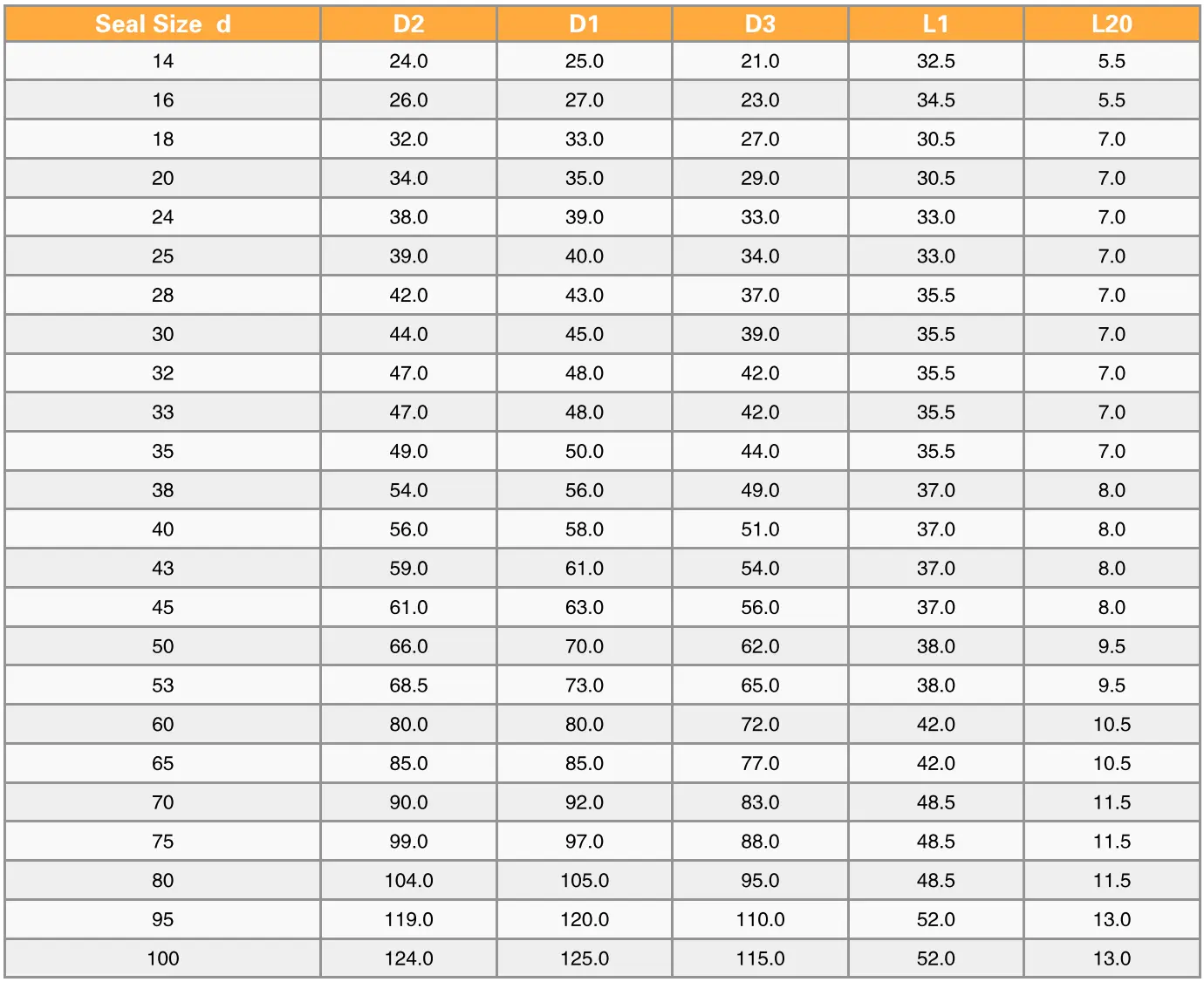

Installation Dimensions
+
description2
