GW 58B Mechanical Component Seal for Sabroe SAB Screw Compressor

Features:

•  O'-ring mounted

•  Balanced

•  Pusher type

•  Bi-directional

•  Step-shaft layout

•  Multi-spring

This component is suitable for medium and heavy-purpose applications with metric stepped-shaft sizes. It is mainly applied for petrochemical, chemical and pharmaceutical industry, such as chemical processing, oil refining, petrochemical engineering, while also suitable for sewage treatment, power generation, pulp and paper industry.

    Contact us

    DETAILS & SPECIFICATIONS

    Product Description

    +
    This component is designed with an “O” ring mounted sealing surface with multi-springs. It can rotate in both directions, and the drive of the shaft is fastened using set screws tightened with the hex key. The multi-springs and step-shaft design provide even closing forces around the sealing face circumference, which lead to improved pV capability and higher sealing performance.
    The narrow-designed radial profile is suitable for European DIN24960/En12756 metric seal chamber.
    It is suited for pump or devices such as the Sabroe SAB 128 Mk1, Sabroe SAB 128 Mk2, Sabroe SAB 128 Mk3 and others.

    Equivalent Products

    +
    • AESseal®: M04S
    • Vulcan®: 1659BS
    • EagleBurgmann®: BT-C5. KB
    • JohnCrane®: 58B
    • Sterling®: 259BS
    • Lidering®: 120

    Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.

    Material and Operating Range

    +

    Material:
    • Rotary ring: Carbon/SiC/TC
    • Stationary ring: 99%Ceramic/SiC/TC
    • O-ring: VITON/NBR/EPDM
    • Spring and Metal Parts: SUS304/SUS316

    * Stationary Seat: GW BP
    * Customization for this part is supported, please contact us for changing parameters and materials.


    Operating Range:
    • Temperature: -40 ℃～230℃
    • Pressure: ≤6 MPa
    • Speed: ≤25m/s
    • Performance: Wear


    Mediums:
    • Oil
    • Water
    • Sewage water
    • Amorphism acid
    • Alkali, salt, and other organic solvents.
    • Pulp and paper

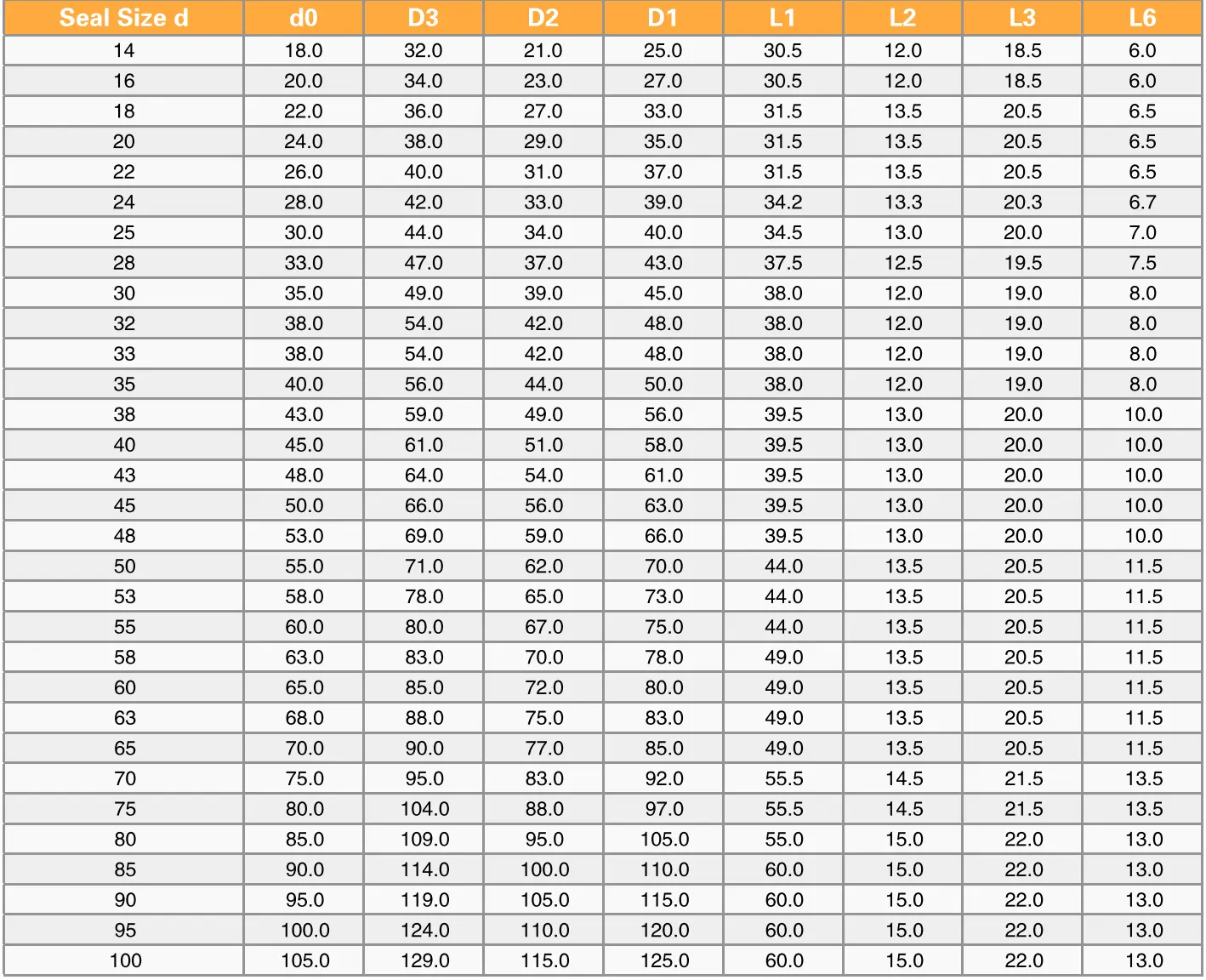

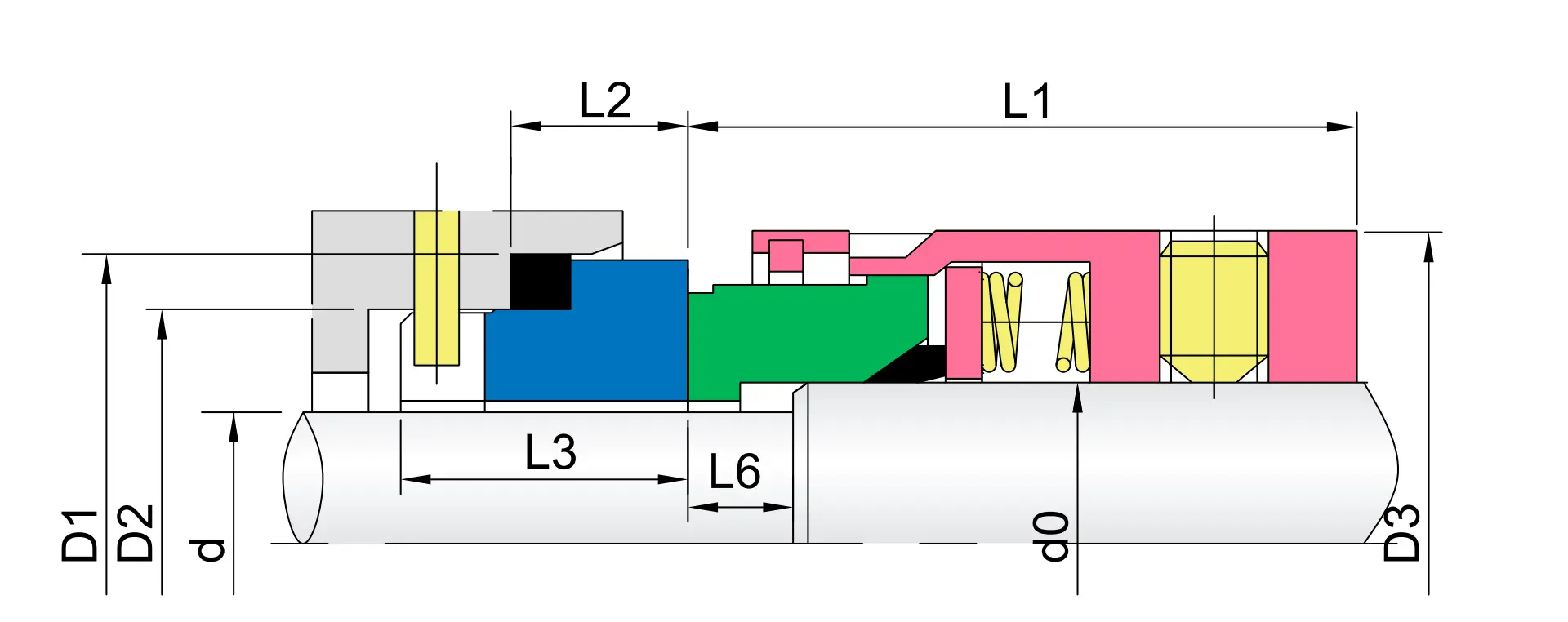

    Installation Dimensions

    +
    58B58B-1
