APV Pump Seal
See our full catalog or contact us for more product options
01
GW 260A OEM Mechanical Seal for APV Puma Pumps Size 1.0” and 1.5”
Overview:
The GW 260A is a precision-engineered OEM mechanical seal designed as a direct replacement for APV Puma series centrifugal pumps with 1.0” and 1.5” shaft sizes. It ensures reliable performance in demanding hygienic and industrial processing applications.
Product Description
+
The GW 260A mechanical seal maintains original equipment specifications while offering enhanced durability in challenging environments. Its optimized design handles viscous products, suspended solids, and mild abrasives commonly encountered in food, dairy, and pharmaceutical processing.
The precision-lapped sealing faces (carbon versus silicon carbide/ceramic) ensure minimal leakage and provide extended service life under rigorous conditions, including thermal cycling and frequent sterilization cycles. The cartridge-style construction simplifies installation, eliminates the need for complex setting measurements, and ensures immediate operational readiness. This design guarantees reliable performance with minimal friction and power consumption, reducing maintenance needs and total cost of ownership.
The precision-lapped sealing faces (carbon versus silicon carbide/ceramic) ensure minimal leakage and provide extended service life under rigorous conditions, including thermal cycling and frequent sterilization cycles. The cartridge-style construction simplifies installation, eliminates the need for complex setting measurements, and ensures immediate operational readiness. This design guarantees reliable performance with minimal friction and power consumption, reducing maintenance needs and total cost of ownership.
Typical Applications
• Food, dairy, and beverage processing systems
• Pharmaceutical and cosmetic manufacturing
• Chemical and solvent transfer operations
• CIP (Clean-in-Place) and SIP (Steam-in-Place) processes
Cross-Reference & Compatibility
+
• Compatible Pumps: APV Puma series (1.0” and 1.5” shaft sizes)
• Equivalent Models: AESseal®: BP06U (metal bellows seal alternative)
• Equivalent Models: AESseal®: BP06U (metal bellows seal alternative)
Material and Operating Range
+
Materials & Specifications:

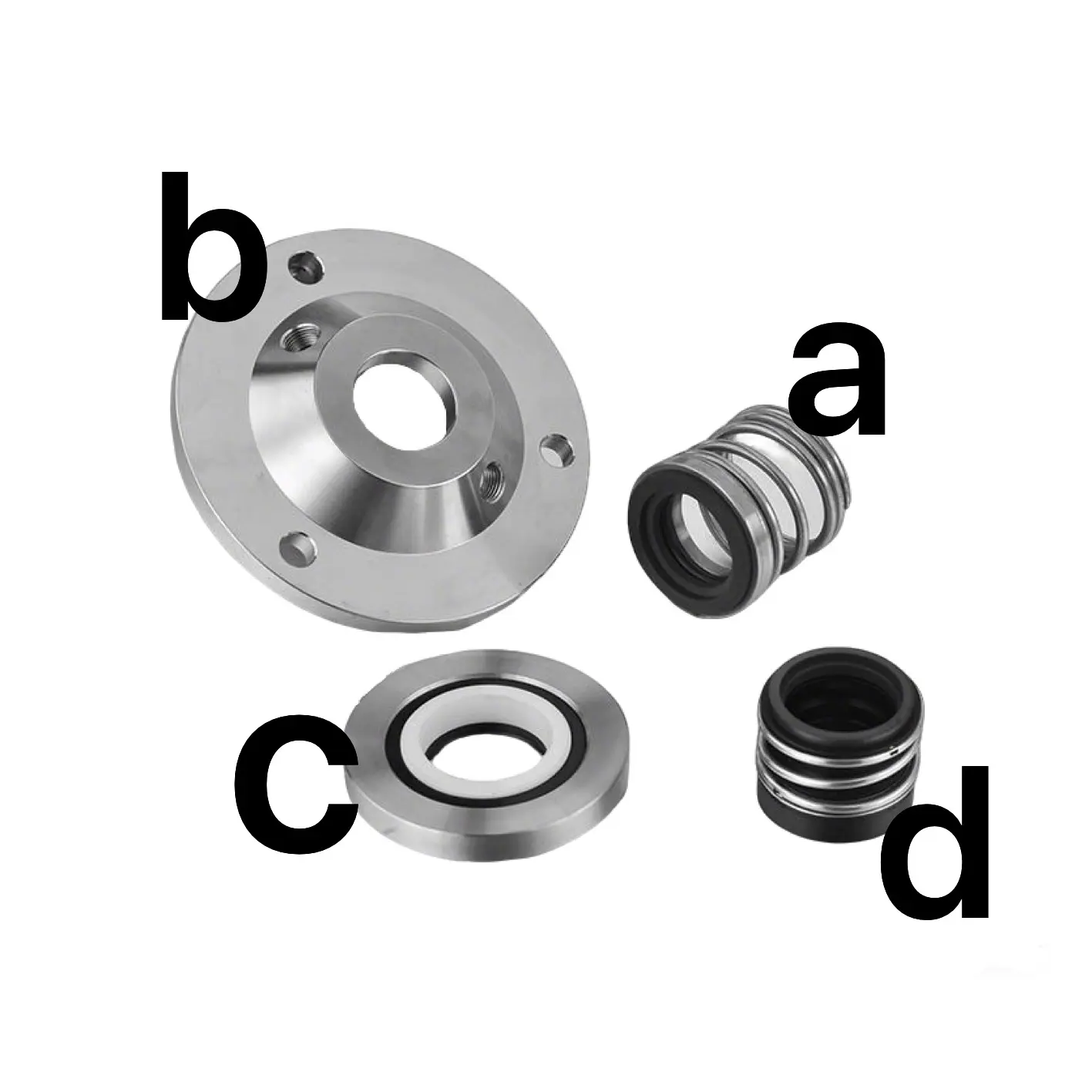

• a.d. Rotary ring: Carbon
• b.c. Stationary ring: SUS304/SUS316/SiC
• Secondary seal: VITON/NBR/EPDM
• Spring and Metal Parts: SUS304/SUS316
• Metallic Components: SUS304/SUS316 stainless steel
*Custom material configurations available upon request.
Operating Parameters:
• Temperature Range: -20°C to +150°C (-4°F to 302°F)
• Pressure Limit: 1.5 MPa (15 bar)
• Rotational Speed: ≤ 3000 RPM
• Suitable Media: Water, steam, dairy products, beverages, pharmaceuticals, mild chemicals, and process fluids
• a.d. Rotary ring: Carbon
• b.c. Stationary ring: SUS304/SUS316/SiC
• Secondary seal: VITON/NBR/EPDM
• Spring and Metal Parts: SUS304/SUS316
• Metallic Components: SUS304/SUS316 stainless steel
*Custom material configurations available upon request.
Operating Parameters:
• Temperature Range: -20°C to +150°C (-4°F to 302°F)
• Pressure Limit: 1.5 MPa (15 bar)
• Rotational Speed: ≤ 3000 RPM
• Suitable Media: Water, steam, dairy products, beverages, pharmaceuticals, mild chemicals, and process fluids

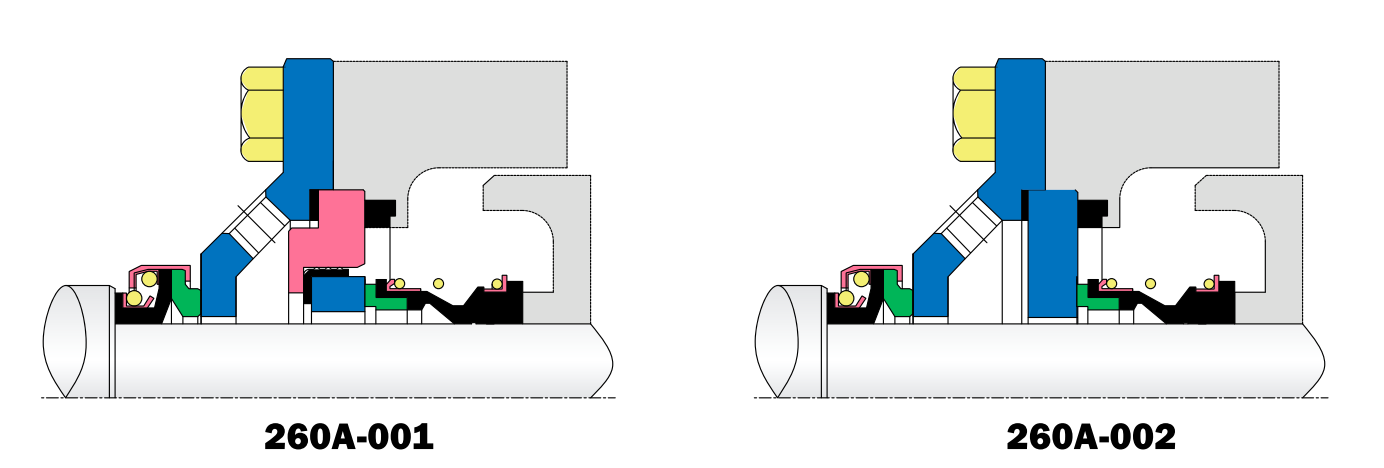

Installation Dimensions
+
• Standard Shaft Sizes: 1.0” and 1.5”
• Comprehensive installation drawings and technical support available
• Custom solutions offered for non-standard shaft dimensions
• Comprehensive installation drawings and technical support available
• Custom solutions offered for non-standard shaft dimensions
