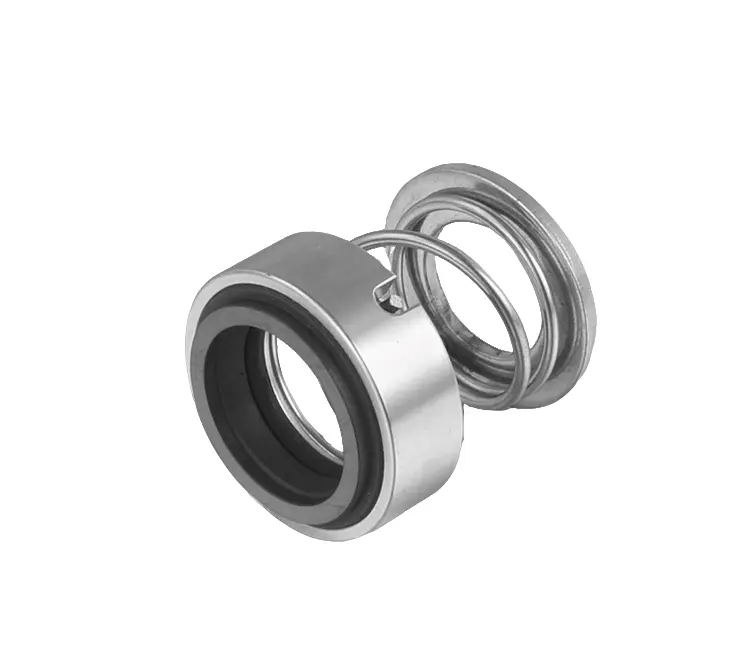

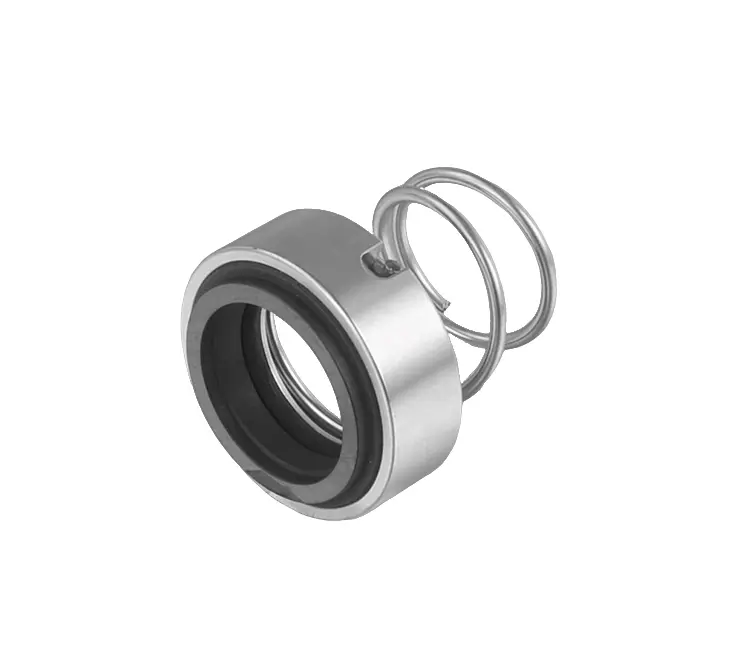

GW 208 Inboard Rotary for Fristam Pump Seals 30mm&35mm
Description:
High-performance inboard rotary component designed for the GW 208 mechanical seal assembly. Engineered to provide reliable rotational sealing in Fristam® pump systems, available in configurations with or without an integrated base plate for installation flexibility.Ideal for use in Fristam® centrifugal and rotary pumps within industries such as food and beverage, pharmaceuticals, cosmetics, and chemical processing. The GW208/11 and GW208/12 rotaries provide dependable performance in applications requiring stringent hygiene, thermal cycling, and mechanical durability.
Product Detail
Available with or without a base plate, these rotaries offer adaptability to different pump configurations and retrofit requirements. The inclusion of high-grade face materials ensures compatibility with a wide range of media while extending operational lifespan through wear resistance and thermal stability.
Equivalent Products
These models provide direct OEM replacement with assured interchangeability, offering comparable—and often enhanced—performance at a competitive cost. All components are produced under an ISO9001-certified quality system, ensuring repeatability and compliance with industry specifications.
Material and Operating Range
Material:
• Housing/Base Plate: Stainless Steel (SUS304/SUS316)
• Primary Sealing Face: Carbon / Silicon Carbide (SiC) / Tungsten Carbide (TC)
• Optional elastomer and secondary sealing elements available upon request
* Custom material combinations, coatings, and dimensional modifications can be engineered to meet specific application needs.
Operating Range:
• Temperature: -30℃ to +180℃ (standard); extended ranges configurable
• Pressure: Suitable for systems up to 1.6 MPa
• Rotational Speed: Optimized for peripheral speeds ≤ 18 m/s
Compatible Media:
• Food, dairy, and beverage products
• Pharmaceutical and bioprocessing fluids
• Chemical solutions, solvents, and oils
• Hot water, steam, and cleaning-in-place (CIP) agents
Installation Dimensions
- Custom diameters and lengths can be manufactured based on request—contact us for tailored quotations.
