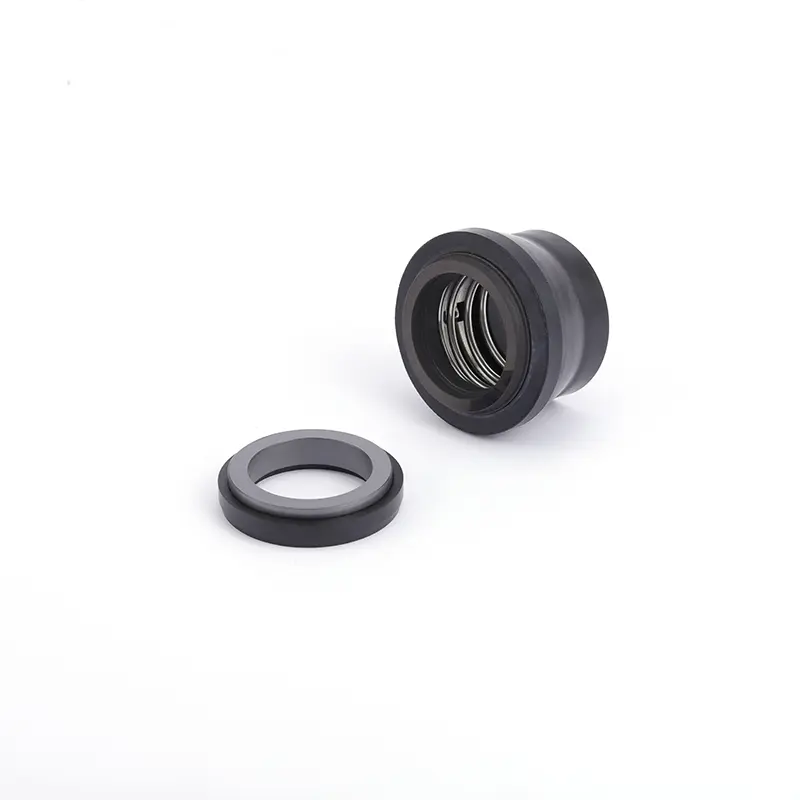

GW 17B Rotary Seal for Alfa Laval® LKR Agitators
This robust mechanical seal is specifically designed to withstand the demanding conditions of industrial mixing and agitation applications. It is particularly well-suited for:
• Pharmaceutical and biotechnology processing
• Food, dairy, and beverage production
• Chemical and cosmetic manufacturing
• Sanitary processing systems with CIP requirements
Product Detail
+
The GW 17B is a high-performance OEM mechanical seal specifically configured for Alfa Laval® LKR series agitators. Its elastomer bellows design effectively protects the spring and internal components from process media, making it ideal for applications involving viscous fluids, abrasive particles, or crystallizing materials. The innovative bellows structure also prevents clogging and material buildup in demanding mixing environments.
The seal incorporates premium sealing face materials including reaction-bonded silicon carbide and fine-grained tungsten carbide combinations. These advanced materials ensure exceptional wear resistance, thermal stability, and extended service life in continuous operation under variable speeds and loads. The bellows construction effectively compensates for shaft deflection, runout, and vibration common in high-torque agitation applications, maintaining consistent sealing performance and leakage-free operation throughout its operational lifespan.
The seal incorporates premium sealing face materials including reaction-bonded silicon carbide and fine-grained tungsten carbide combinations. These advanced materials ensure exceptional wear resistance, thermal stability, and extended service life in continuous operation under variable speeds and loads. The bellows construction effectively compensates for shaft deflection, runout, and vibration common in high-torque agitation applications, maintaining consistent sealing performance and leakage-free operation throughout its operational lifespan.
Compatibility & Equivalents
+
• Target Equipment: Alfa Laval® LKR series agitators
• Vulcan® Equivalent: 17B
• Vulcan® Equivalent: 17B
Material and Operating Range
+
Materials of Construction:
• Rotary Ring: Carbon, Silicon Carbide (SiC), or Tungsten Carbide (TC)
• Stationary Ring: SiC or TC
• Secondary Seals: VITON®, EPDM, or NBR
• Metallic Components: SUS304/SUS316 stainless steel
• Bellows Material: EPDM or FPM (Standard)
* Custom material combinations and special configurations are available for specific application requirements.
Operating Range:
• Temperature: -20°C to +150°C (with standard elastomers)
• Pressure: ≤ 1.0 MPa (10 bar)
• Speed: ≤ 20 m/s
• Applicable Media: Water, pharmaceuticals, food products, chemical solutions, CIP fluids, and other process media compatible with material selection.
• Rotary Ring: Carbon, Silicon Carbide (SiC), or Tungsten Carbide (TC)
• Stationary Ring: SiC or TC
• Secondary Seals: VITON®, EPDM, or NBR
• Metallic Components: SUS304/SUS316 stainless steel
• Bellows Material: EPDM or FPM (Standard)
* Custom material combinations and special configurations are available for specific application requirements.
Operating Range:
• Temperature: -20°C to +150°C (with standard elastomers)
• Pressure: ≤ 1.0 MPa (10 bar)
• Speed: ≤ 20 m/s
• Applicable Media: Water, pharmaceuticals, food products, chemical solutions, CIP fluids, and other process media compatible with material selection.

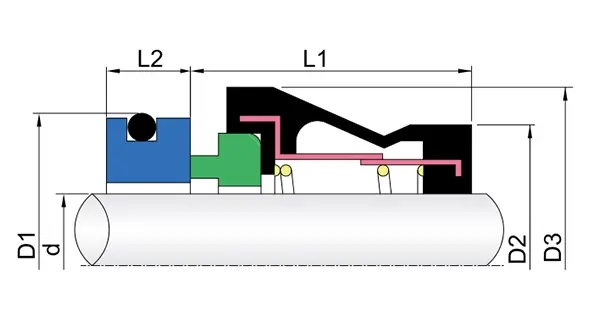

Installation Dimensions
+
Standard Seal Sizes: 20mm, 30mm, 40mm
For non-standard dimensions or detailed CAD drawings, please contact our technical team with your specific agitator model and shaft specifications.
