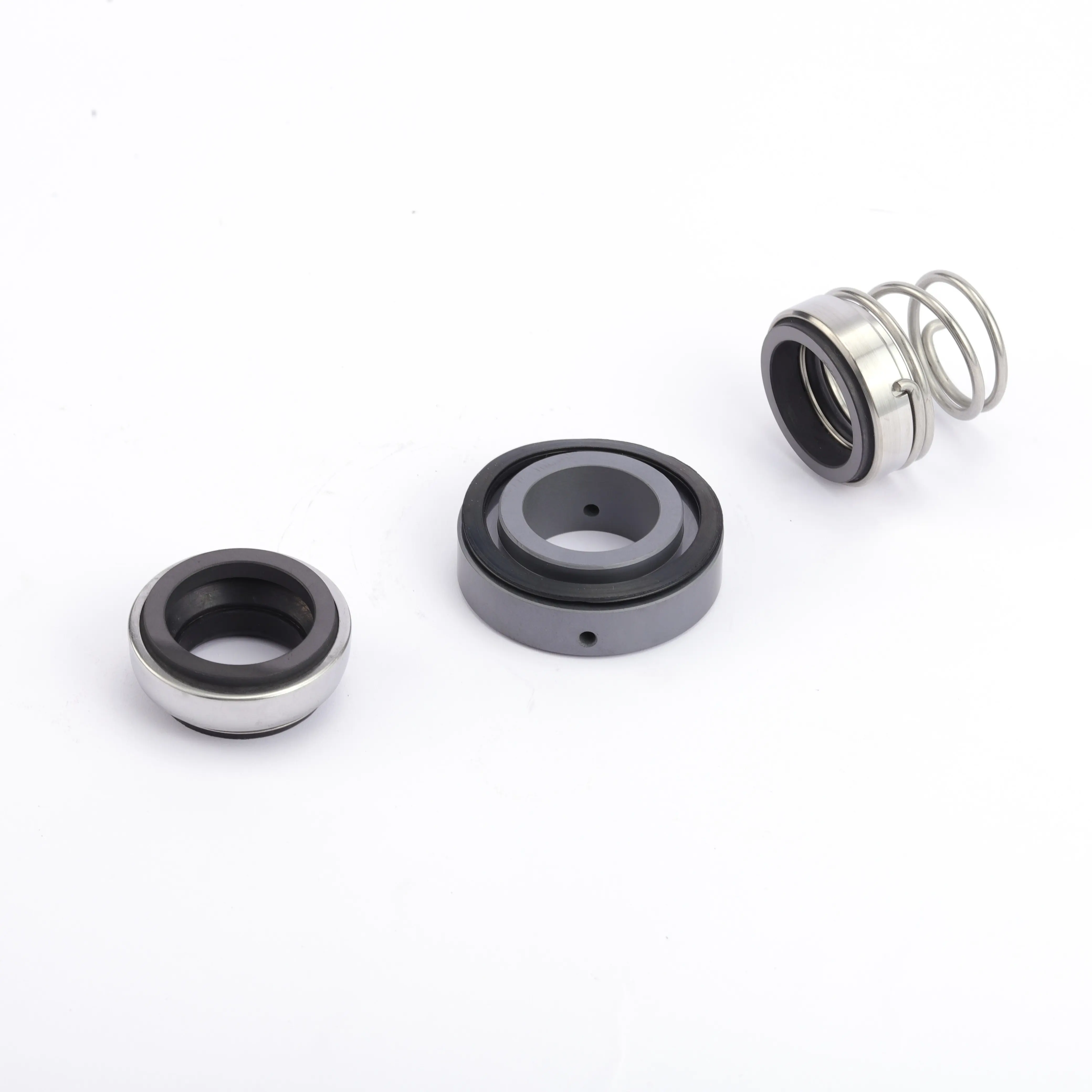

GW 160A Hygienic Application Seal for APV® W+ Series Pumps
Overview
The GW 160A is a precision-engineered OEM mechanical seal designed as a direct replacement for APV® W+ series pumps, including models such as the W100 and W130. It is engineered to deliver reliable sealing performance in demanding hygienic processing applications where product purity and operational integrity are critical.
Product Detail
+
The GW 160A utilizes a robust, balanced taper spring mechanism that maintains optimal closing force on the seal faces, ensuring stable operation even with minor shaft deflection or run-out. This design is particularly effective in handling the thermal cycles and pressure variations common in process applications. The primary sealing faces, featuring a carbon rotary ring against a silicon carbide (SiC) stationary ring, provide exceptional wear resistance and long service life when processing fluids with mild abrasives or requiring thermal stability. The seal is supplied as a complete set of matched components, engineered for precise installation into the pump's seal chamber.
Typical Applications
Engineered as the direct replacement for APV® W+ series pumps in:
• Food, dairy, and beverage processing (e.g., milk, yogurt, juices, syrups, and liquid ingredients).
• Hygienic fluid transfer in pharmaceutical and cosmetic production.
• Systems requiring frequent high-temperature Clean-in-Place (CIP) and Steam-in-Place (SIP) sterilization.
Typical Applications
Engineered as the direct replacement for APV® W+ series pumps in:
• Food, dairy, and beverage processing (e.g., milk, yogurt, juices, syrups, and liquid ingredients).
• Hygienic fluid transfer in pharmaceutical and cosmetic production.
• Systems requiring frequent high-temperature Clean-in-Place (CIP) and Steam-in-Place (SIP) sterilization.
Cross-Reference & Compatibility
+
• Compatible Pumps: APV® W+ series centrifugal pumps (e.g., models W100, W130).
• Equivalent Models:
o AESseal®: T0WDU
o Sterling®: SWD
o Flowserve (Pac-Seal)®: AWD
• Equivalent Models:
o AESseal®: T0WDU
o Sterling®: SWD
o Flowserve (Pac-Seal)®: AWD
Material and Operating Range
+
Materials & Specifications:
• Primary Sealing Faces: Carbon Rotary Ring / Silicon Carbide (SiC) Stationary Ring.
• Secondary Seals: VITON® (FKM) or EPDM elastomers.
• Metallic Components: SUS304 or SUS316 stainless steel springs and hardware.
*Note: Custom material configurations (e.g., different elastomers, face material pairs) are available upon request for specific chemical or thermal needs.
Operating Ranges:
• Temperature: -20°C to +150°C (-4°F to 302°F), with specialized elastomers extending the range.
• Up to 10 bar (145 psi)
• Speed: Up to 3000 RPM
• Applicable Media: Water, steam, dairy products, beverages, mild acids, alkalis, and most hygienic process fluids.
• Primary Sealing Faces: Carbon Rotary Ring / Silicon Carbide (SiC) Stationary Ring.
• Secondary Seals: VITON® (FKM) or EPDM elastomers.
• Metallic Components: SUS304 or SUS316 stainless steel springs and hardware.
*Note: Custom material configurations (e.g., different elastomers, face material pairs) are available upon request for specific chemical or thermal needs.
Operating Ranges:
• Temperature: -20°C to +150°C (-4°F to 302°F), with specialized elastomers extending the range.
• Up to 10 bar (145 psi)
• Speed: Up to 3000 RPM
• Applicable Media: Water, steam, dairy products, beverages, mild acids, alkalis, and most hygienic process fluids.

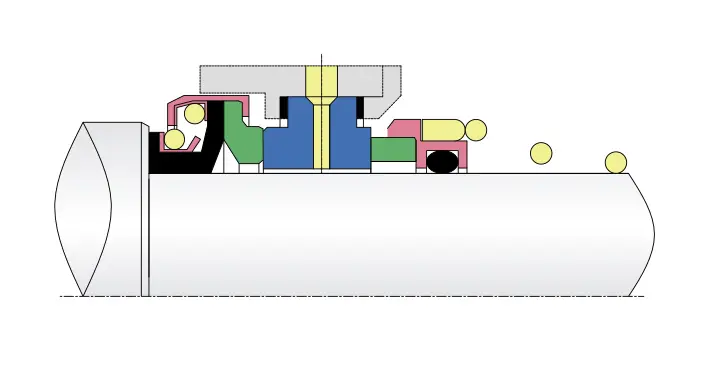

Installation Dimensions
+
• Standard Seal Sizes: 25 mm and 35 mm.• Comprehensive dimensional drawings and installation guidelines are provided with the product.
• For pumps with non-standard seal chamber dimensions or other specific requirements, custom solutions are available; please provide the pump model and full details for a quotation.
