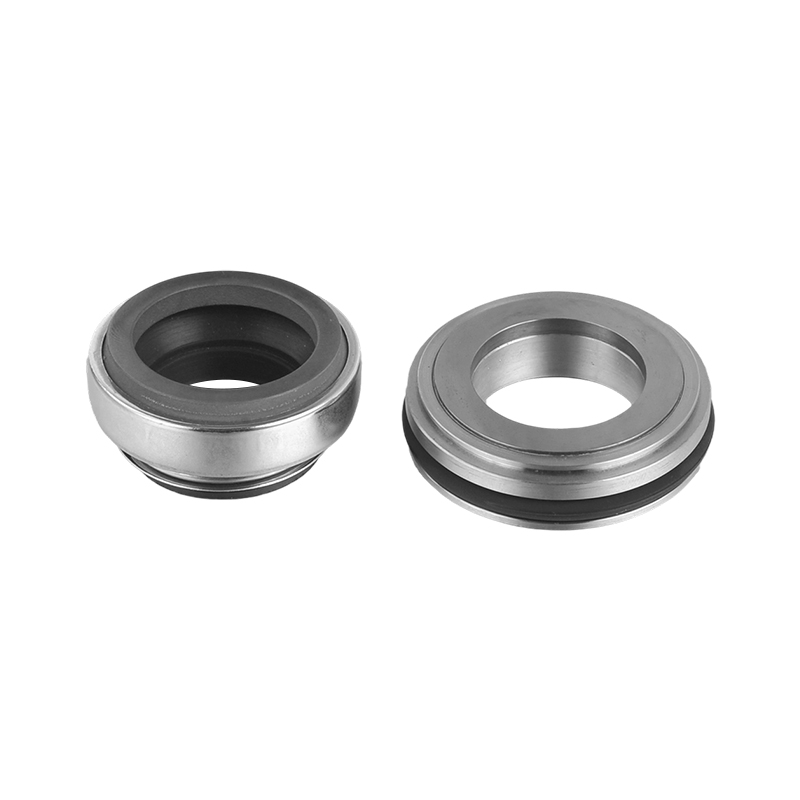

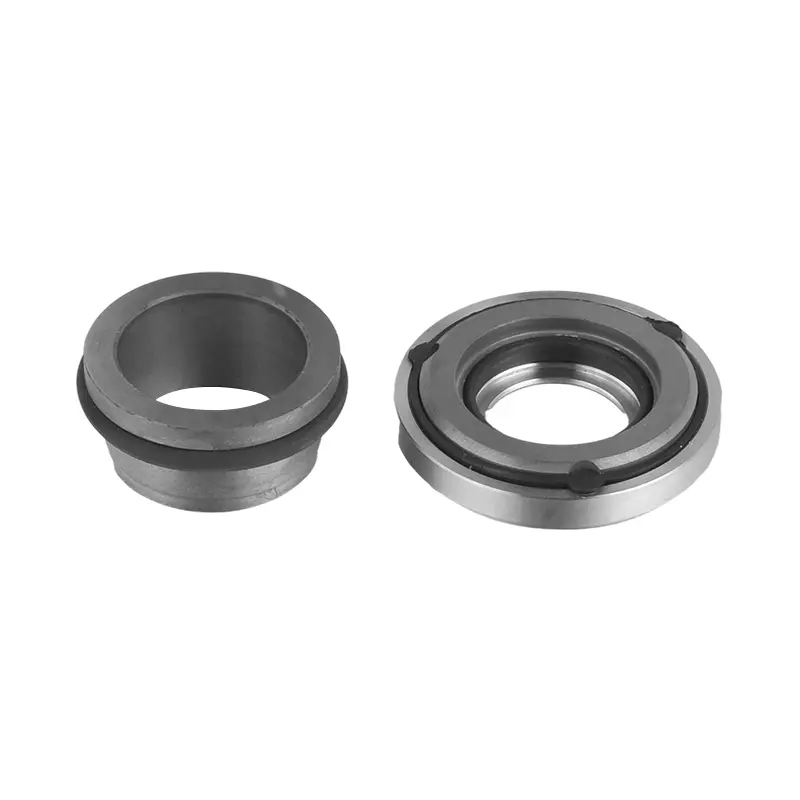

GW 05Z-F(L) Flygt Pump Seal – Universal Adaptor Series
Engineered as a high-performance sealing solution, this mechanical seal delivers reliable operation in abrasive and corrosive environments common to demanding sectors like mining, industrial slurry handling, and wastewater treatment plants.
Product Detail
+
Specifically engineered for Flygt pump sealing systems, the GW05Z-F(L) cartridge seal is designed for durability and ease of maintenance. Its unitized construction ensures positive face tracking, which is critical for maintaining seal integrity in high-speed and abrasive applications. The design philosophy aligns with industry demands for interchangeability and parameter matching, providing a reliable alternative that meets stringent performance requirements. This seal simplifies installation and replacement procedures, significantly reducing pump downtime and total cost of ownership.
Equivalent Products & Compatibility
+
• AESseal® Equivalent: T05Z series cartridge seal.
• Flygt Pump Compatibility: Serves as a universal adaptor for a wide range of Flygt pumps beyond standard models.
Our product is manufactured as a direct, cost-effective alternative to original equipment manufacturer (OEM) parts. It is produced under ISO9001 quality management standards to ensure consistent performance, reliability, and a long service life, fully meeting the specifications required for seamless integration.
• Flygt Pump Compatibility: Serves as a universal adaptor for a wide range of Flygt pumps beyond standard models.
Our product is manufactured as a direct, cost-effective alternative to original equipment manufacturer (OEM) parts. It is produced under ISO9001 quality management standards to ensure consistent performance, reliability, and a long service life, fully meeting the specifications required for seamless integration.
Construction Materials & Operating Range
+

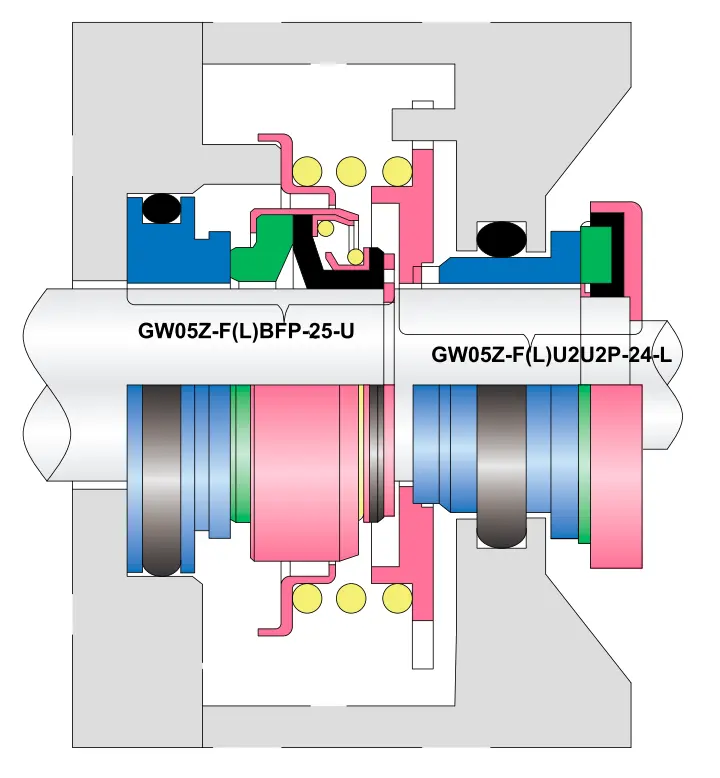

• Upper Seal: GW05Z-F(L)-BFP-25-U
• Rotary Face: Carbon
• Stationary Seat: Stainless Steel
• Elastomer: Nitrile (NBR)
• Lower Seal: GW05Z-F(L)-U2U2P-24-L
• Rotary Face: Tungsten Carbide (WC)
• Stationary Seat: Tungsten Carbide (WC)
• Elastomer: Nitrile (NBR)
Operating and Application Range
+
Custom material combinations and parameter configurations are supported. Contact our technical team for application-specific solutions.
• Operating Parameters:
• Pressure: ≤ 1.2 MPa (12 bar)
• Temperature Range: -30℃ to +200℃
• Maximum Surface Speed: ≤ 10 m/s
• Axial Movement Compensation: ± 1.0 mm
• Application Range:
• Municipal and Industrial Wastewater Treatment
• Mining, Mineral Processing, and Slurry Handling
• Chemical and Industrial Processing Plants
• General Pump Seal Replacement and Maintenance Services
• Operating Parameters:
• Pressure: ≤ 1.2 MPa (12 bar)
• Temperature Range: -30℃ to +200℃
• Maximum Surface Speed: ≤ 10 m/s
• Axial Movement Compensation: ± 1.0 mm
• Application Range:
• Municipal and Industrial Wastewater Treatment
• Mining, Mineral Processing, and Slurry Handling
• Chemical and Industrial Processing Plants
• General Pump Seal Replacement and Maintenance Services
Installation Dimensions
+
For precise installation drawings, dimensional details, and technical guidance to ensure perfect compatibility with your specific Flygt pump model, please request a quotation. Our engineering team will provide the necessary documentation and support.
