Elastomer Bellow Mechanical Seal -GW 60/65
• This component is ideally suitable for water pump applications, especially the low-pressure light water circulation duties.
• Type 60 and its stationary is suited to common UK imperial housing sizes.
• Type 65 and its stationary is suited to USA imperial housing sizes.
Product Description
+
This component is a compact and resilient elastomer bellow seal design. The drive of the shaft is achieved by the elastomer drive gromet which grips the shaft tightly from the contact point below the coil end.
It is compatible with the Ace Pump BCH-1000, Ace Pump BCH-100S, Ace Pump BCH-133S and others.
It is compatible with the Ace Pump BCH-1000, Ace Pump BCH-100S, Ace Pump BCH-133S and others.
Equivalent Products
+
• AESseal®: Type N-B04/B04U
• Vulcan®: Type 60/65
• JohnCrane®: Type 106
• EagleBurgmann®: Type BT-PNT
• Lidering®: Type 102/LRB02/LRB05
• U.S. Seal®: Type A/AV
• Roten®: 16
• Flowserve Pac. seal®: Type 16
• Flexaseal®: Type 6
• Sterling®: Type 216/217
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
• Vulcan®: Type 60/65
• JohnCrane®: Type 106
• EagleBurgmann®: Type BT-PNT
• Lidering®: Type 102/LRB02/LRB05
• U.S. Seal®: Type A/AV
• Roten®: 16
• Flowserve Pac. seal®: Type 16
• Flexaseal®: Type 6
• Sterling®: Type 216/217
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
Material and Operating Range
+
Material:
• Rotary ring: Carbon/SiC/TC
• Stationary ring: 99% Ceramic /SiC/TC
• O-ring: VITON/NBR/EPDM
• Spring and Metal Parts: SUS304/SUS316
* Customization for this part is supported, please contact us for changing parameters and materials.
Operating Range:
• Temperature: -20℃ to +120°℃
• Pressure: ≤0.5 MPa
• Speed: ≤10 m/s
Mediums:
• Water
• Sewage water

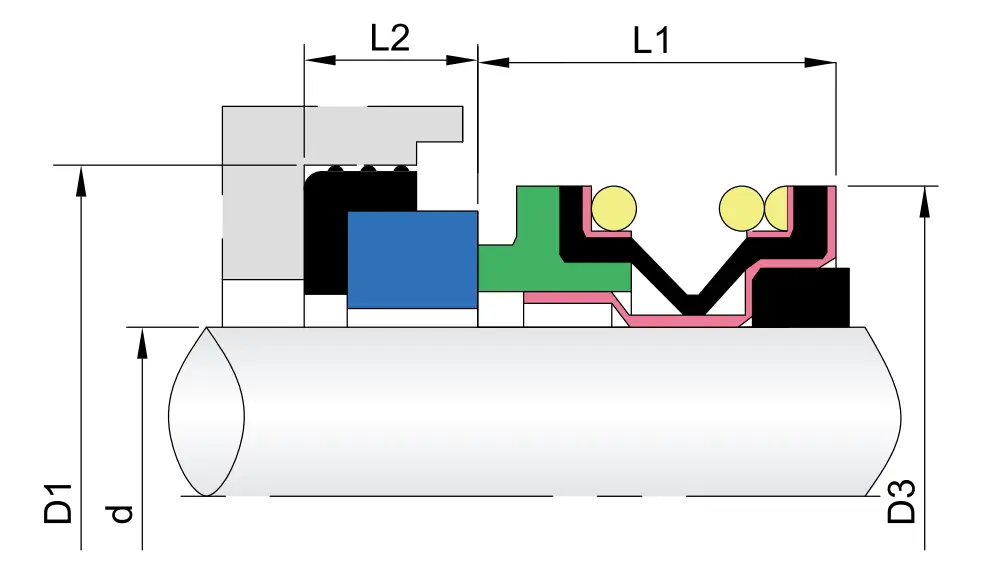

Installation Dimensions
+
| Seal Size d | D3 | D1 | L1 | L2 |
| 0.375 | 24 | 22.2 | 16 | 6.2 |
| 0.5 | 27 | 25.4 | 16.6 | 6.2 |
| 0.625 | 31 | 31.8 | 18.7 | 10.31 |
| 0.75 | 34.2 | 34.9 | 18.7 | 10.31 |
| 1 | 43 | 41.3 | 20.6 | 11.1 |
