Single-Spring Mechanical Seals
01

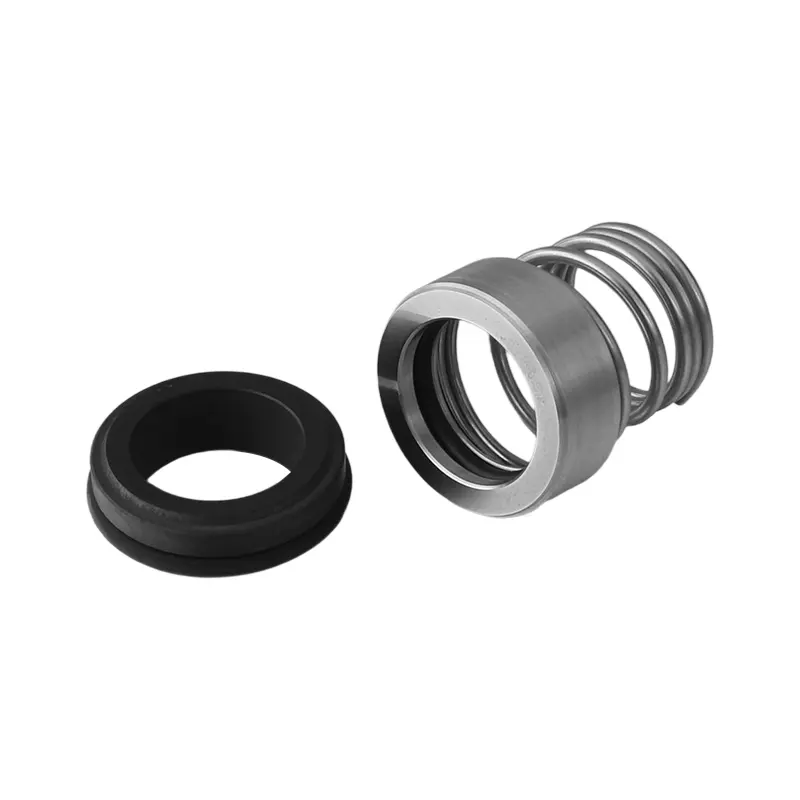

DIN Stand Conical Spring Seal Vulcan 12DIN for Centrifugal Water Pump
Product Description
+
This component is a single pusher-type seal. It is resilient, compatible and easy to install. It is designed with an “O” ring mounted sealing surface in a narrow section stainless steel head. The sealing drive is provided by a conical spring which clamps the device shaft tightly at the drive end.
The difference between with GW120 is the stationary seat to coordinate with DIN housing sizes.
The difference between with GW120 is the stationary seat to coordinate with DIN housing sizes.
Equivalent Products
+
• AESseal®: N-T03D
• Roten®: UNITEN2
• Vulcan®: Type 12. DIN
• EagleBurgmann®: BT-RN.NU
• Sterling®: SU2
• Flowserve®: Type 42D
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
• Roten®: UNITEN2
• Vulcan®: Type 12. DIN
• EagleBurgmann®: BT-RN.NU
• Sterling®: SU2
• Flowserve®: Type 42D
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
Material and Operating Range
+
Material:
• Rotary ring: SUS304/SiC/TC
• Stationary ring: Carbon /SiC/TC
• O-ring: VITON/NBR/EPDM
• Spring and Metal Parts: SUS304/SUS316
* Customization for this part is supported, please contact us for changing parameters and materials.
Operating Range:
• Temperature: -40 ℃～200℃
• Pressure: ≤1.0MPa
• Speed: ≤15m/s
• Performance: Wear
Mediums:
• Water
• Oil
• Food
• Chemical products
• Hydrocarbons
• Weak acid
• Alkali

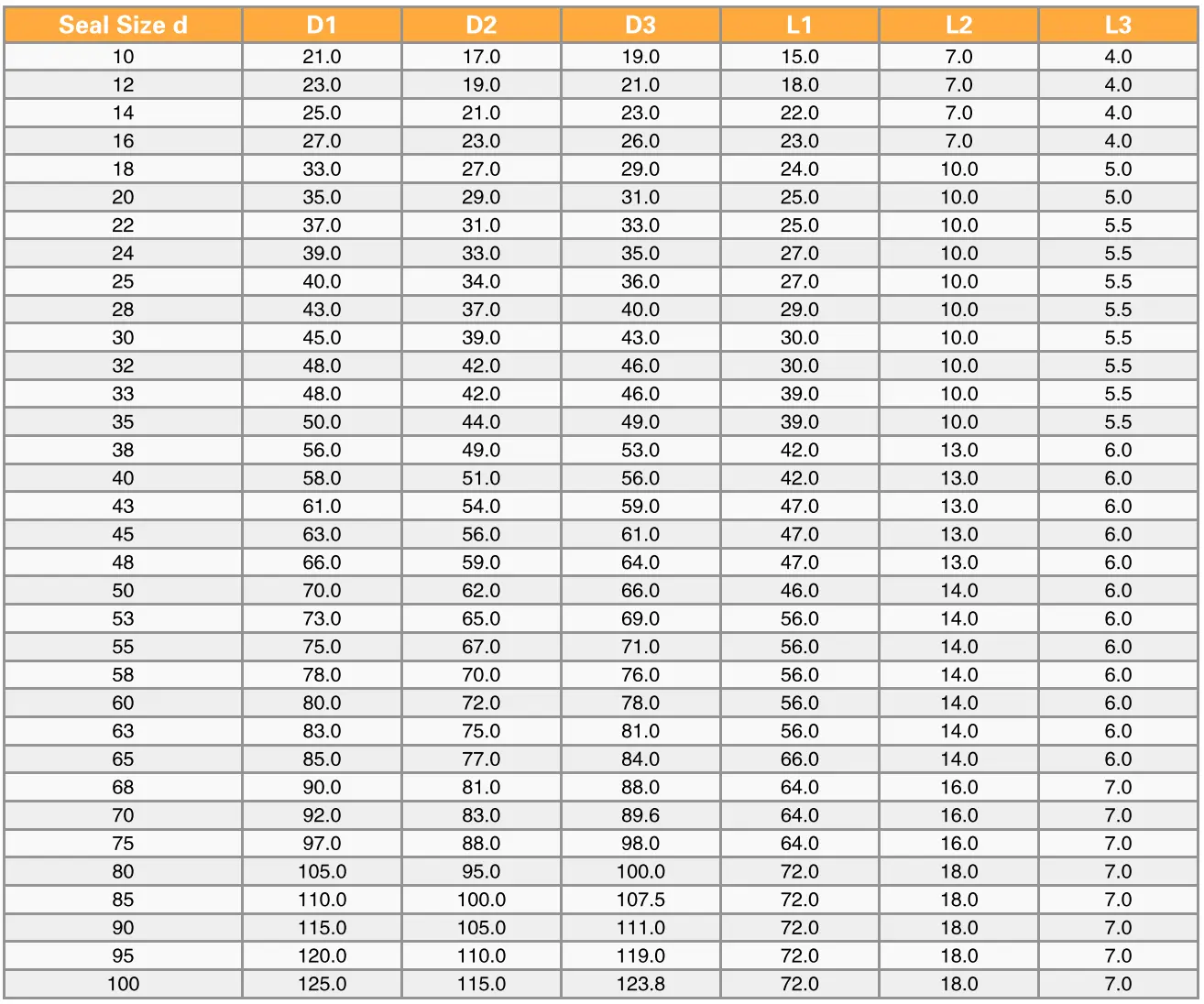

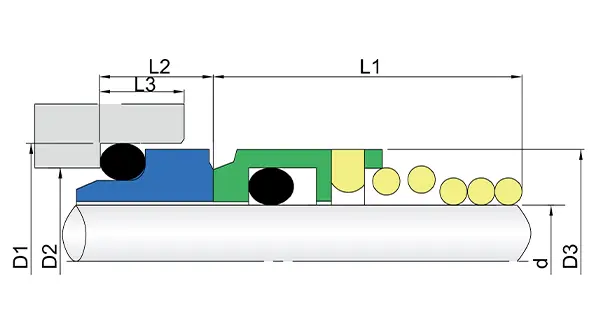

Installation Dimensions
+
description2
