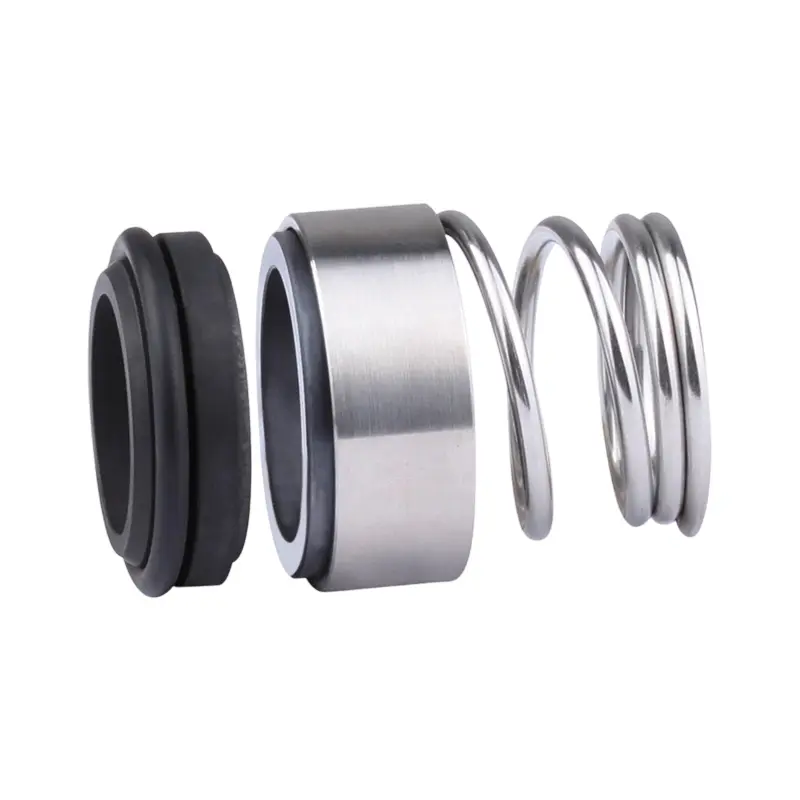

DIN 24960 Water Pump Seal Vulcan 7D Balanced Pusher Type
This single spring mechanical seal is engineered for leak-free performance in pump mechanical seal applications:
• Water Pump Seals: Municipal/industrial cooling systems
• Sewage Pump Seals: Wastewater treatment plants
• Oil Seals: Hydraulic systems & lubrication pumps
• Chemical Pumps: Moderate corrosion resistance
Combines corrosion-resistant materials with maintenance-friendly installation to extend mechanical seal life under moderate corrosion.
Product Description
• Vibration Control: VITON®/NBR/EPDM elastomers absorb axial movement for pump shaft sealing
• Precision Face Contact: Conical spring ensures constant pressure for rotating equipment seals
• Rapid Cartridge Installation: Enables in-pump seal replacement without disassembly
This single spring mechanical seal is ideal for pump mechanical seal replacement in light-to-medium industrial applications including cooling water, wastewater pumps, slurry pumps and hydraulic oil sealing (-30°C~200°C). Customizable single spring seal parts available.
*Complete mechanical seal cartridge includes DIN24960-compliant stationary seat.
Equivalent Products
• Roten®: Uniten® 5
• Vulcan®: Type 7D
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
Material and Operating Range
Material:
• Rotary ring: Ceramic/Carbon/SiC/TC
• Rotary ring: Ceramic/Carbon/SiC/TC
• O-ring: VITON/NBR/EPDM
• Spring and Metal Parts: SUS304/SUS316
* Support custom mechanical seal designs, please contact us for changing parameters and materials.
Operating Range:
• Temperature: -30 ℃～200℃
• Pressure: ≤0.8MPa (Low pressure)
• Speed: ≤18m/s (General Speed)
• Performance: Moderately corrosive
Compatible Mediums:
• Oil (hydraulic/lubricating)
• Water (cooling/process)
• Sewage
• Moderately corrosive content

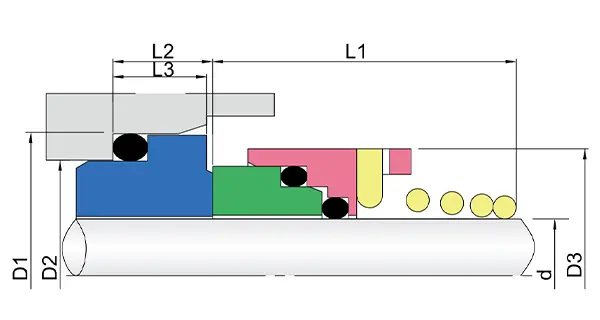

Installation Dimensions
| Seal Size d | D1 | D2 | D3 | L1 | L2 | L3 |
| 10 | 21.0 | 17.0 | 19.0 | 15.0 | 7.0 | 4.0 |
| 12 | 23.0 | 19.0 | 21.0 | 18.0 | 7.0 | 4.0 |
| 14 | 25.0 | 21.0 | 23.0 | 22.0 | 7.0 | 4.0 |
| 16 | 27.0 | 23.0 | 26.0 | 23.0 | 7.0 | 4.0 |
| 18 | 33.0 | 27.0 | 29.0 | 24.0 | 10.0 | 5.0 |
| 20 | 35.0 | 29.0 | 31.0 | 25.0 | 10.0 | 5.0 |
| 22 | 37.0 | 31.0 | 33.0 | 25.0 | 10.0 | 5.0 |
| 24 | 39.0 | 33.0 | 35.0 | 27.0 | 10.0 | 5.0 |
| 25 | 40.0 | 34.0 | 36.0 | 27.0 | 10.0 | 5.0 |
| 28 | 43.0 | 37.0 | 40.0 | 29.0 | 10.0 | 5.0 |
| 30 | 45.0 | 39.0 | 43.0 | 30.0 | 10.0 | 5.0 |
| 32 | 48.0 | 42.0 | 46.0 | 30.0 | 10.0 | 5.0 |
| 33 | 48.0 | 42.0 | 46.0 | 39.0 | 10.0 | 5.0 |
| 35 | 50.0 | 44.0 | 49.0 | 39.0 | 10.0 | 5.0 |
| 38 | 56.0 | 49.0 | 53.0 | 42.0 | 13.0 | 6.0 |
| 40 | 58.0 | 51.0 | 56.0 | 42.0 | 13.0 | 6.0 |
| 43 | 61.0 | 54.0 | 59.0 | 47.0 | 13.0 | 6.0 |
| 45 | 63.0 | 56.0 | 61.0 | 47.0 | 13.0 | 6.0 |
| 48 | 66.0 | 59.0 | 64.0 | 47.0 | 13.0 | 6.0 |
| 50 | 70.0 | 62.0 | 66.0 | 46.0 | 14.0 | 6.0 |
| 53 | 73.0 | 65.0 | 69.0 | 56.0 | 14.0 | 6.0 |
| 55 | 75.0 | 67.0 | 71.0 | 56.0 | 14.0 | 6.0 |
| 58 | 78.0 | 70.0 | 76.0 | 56.0 | 14.0 | 6.0 |
| 60 | 80.0 | 72.0 | 78.0 | 56.0 | 14.0 | 6.0 |
| 63 | 83.0 | 75.0 | 81.0 | 56.0 | 14.0 | 6.0 |
| 65 | 85.0 | 77.0 | 84.0 | 66.0 | 14.0 | 6.0 |
| 68 | 90.0 | 81.0 | 88.0 | 64.0 | 16.0 | 7.0 |
| 70 | 92.0 | 83.0 | 89.6 | 64.0 | 16.0 | 7.0 |
| 75 | 97.0 | 88.0 | 98.0 | 64.0 | 16.0 | 7.0 |
| 80 | 105.0 | 95.0 | 100.0 | 72.0 | 18.0 | 7.0 |
| 85 | 110.0 | 100.0 | 107.5 | 72.0 | 18.0 | 7.0 |
| 90 | 115.0 | 105.0 | 111.0 | 72.0 | 18.0 | 7.0 |
| 95 | 120.0 | 110.0 | 119.0 | 72.0 | 18.0 | 7.0 |
| 100 | 125.0 | 115.0 | 123.8 | 72.0 | 18.0 | 7.0 |
