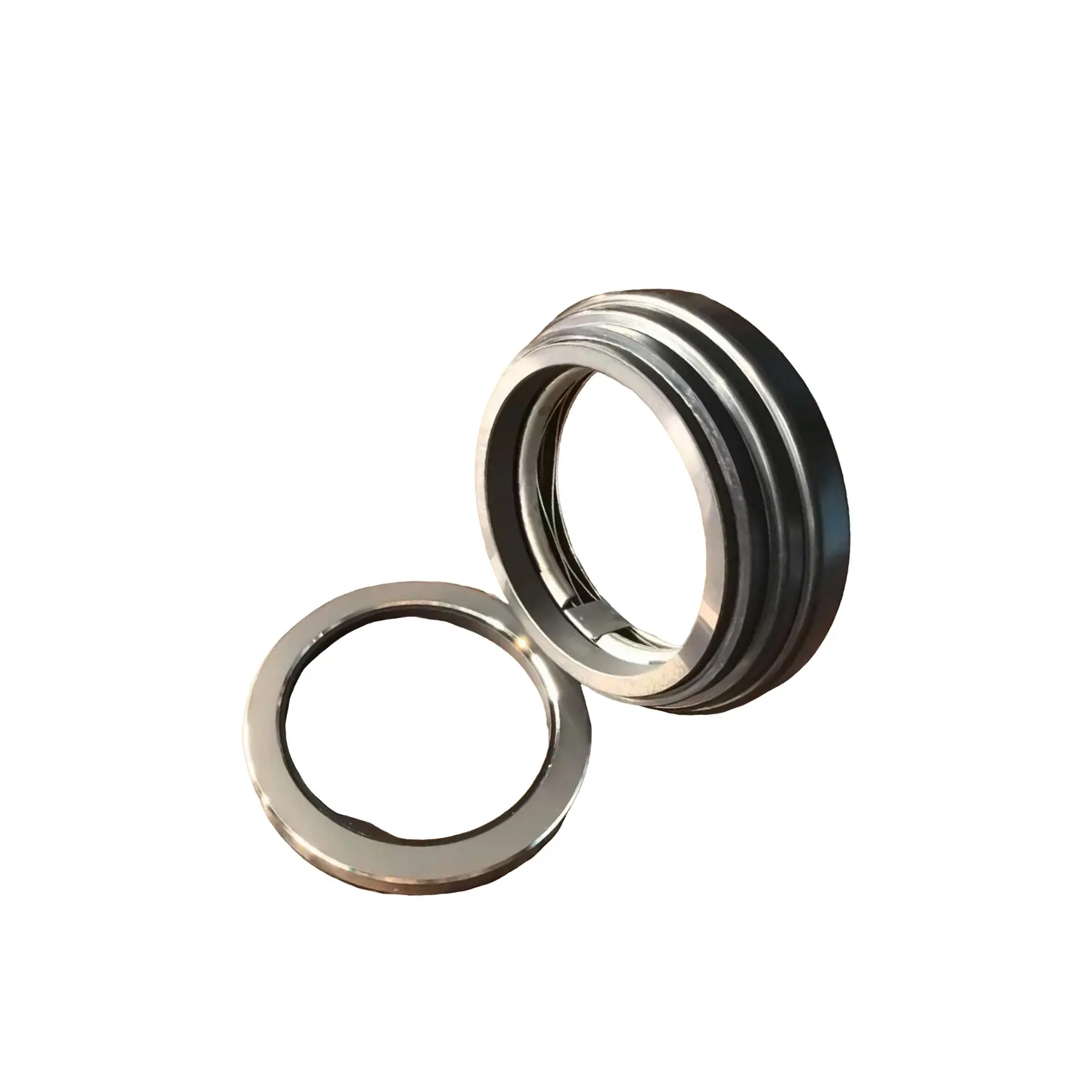

Counterface GCS mechanical seal for laundry machine grandimpianti
Application:
The GW GCS is a precision OEM mechanical seal specifically engineered for commercia washing machine applications to prevent water leakage around the rotating shaft. It ensures reliable performance by effectively preventing fluid leakage in demanding appliance operating cycles.
Product Detail
Equivalent Products
Material and Operating Range
Construction Materials:
• Rotary ring: Carbon
• Stationary ring: Stainless Steel (SUS)
• Secondary seal: VITON /EPDM/ NBR
• Spring and Metal Parts: SUS304/SUS316
* Custom configurations are available to meet specific requirements. Please contact us to discuss alternative materials or parameters.
Operating Range:
• Temperature: -30 ℃～120℃
• Pressure: ≤ 1.5 MPa
• Speed: ≤ 13m/s
Media Compatibility:
This seal is designed to handle media commonly encountered in washing machine applications, including water, detergent solutions, and fabric softeners. The materials selected ensure resistance to mild alkalis and additives found in laundry products.

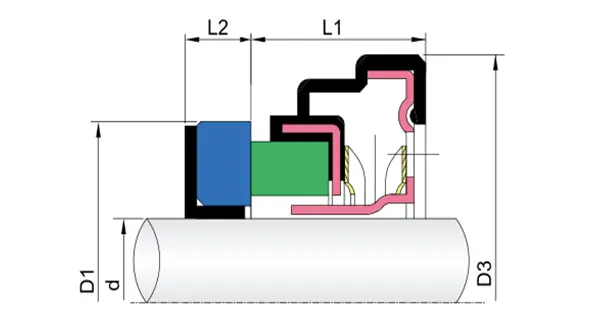

Installation Dimensions
Size d |
D1 |
D2 |
L1 |
L2 |
40 |
68.00 |
58.00 |
12.00 |
5.00 |
50 |
80.00 |
70.00 |
13.00 |
5.00 |
58 |
88.00 |
75.00 |
18.00 |
7.00 |
90 |
130.00 |
112.00 |
20.00 |
8.50 |
100 |
140.00 |
122.00 |
20.00 |
7.00 |
