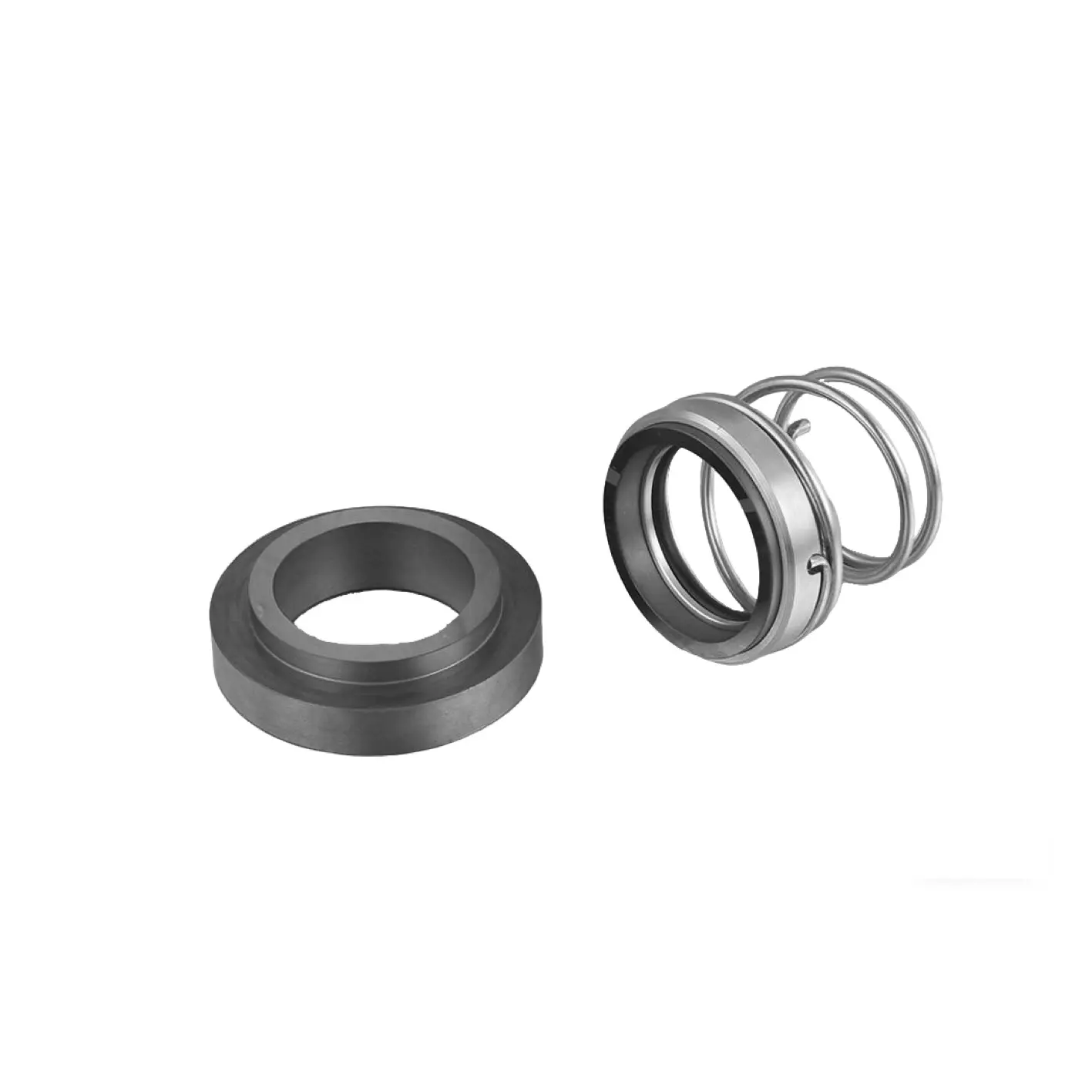

Centrifugal Pump Seal for Food Application APV W Series
This robust OEM mechanical seal is engineered as a direct replacement for APV centrifugal pumps, ensuring dependable performance in critical hygienic processing applications. It is particularly well-suited for:
• Dairy and liquid food processing lines
• Beverage and brewery transfer systems
• Sanitary fluid handling applications
• CIP (Clean-in-Place) and SIP (Steam-in-Place) processes
• Pharmaceutical and bio-processing equipment
Product Detail
Suitable for handling a variety of media including dairy products, beverages, CIP fluids, and mild chemical solutions, this mechanical seal offers excellent wear resistance and thermal stability. Its design ensures compliance with sanitary standards, making it a dependable choice for applications requiring frequent washdowns and steam sterilization.
Compatibility & Equivalents
• AESseal®: T0WU
• Sterling®: SW
• Flowserve (Pac. seal) ®: AWS
All listed equivalents are interchangeable with the GW 160, offering the same dimensional fit and operational performance.
Material and Operating Range
Materials of Construction:
• Rotary Ring: Carbon / Silicon Carbide (SiC)
• Stationary Ring: Silicon Carbide (SiC)
• Secondary Seals: VITON or EPDM
• Metallic Parts: SUS304 / SUS316 Stainless Steel
• Custom material configurations are available upon request.
l
Operating Parameters:
• Temperature Range: -20°C to +180°C
• Pressure: Up to 1.6 MPa
• Applicable Media: Water, steam, dairy products, juice, beer, syrups, cleaning solutions, and other non-abrasive process fluids.

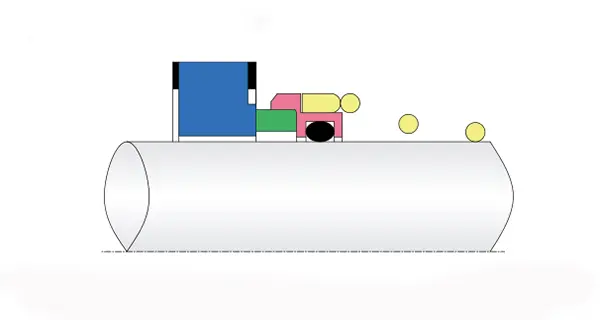

Installation Dimensions
description2
