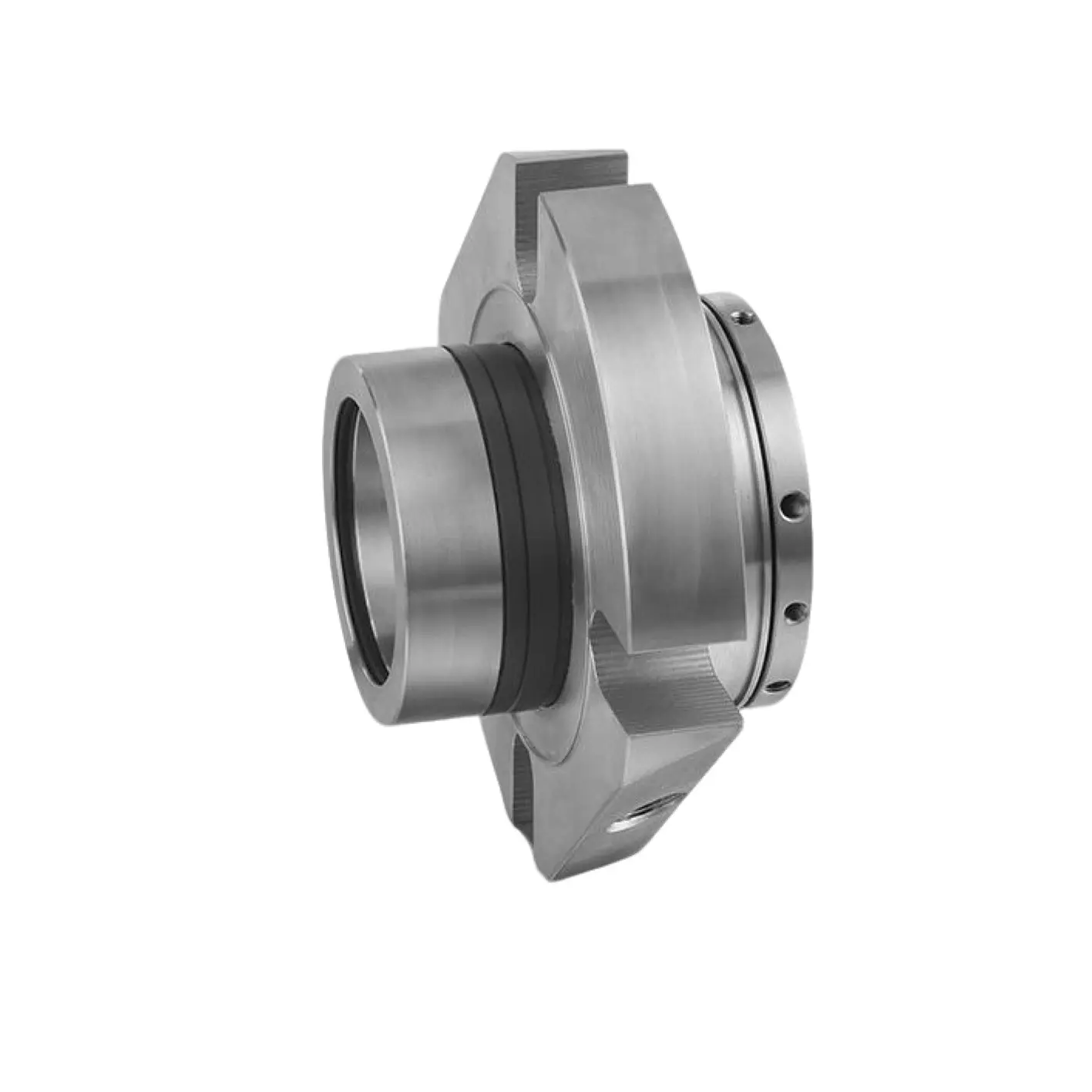

CARTEX Single Cartridge Mechanical Seal
This robust single cartridge mechanical seal is designed as a direct performance replacement for the Eagle Burgmann Cartex-SN. Engineered to meet the reliability requirements of API 610 and API 682 standards，its hydraulically balanced design ensures optimal performance in a wide range of industrial applications, providing reliable sealing with minimal maintenance. Ideal for use in:
• Chemical and general industrial pump services
• Applications with crystallizing or particle-containing media
• Water treatment and fluid handling systems
• Pharmaceutical and food processing equipment
Product Detail
This seal is specifically engineered to provide OEM-equivalent performance to the Eagle Burgmann Cartex-SN model, offering reliable containment for various process fluids while enabling easy maintenance and reduced downtime.
*Important Safety Notice: Always verify equipment compatibility before installation. Use appropriate personal protective equipment when handling sealed components.
Equivalent Products
*Our GW CARTEX mechanical seal delivers performance equivalent to Eagle Burgmann Cartex-SN products, manufactured under ISO9001-certified processes to ensure consistent quality and reliability at competitive pricing. The design conforms to API 610 and API 682 guidelines, ensuring full compliance with international mechanical seal standards.
Material and Operating Range
Materials:
• Rotary ring: Carbon/SiC/TC
• Stationary ring: Carbon/SiC/TC
• O-ring: VITON/ EPDM/ Kalrez
• Spring and Metal Parts: SUS304/SUS316
*Custom material configurations and special dimensional adjustments are available based on specific application requirements.
Operating Range:
• Temperature: -40 ℃～220℃
• Pressure: ≤2 MPa
• Speed: ≤15m/s
Compatible Media:
Follow the original application scope of Cartex-SN seals
• Chemical process fluids and solvents
• Water, coolants, and mild industrial fluids
• Pharmaceutical intermediates
• Oils and lubricants

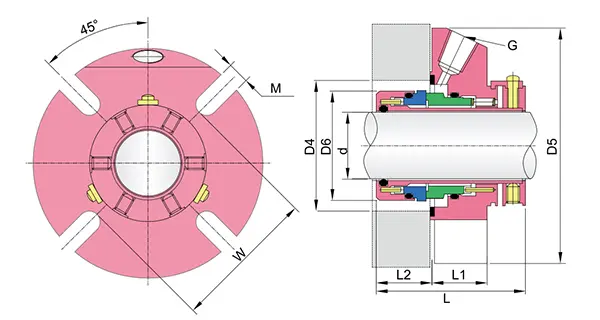

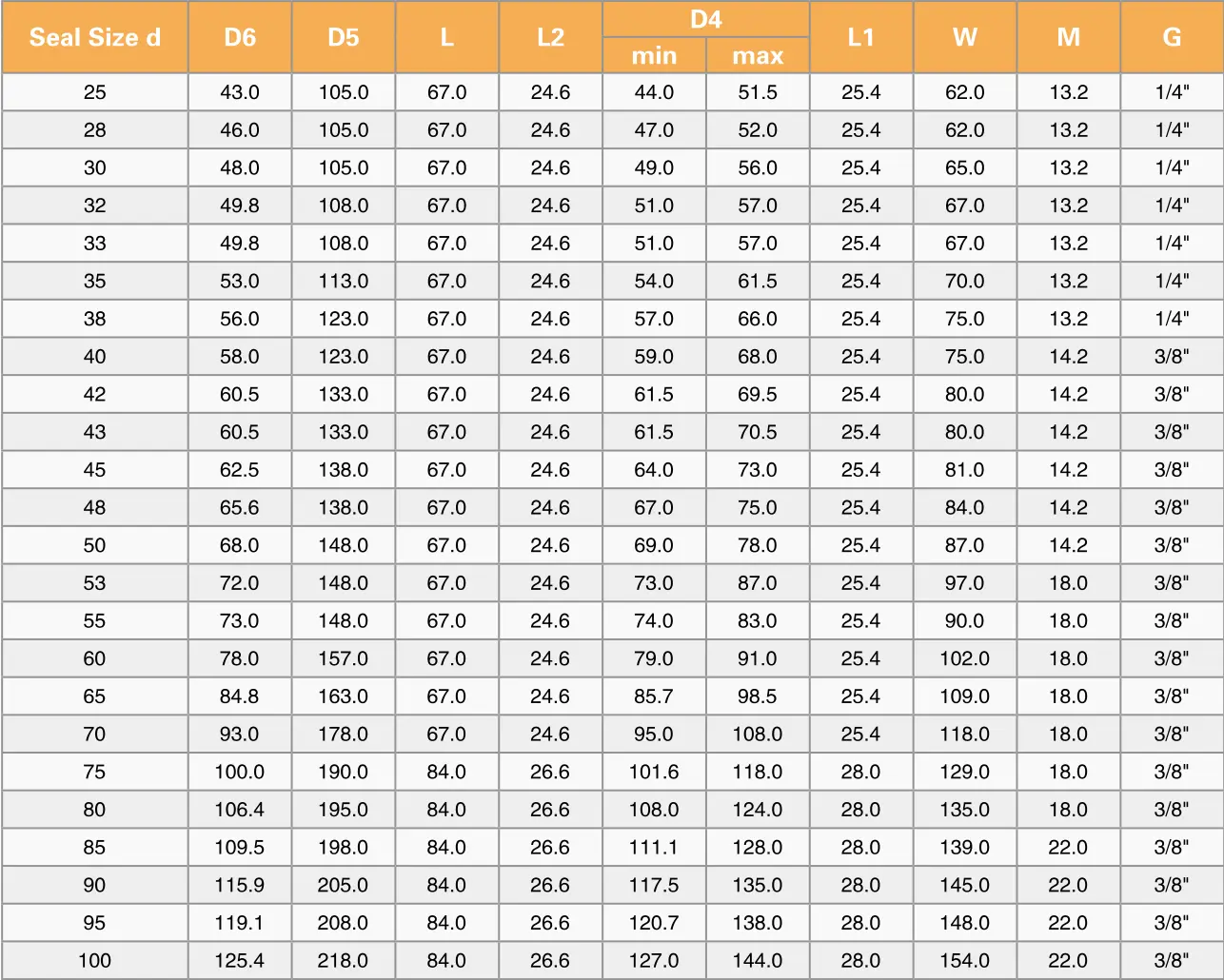

Installation Dimensions
description2
