Single-Spring Mechanical Seals
01

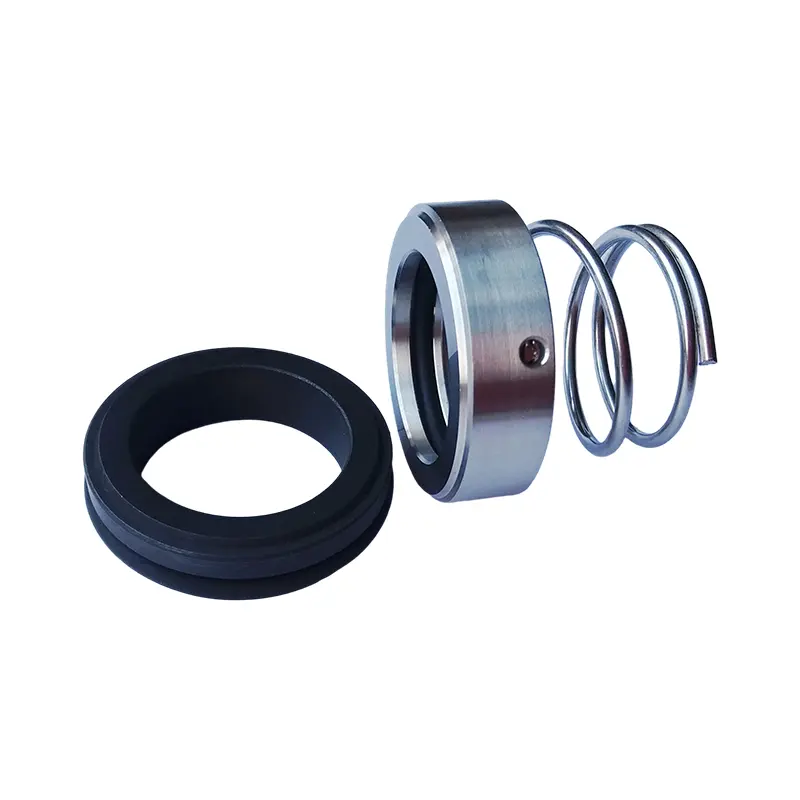

10mm-80mm Unbalanced Shaft Seal Replacement Vulcan 8B
Product Description
+
This component is resilient, compatible and easy to install. It is designed with an “O” ring mounted sealing surface in a narrow section stainless steel head. The sealing drive is provided by a conical spring which clamps the device shaft tightly at the drive end.
It is designed to suit pre-DIN European housing sizes.
It is designed to suit pre-DIN European housing sizes.
Equivalent Products
+
• AESseal®: N-T02
• Vulcan®: Type 8B
• EagleBurgmann®: M3/G13
• M.T.U.®: Europa 4
• Lidering®: 108B/PFL13
• U.S. Seal®: VGME-1/VGM -G13
• Flexaseal®: Type BB G13
• Flowserve®: CRO/39
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
• Vulcan®: Type 8B
• EagleBurgmann®: M3/G13
• M.T.U.®: Europa 4
• Lidering®: 108B/PFL13
• U.S. Seal®: VGME-1/VGM -G13
• Flexaseal®: Type BB G13
• Flowserve®: CRO/39
Our products can work as an alternative to the similar product of above brands with same quality but more affordable price. Our quality management follows ISO9001 standards to ensure excellent product performance.
Material and Operating Range
+
Material:
• Rotary ring: Carbon/SiC/TC
• Stationary ring: 99%Ceramic/SiC/TC
• O-ring: VITON/NBR/EPDM
• Spring and Metal Parts: SUS304/SUS316
* Customization for this part is supported, please contact us for changing parameters and materials.
Operating Range:
• Temperature: -30 ℃～200℃
• Pressure: Medium pressure ≤1.2MPa
• Speed: General Speed ≤20m/s
• Performance: corrosion
Mediums:
• Oil
• Water
• Amorphism acid
• Alkali
• Salt
• Other organic solvents

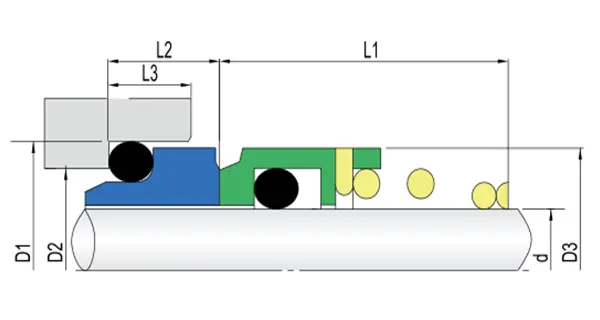

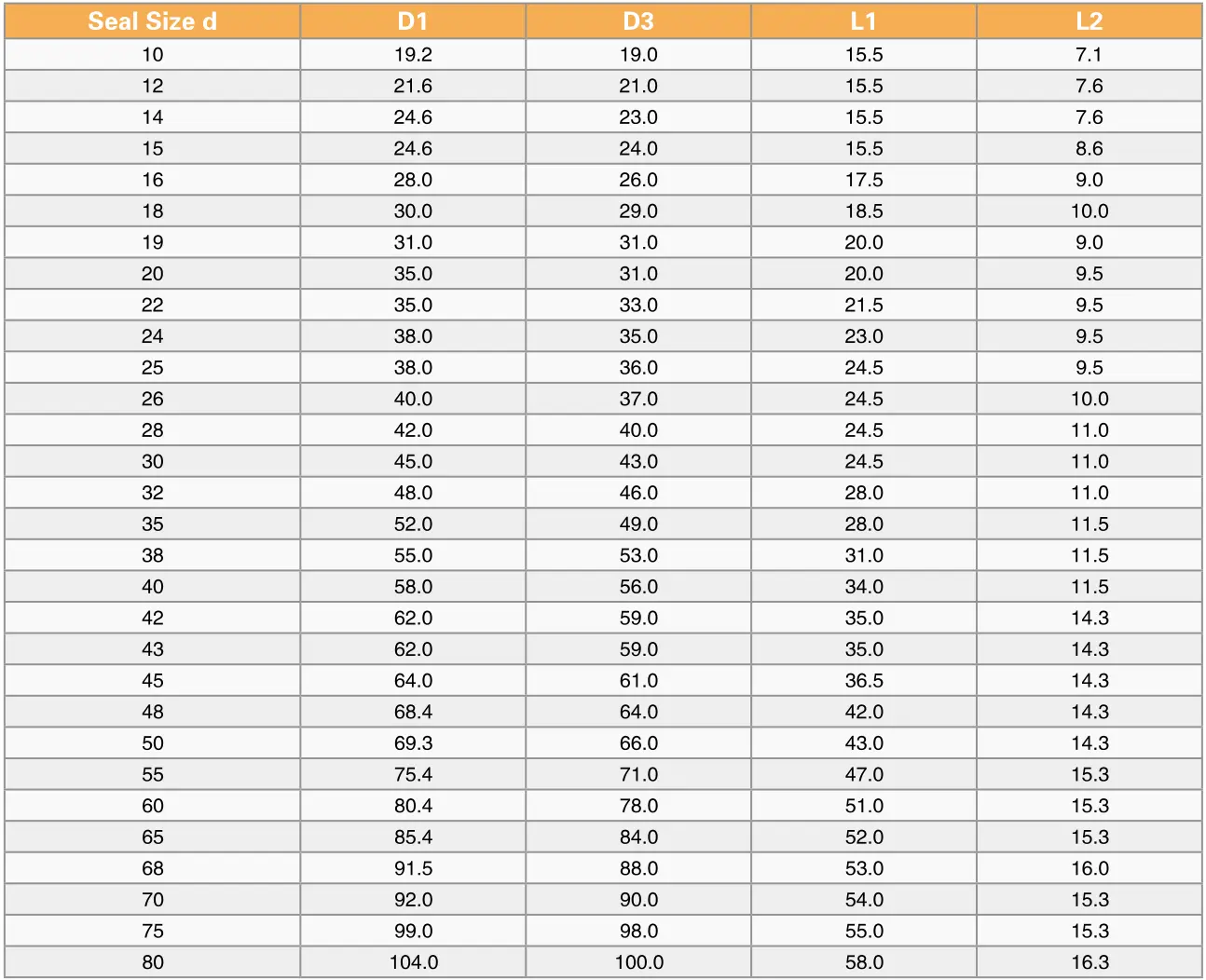

Installation Dimensions
+
description2
